XTS1250 Ride-on Tractor
  • Enhanced productivity and durability.
  • Built for efficient installation of numerous utilities.
  • Variety of intelligent attachments for versatility and performance.
REQUEST OFFER

Let us help you get the job done efficiently and effectively!

XTS1250 Ride-on Tractor
XTS1250 Ride-on Tractor - Image 2
XTS1250 Ride-on Tractor - Image 3
XTS1250 Ride-on Tractor - Image 4
XTS1250 Ride-on Tractor - Image 5
XTS1250 Ride-on Tractor - Image 6

Features & Benefits

1

Cut trenches confidently and efficiently with TrenchSense™ electronic control system, EcoIdle™ engine control system, Productivity Zone and Auto Plunge.

2

Continuously cut with a sod knife designed to minimize buildup and keep you running.

3

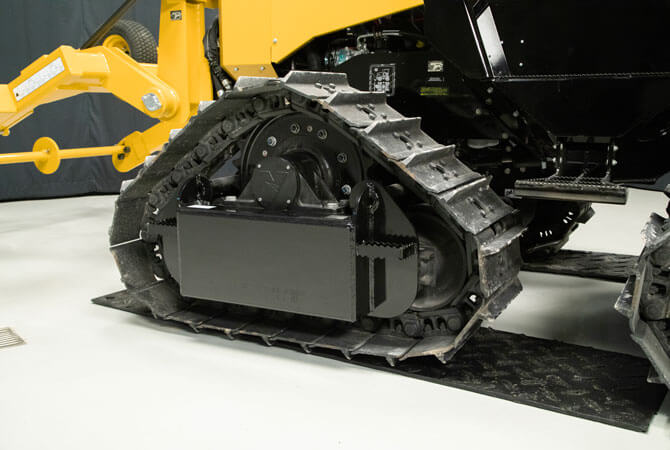

Four independent steel tracks can offer enhanced floatation and traction with four-wheel and crab steering options.

4

Work comfortably with a quiet ride, convenient single-side controls and an isolated, cushioned operator’s platform. Go year-round with an optional climate-controlled cab.

5

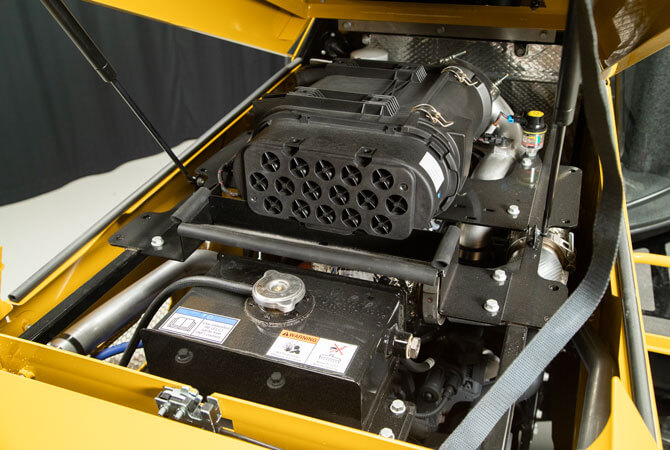

Take on difficult ground conditions with the efficient power of a 127-hp (95-kW) Deutz® TCD 3.6L diesel engine.

6

Stay in sync with your machine and optimize productivity by adding Vermeer telematics to this tractor.

Units:

SPECIFICATIONS

  • Weight (basic tractor, tracks)
    20435 lbs
  • Weight (cab, tracks)
    21385 lbs
  • Length (basic tractor, tracks)
    152 in
  • Length (cab, tracks)
    152 in
  • Width (basic tractor, tracks)
    100.5 in
  • Width (cab, tracks)
    100.5 in
  • Height (basic tractor, tracks)
    122 in
  • Height (cab, tracks)
    122 in
  • Ground Clearance (tracks)
    20.5 in
  • Roll Over Protection Structure (Closed Cab)
    40000 lbs
  • Roll Over Protection Structure (Open Cab)
    40000 lbs
  • Make and Model
    Deutz TCD3.6L
  • Maximum Torque
    369 ft-lb
  • Number of Cylinders
    4
  • Cooling Medium
    Liquid
  • Maximum Operating Angle (Fore/Aft)*
    40 deg
  • Maximum Operating Angle (Left/Right)*
    40 deg
  • Fuel Type
    Ultra-low sulfur diesel
  • Emissions rating
    Tier 4 Final (Stage V)
  • Guaranteed sound power (CE-rating)
    104 dB(A)
  • Noise Level at Operator's Ear
    75 dB(A)
  • Gross Horsepower (Maximum)
    127 hp
  • Displacement
    220 cu-in
  • Cooling Method
    Liquid
  • Aspiration
    Turbocharged
  • Max Fuel Consumption
    6.9 gph
  • Air Cleaner
    Donaldson Power Core
  • Maximum Engine RPM
    2300 rpm
  • Idle Speed
    1000 rpm
  • Rated RPM
    2300 rpm
  • Run Time at Full Load (hours)
    6.3
  • Make and Model
    Deutz TCD3.6L
  • Maximum Torque
    369 ft-lb
  • Number of Cylinders
    4
  • Cooling Medium
    Liquid
  • Maximum Operating Angle (Fore/Aft)*
    40 deg
  • Maximum Operating Angle (Left/Right)*
    40 deg
  • Fuel Type
    Ultra-low sulfur diesel
  • Emissions rating
    Tier 3 (Stage IIIA)
  • Gross Horsepower
    127 hp
  • Maximum Engine RPM
    2300 rpm
  • Idle Speed
    1000 rpm
  • Rated RPM
    2300 rpm
  • Net Horsepower
    124 hp
  • Displacement
    220 cu-in
  • Cooling Method
    Liquid
  • Aspiration
    Turbocharged
  • Max Fuel Consumption
    6.9 gph
  • Air Cleaner
    Donaldson Power Core
  • EPA Certification Family
    Tier 3 (Stage 3)
  • Run Time at Full Load (hours)
    6.3
  • Maximum forward transport speed (high)
    7.1 mph
  • Maximum reverse transport speed (high)
    7.1 mph
  • Maximum forward creep speed (low)
    342 ft/min
  • Maximum reverse creep speed (low)
    342 ft/min
  • Outside Turning Diameter (Steel Tracks, Front Steer Only)
    57.5 ft
  • Outside Turning Diameter (Steel Tracks, Front and Rear Steer Only)
    36.7 ft
  • Maximum forward creep speed (low)
    3.9 mph
  • Maximum reverse creep speed (low)
    3.9 mph
  • Track oscillation (center down)
    17.8
  • Track oscillation (center up)
    5.6
  • Front Axle Type
    Steerable planetary with hydraulic 100% differential lock
  • Rear Axle Type
    Steerable planetary with hydraulic 100% differential lock
  • Axle load rating (static, per axle)
    49458 lbs
  • Outside turning diameter (tracks, front steer only)
    57.5 ft
  • Outside turning diameter (tracks, front and rear steer)
    36.7 ft
  • Service Brake Type
    Hydrostatic
  • Parking Brake Type
    Spring-applied hydraulic release
  • Auxiliary pump capacity
    5510 gpm
  • Auxiliary pump relief
    2500 psi
  • Auxiliary Pump Flow at Maximum Engine RPM
    17.6 gpm
  • Attachment Pump gpm at Maximum Engine RPM
    61.8 gpm
  • Ground Drive Pump gpm at Maximum Engine RPM
    36.7 gpm
  • Hydraulic Return Filter Rating
    1000
  • Auxiliary Pump Relief Pressure
    2500 psi
  • System Voltage
    12 volt
  • Fuel Tank
    44 gal
  • Hydraulic Tank
    31.6 gal
  • Hydraulic System
    35.6 gal
  • Coolant
    4.2 gal
  • Fuel Tank
    44 gal
  • Engine Crankcase with Filter
    11.1 qt
  • Hydraulic Tank
    31.6 gal
  • Hydraulic System
    35.6 gal
  • Diesel Exhaust Fluid
    2.7 gal
  • Engine Cooling System (With Cab)
    4.2 gal
  • Engine Cooling System (Without Cab)
    4.9 gal
  • Sound Level (open air) at operator's ear
    83 dB(A)
  • Sound Level (In Cab) at Operator's Ear
    75 dB(A)
  • Guaranteed sound power (CE-rating)
    104 dB(A)
  • Power Port
    12 volt - 2
  • LED Lights
    Interior and exterior
  • Radio Standard
    Standard - 2 speakers
  • Display
    PV450
  • Remote Control
    Optional-limited functionality
