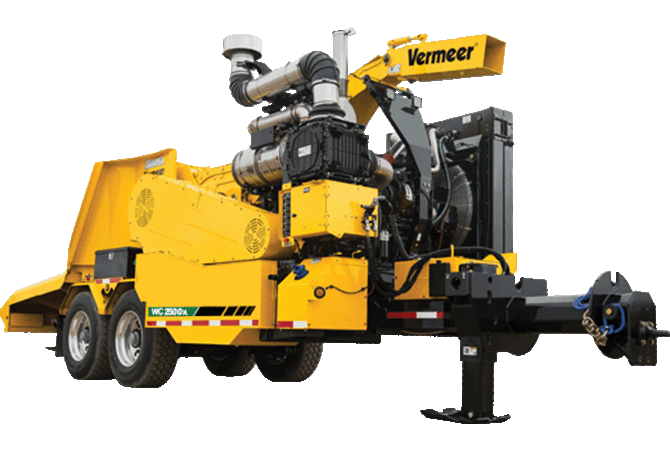

WC2500XL Whole Tree Chipper
  • Expand your revenue stream with more flexibility
  • Designed with the operator in mind
  • Focus more on productivity and less on maintenance
REQUEST OFFER

Let us help you get the job done efficiently and effectively!

Features & Benefits

1

SmartCrush technology allows you to increase down pressure when difficult material enters the cutting drum.

2

With the variable-speed dual-infeed conveyor chains, operators can concentrate on loading the machine, not pushing the material through.

3

A compact design to maneuver more easily in the woods, on tight jobsites and down narrow paths, but packs 600 hp (447 kW) of power to meet your production demands.

4

Self-adjusting hydraulic dry clutch provides consistent engagement, helping to prolong clutch life, minimize maintenance cost and optimize operator efficiency.

5

Easy knife change-out system to help reduce maintenance on the jobsite.

6

High-wear material flow areas of the machine — like the drum, discharge chute, cutter housing and infeed conveyor floor — are designed with replaceable bolt-in wear parts to help extend machine life.

7

VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real-time data to make smarter decisions, and help maximize productivity and profitability.

Units:

SPECIFICATIONS

  • Maximum Width (Transport)
    108 in
  • Weight
    38000 lbs
  • Tongue Weight
    7500 lbs
  • Sound Power
    121
  • Maximum Length (Operation)
    29.8 ft
  • Maximum Length - Transport
    29.8 ft
  • Maximum Height (Transport)
    10.9 ft
  • Make and Model
    Cummins QSX15 Tier 4 Final
  • Gross Horsepower (Maximum)
    600 hp
  • Torque (Max)
    2050 ft-lb
  • Fuel Tank Capacity
    200 gal
  • Max Fuel Consumption
    31 gph
  • Fuel Type
    Ultra-low sulfur diesel
  • Air Cleaner
    Two-stage direct flow
  • Oil Filter
    Spin-on
  • Recommended Oil
    CES 20078 or 20081
  • Oil Volume with Filter
    52 qt
  • Maximum Angle of Continuous Operation
    31 deg
  • Cooling Medium
    Liquid
  • Coolant Capacity (Engine and Radiator)
    23 gal
  • Alternator
    105
  • Fan
    Reversible
  • Clutch Type
    PT Tech electronically controlled dry
  • Clutch Drive Engagement
    Hydraulic
  • Number of Cylinders
    6
  • Material Capacity
    25 in
  • Thickness
    .5 in
  • Width
    34 in
  • Diameter
    36 in
  • Speed
    1169 rpm
  • Weight With Shaft
    3163 lbs
  • Safety Lock - Number of Positions
    4
  • Type
    Adjustable
  • Knife Thickness
    .6 in
  • Material
    A8 chipper steel
  • Useable Edges
    1
  • Knife Size
    17
  • Number of Bolts/Knife
    5
  • Replaceable Threaded Knife Block
    Hex nut
  • Fixture Method
    Bolt
  • Bedknife Size
    34" wide
  • Bedknife Thickness
    1.5 in
  • Bedknife Material
    Cold-formed low-carbon bar
  • Bedknife - Number of Useable Edges
    2
  • Number of Pockets
    4
  • Replaceable Wear Plates
    Yes
  • Number of Replaceable Wear Plates
    8
  • Number of Bearings
    2
  • Bore
    5.4 in
  • Type
    Pillow block
  • Manufacturer
    Dodge
  • Dynamic Capacity
    166000 lbs
  • Static Capacity
    236000 lbs
  • Belt Idler/Tensioner
    Slide engine
  • Belt Type
    12 rib 5 V
  • Chute Height
    132 in
  • Bottom Thickness
    .1 in
  • Top Thickness
    .2 in
  • Side Wall Thickness
    .2 in
  • Deflector Thickness
    .2 in
  • Rotation Type
    Hydraulic
  • Rotational Lock
    Hydraulic
  • Bottom Replaceable Wear Plate
    AR 400
  • Wear Plate Thickness
    .2 in
  • Side Deflector Angle
    14 deg
  • Up Deflector Angle
    22 deg
  • Down Deflector Angle
    14 deg
  • Tank capacity
    33 gal
  • Recommended Oil Type
    Hy-Power 68, 46, or 32
  • System Type
    Open-center
  • Filtration Method
    Intake suction screens and return filter
  • Pump Flow at Maximum RPM
    16 gpm
  • System relief pressure
    4000 psi
  • Auto Reverse PSI
    3750 psi
  • Flow Control
    Two - feed roller and infeed conveyor
  • Oil Cooler
    1
  • System Voltage
    24V
  • Battery
    Group 8D 1400 CCA (dual)
  • Standard Gauges
    Yes
  • Deluxe Gauges
    No
  • Switches
    Push button
  • Controller
    Danfoss MC-050
  • Display
    DP10
  • Shutdown System
    Yes
  • Radio Remote Control
    Yes
  • Frame Description
    10" x 4" x .375" wall rectangular tubing
  • Toolbox Description
    Lockable
  • Tongue Description
    Fixed with skidder grab
  • Tongue Extension
    None
  • Hitch Type
    Pintle
  • Fender Description
    Jeep style (steel)
  • Axle/Suspension
    Tandem axles
  • Type
    Leaf spring
  • Manufacturer
    Dexter
  • Capacity
    18740
  • Tires
    385/65R22.5 Super Single
  • Brake Type
    Air
  • Trailer Light Type
    LED
  • Grapple Handle
    30" wide
  • Wheels
    22.5 x 14 aluminum
  • Special Paint
    Yes
  • Extended Warranty
    Yes
  • Preventative Maintenance
    Yes
  • Adjustable Height Discharge Chute
    No
  • Feed Table Width
    98 in
  • Feed Table Length - Option One
    10 ft
  • Feed Conveyor Type
    Dual independent chain
  • Material Construction
    .50" thick
  • Infeed Slope
    6 deg
  • Number of Infeed Chains
    2
  • Infeed Roller Width
    34 in
  • Maximum Feed Height
    27 in
  • Infeed Roller Weight
    575 lbs
  • Infeed Roller Diameter
    28 in
  • Tooth Design
    Straight knives
  • Drive Motor
    WS-series
  • Drive Planetary
    Auburn Model 9
  • Feed Roller Down Pressure
    1530
  • Feed Roller Orientation
    Horizontal
  • Number of Feed Rollers
    One upper, one conveyor
  • Number of Knives
    12
  • Drive Displacement
    6.9 cu-in
  • Drive Manufacturer
    White
  • Feed Roller Distance to Drum
    1 in
  • Feed Roller Speed
    98 ft/min
