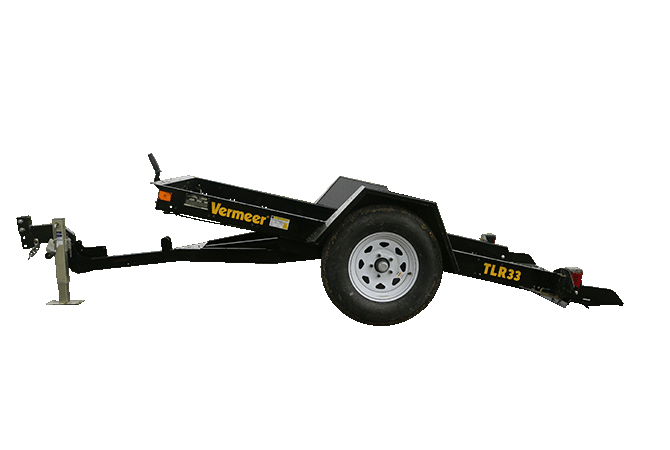

TLR33 Trailer
REQUEST OFFER
Let us help you get the job done efficiently and effectively!
Features & Benefits
1
There are seven holes available to position chocks as needed for different sized machines.
2

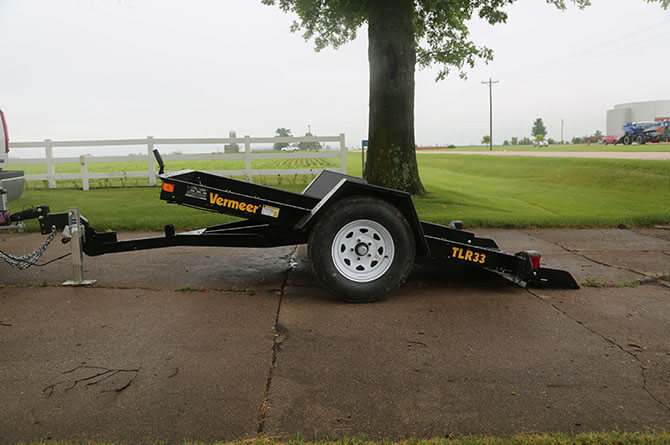

The tilt-bed design helps make it more convenient to load and unload without the need for ramps.
3
Bolted on safety chains helps gives peace of mind when traveling on the road with equipment loaded on the trailer.
4

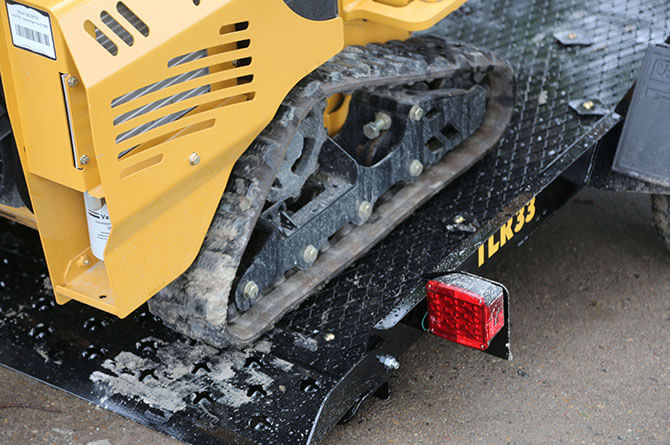

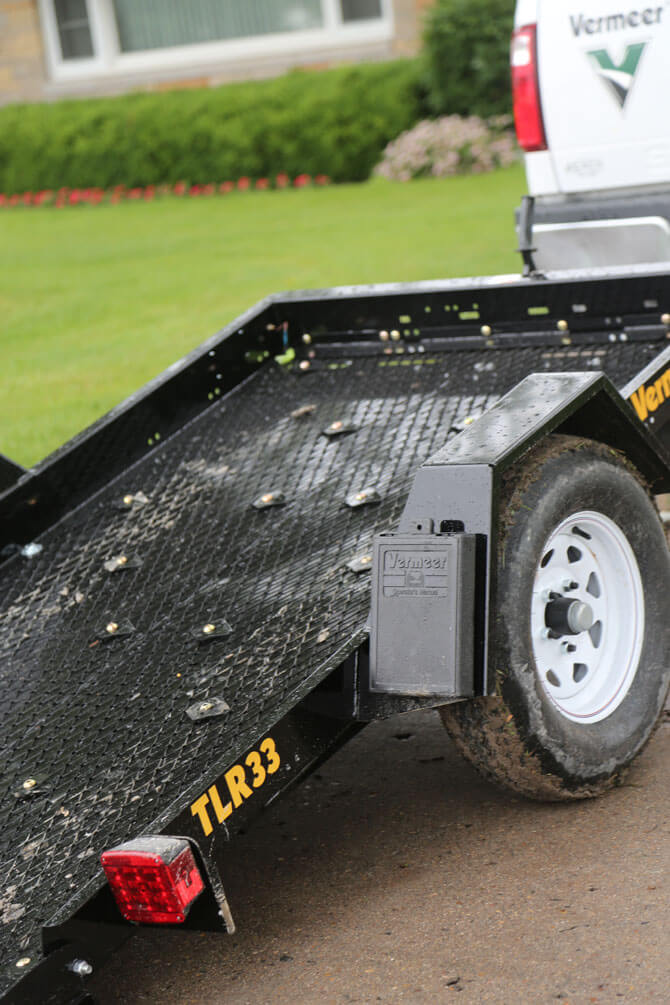

A replaceable expanded metal floor is bolted to the trailer deck and provides traction for loading and unloading of equipment.
5
The TLR33 trailer comes with the option to include electric brakes for better towing control.
6
The TLR33 trailer comes with several different tie-down system options to meet your transporting needs.
Units:
SPECIFICATIONS
-
Overall Length141 in
-
Width71.5 in
-
Tie Down Kits (Optional)Chains, hooks, binder or wheel chocks: binderless tie down
-
BrakesOptional
-
Hitch Type2" (5.1 cm) ball
-
Tongue Height19.5 in
-
Floor Bed Width50 in
-
Floor Bed Height12 in
-
Floor Bed Length96 in
-
Rear Width Between Fenders52 in
-
Maximum Gross Vehicle Weight Rating2950 lbs
-
Maximum Gross Axle Weight Rating3160 lbs
-
Weight771 lbs
-
Tongue Weight50 lbs
-
TiresST205/75R14
-
Number of Axles1
-
Tail Lights with Plate HolderYes
-
FendersYes
-
Rims14 in x 5.5 in (35.6 cm x 14.0 cm) 5-bolt silver
-
Safety ChainDual, zinc-plated with hooks
-
Tongue Jack2000 lbs
