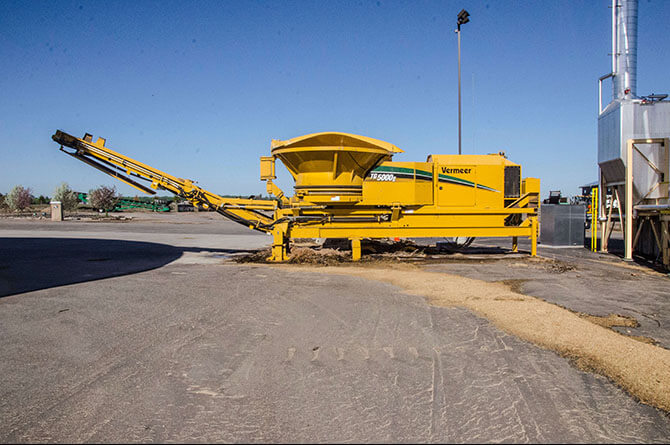

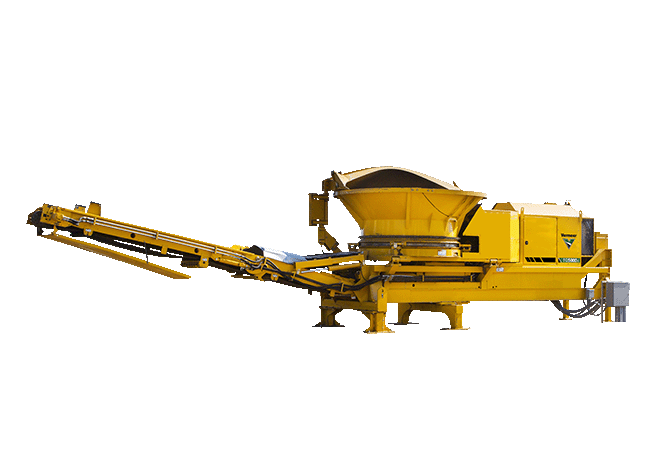

TG5000E Tub Grinder

Efficiency in a stationary electric tub grinder
Robust build quality for confident longevity
Equipped with Vermeer innovations to help protect your investment and optimize efficiency

REQUEST OFFER

Let us help you get the job done efficiently and effectively!

Features & Benefits

1

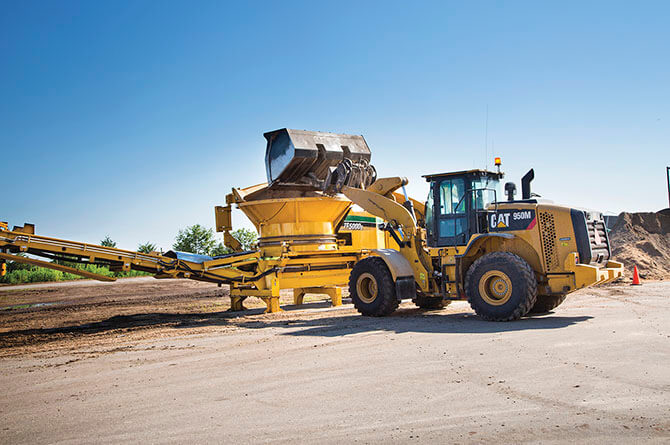

A large tub opening allows for loading of large amounts of material to improve productivity.

2

The grinder features a 500-hp (373-kW) WEG® totally-enclosed, fan-cooled electric motor for the mill, a 60-hp (44.7-kW) motor for the hydraulic pump, and a 2-hp (1.5-kW) motor for the hydraulic cooling fan.

3

The Series III duplex drum offers proven cutting performance, and reversible hammers and tips nearly double the wear life of single-sided designs and simplify daily maintenance.

4

Monitor real-time performance and data via the on-rig display or remote control.

5

A reversing Flexxaire® cooling fan adjusts the pitch of the blades based on temperature, which can increase power and improve processing efficiency.

6

The patented Thrown Object Restraint System (TORS) reduces the amount and distance of thrown objects and has a smooth underside for better material flow.

7

The optional Damage Defense system reduces the likelihood of certain metal contaminants from entering the hammermill by reacting to the initial contact with the contaminant and reversing the feed system to allow removal of the contaminant.

Units: Metric Imperial

SPECIFICATIONS

GENERAL DIMENSIONS AND WEIGHTS - NON LOADER

Weight - Engine Option One

42080 lbs 19087.2 kg
Maximum Length - Transport

29.3 ft 8.9 m
Maximum Length - Conveyor Unfolded

51.3 ft 15.6 m
Maximum Width (Transport)

8.4 ft 2.5 m
Front Mount Pad Weight (Operation)

14800 lbs 6713.2 kg
Rear Mount Pad Weight (Operation)

30650 lbs 13902.6 kg
Maximum Height (Transport)

11.8 ft 3.6 m

MILL MOTOR

Make and Model

WEG W22 WEG W22
Gross Horsepower (Maximum)

500 hp 372.8 kw
Cooling Medium

Air Air
Torque (Max)

1451 ft-lb 1967.3 Nm
Torque Limiter

PT Tech - Continuously engaged, friction type

ELECTRIC FAN MOTOR OPTION 1 - 460 V / 60 HZ

Manufacturer

Weg W22 Weg W22
Frame

NEMA 145T NEMA 145T
Horsepower

2 hp 1.5 kw
Voltage

460 460
Frequency

60 60
Phase

3 3
Rated Speed

1750 rpm 1750 rpm
Enclosure

TEFC TEFC
Full Load Amps

2.61 2.61
Locked Rotor Amps

19.6 19.6
Service Factor

1.25 1.25
Duty Cycle

S1 S1
NEMA Design

B B
Insulation Class

F F
Full Load Torque

5.9 ft-lb 8 Nm
Locked Rotor (%)

240% 240%
Break Down

300% 300%
Ambient Temperature

40 c 1352 f
Nominal Efficiency

86.5 (NEMA Premium Efficiency) 86.5 (NEMA Premium Efficiency)
Power Factor

0.84 0.84
Approximate Weight

51 lbs 23.1 kg
Added Items

Terminal Block, NEMA C-Face Mount Terminal Block, NEMA C-Face Mount
Drive Type

Direct Direct

ELECTRIC HYDRAULIC MOTOR OPTION 1 - 460 V / 60 HZ

Manufacturer

Weg W22 Weg W22
Frame

NEMA 364/5TS NEMA 364/5TS
Horsepower

60 hp 44.7 kw
Voltage

460 460
Frequency

60 60
Phase

3 3
Rated Speed

1775 rpm 1775 rpm
Enclosure

TEFC TEFC
Full Load Amps

68.3 68.3
Locked Rotor Amps

451 451
Service Factor

1.25 1.25
Duty Cycle

S1 S1
NEMA Design

B B
Insulation Class

F F
Full Load Torque

175 ft-lb 237.3 Nm
Locked Rotor (%)

240% 240%
Break Down

260% 260%
Ambient Temperature

40 c 1352 f
Nominal Efficiency

95 (NEMA Premium Efficiency) 95 (NEMA Premium Efficiency)
Power Factor

0.87 0.87
Approximate Weight

869 lbs 394.2 kg
Added Items

Terminal Block, NEMA C-Face Mount, Short Shaft
Drive Type

Direct Direct

ELECTRIC MILL MOTOR OPTION 1 - 460 V / 60 HZ (SOFT START)

Manufacturer

Weg W22 Weg W22
Frame

NEMA L447/9T NEMA L447/9T
Horsepower

500 hp 372.8 kw
Voltage

460 460
Frequency

60 60
Phase

3 3
Rated Speed

1785 rpm 1785 rpm
Enclosure

TEFC TEFC
Full Load Amps

561 561
Locked Rotor Amps

4040 4040
Service Factor

1 1
Duty Cycle

S1 S1
NEMA Design

B B
Insulation Class

F F
Full Load Torque

1451 ft-lb 1967.3 Nm
Locked Rotor (%)

250% 250%
Break Down

260% 260%
Ambient Temperature

40 c 1352 f
Nominal Efficiency

96.2 (NEMA Premium Efficiency) 96.2 (NEMA Premium Efficiency)
Power Factor

0.86 0.86
Approximate Weight

3462 lbs 1570.3 kg
Added Items

Terminal blocks; thermostats; inverter duty; D.E. ground brush & insulated N.D.E bearing
Drive Type

Direct Direct

ELECTRIC MILL MOTOR OPTION 1 - 460 V / 60 HZ (VFD)

Manufacturer

Weg W22 Weg W22
Frame

NEMA 586/7T NEMA 586/7T
Horsepower

500 hp 372.8 kw
Voltage

460 460
Frequency

60 60
Phase

3 3
Rated Speed

1790 rpm 1790 rpm
Enclosure

TEFC TEFC
Full Load Amps

567 567
Locked Rotor Amps

4026 4026
Service Factor

1.15 1.15
Duty Cycle

S1 S1
NEMA Design

N N
Insulation Class

F F
Full Load Torque

1454 ft-lb 1971.4 Nm
Locked Rotor (%)

260% 260%
Break Down

260% 260%
Ambient Temperature

40 c 1352 f
Nominal Efficiency

96.1 (NEMA Premium Efficiency) 96.1 (NEMA Premium Efficiency)
Power Factor

0.85 0.85
Approximate Weight

4041 lbs 1833 kg
Added Items

Terminal blocks; thermostats; inverter duty; D.E. ground brush & insulated N.D.E bearing
Drive Type

Direct Direct

ELECTRIC FAN MOTOR OPTION 2 - 380 V / 50 HZ

Manufacturer

Weg W22 Weg W22
Frame

IEC 90L IEC 90L
Horsepower

2 hp 1.5 kw
Voltage

380 380
Frequency

50 50
Phase

3 3
Rated Speed

1445 rpm 1445 rpm
Enclosure

TEFC TEFC
Full Load Amps

3.21 3.21
Locked Rotor Amps

23.8 23.8
Service Factor

1 1
Duty Cycle

S1 S1
NEMA Design

N N
Insulation Class

F F
Full Load Torque

7.3 ft-lb 9.9 Nm
Locked Rotor (%)

230% 230%
Break Down

300% 300%
Ambient Temperature

40 c 1352 f
Nominal Efficiency

85.6 85.6
Power Factor

0.83 0.83
Approximate Weight

51 lbs 23.1 kg
Added Items

Terminal Block, NEMA C Face Mount Terminal Block, NEMA C Face Mount
Drive Type

Direct Direct

ELECTRIC HYDRAULIC MOTOR OPTION 2 - 380 V / 50 HZ

Manufacturer

Weg W22 Weg W22
Frame

IEC 225S/M IEC 225S/M
Horsepower

60 hp 44.7 kw
Voltage

380 380
Frequency

50 50
Phase

3 3
Rated Speed

1475 rpm 1475 rpm
Enclosure

TEFC TEFC
Full Load Amps

83.9 83.9
Locked Rotor Amps

663 663
Service Factor

1 1
Duty Cycle

S1 S1
NEMA Design

N N
Insulation Class

F F
Full Load Torque

213 ft-lb 288.8 Nm
Locked Rotor (%)

250% 250%
Break Down

270% 270%
Ambient Temperature

40 c 1352 f
Nominal Efficiency

94.7 94.7
Power Factor

0.86 0.86
Approximate Weight

926 lbs 420 kg
Added Items

Terminal Block, NEMA C Face Mount Terminal Block, NEMA C Face Mount
Drive Type

Direct Direct

ELECTRIC MILL MOTOR OPTION 2 - 380 V / 50 HZ (SOFT START)

Manufacturer

Weg W22 Weg W22
Frame

IEC 355M/L IEC 355M/L
Horsepower

500 hp 372.8 kw
Voltage

380 380
Frequency

60 60
Phase

3 3
Rated Speed

1790 rpm 1790 rpm
Enclosure

TEFC TEFC
Full Load Amps

688 688
Locked Rotor Amps

5227 5227
Service Factor

1.15 1.15
Duty Cycle

S1 S1
NEMA Design

N N
Insulation Class

F F
Full Load Torque

1454 ft-lb 1971.4 Nm
Locked Rotor (%)

260% 260%
Break Down

260% 260%
Ambient Temperature

40 c 1352 f
Nominal Efficiency

96.1 96.1
Power Factor

0.85 0.85
Approximate Weight

4041 lbs 1833 kg
Added Items

Terminal Blocks; thermostats, inverter duty; D.E. ground brush & insulated N.D.E. bearing
Drive Type

Direct Direct

ELECTRICAL PANEL (SOFT START)

Width

72 in 182.9 cm
Depth

27 in 68.6 cm
Weight

1800 lbs 816.5 kg
Height

87 in 221 cm

ELECTRICAL PANEL (VFD)

Width

119 in 302.3 cm
Depth

28 in 71.1 cm
Weight

3020 lbs 1369.8 kg
Height

93 in 236.2 cm

FEED SYSTEM

Tub Agitators

4 4
Drive Type

Continuous sprocket Continuous sprocket
Tub Table Thickness

.4 in 1 cm
Millbox Opening

24.2" x 47.9" (61.4 cm x 121.5 cm) 24.2" x 47.9" (61.4 cm x 121.5 cm)
Tub Table Type

T1 Steel T1 Steel
Wall Type

T1 Steel T1 Steel
Loading Height

10.6 ft 3.2 m
Tub Roller Quantity

8 carrier, 8 guide (16 total) 8 carrier, 8 guide (16 total)
Tub Speed

10 rpm 10 rpm
Drive Chain

120H roller chain 120H roller chain
Drive Tensioner

Standard Standard
Wall Thickness

.3 in .6 cm
Depth of Tub

5 ft 1.5 m
Inside Flare Diameter - At Base of Tub

8.1 ft 2.5 m
Inside Flare Diameter - At Tub Opening

12.3 ft 3.7 m
Drive Motor

Open loop Open loop
Table Tilt Degrees

91 deg 91 deg
Inside Diameter of Tub

8 ft 2.4 m
Tub Capacity

11.3 cu yd 8.6 cu m

SAFETY SYSTEM

Falling Object Protection at Control Station

Overhead and side protection Overhead and side protection
Thrown Object Restraint System

Pivoting tub cover assembly Pivoting tub cover assembly
Tub Cover Positions

2 2
Rotor Deflector

Standard Standard
Tub Cover Description

Hydraulically activated Hydraulically activated

DUPLEX DRUM

Number of Hammers

8 8
Number of Wipers

2 2
Drum Skin Thickness

1.8 in 4.4 cm
Drum Speed

1785 rpm 1785 rpm
Bearing Type

spherical roller spherical roller
Drum Cutting Width

46 in 116.8 cm
Drum Diameter

22.5 in 57.2 cm
Tip Diameter

28.6 in 72.6 cm
Number of Cutters

16 16
Center Retention Pin Dimensions

2" (5.1 cm) 2" (5.1 cm)
Cutter Block Types

Block style single bolt wide 3" x 3.5" (7.6 cm x 8.9 cm) wide; 2-bolt 2" x 3" (5.1 cm x 7. 6 cm) narrow

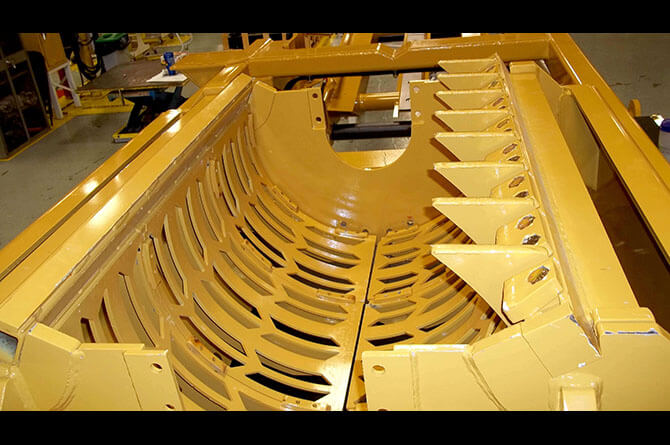

SCREENS

Breaker Bar Dimensions

2.5" x 3" (6.4 cm x 7.6 cm) 2.5" x 3" (6.4 cm x 7.6 cm)
Distance - Screen to Millbox Wall

11 in 27.9 cm
Screen Dimensions

49.5" x 28.5" x 14.9" (126 cm x 72.4 cm x 37.8 cm)
Screen Weight

400 lbs 181.4 kg
Breaker Bar Type

T1 steel, replaceable T1 steel, replaceable
Screen Type

Fabricated from abrasion resistant steel (qty 2)
Screen Area

2714 sq in 17509.6 sq cm

DISCHARGE SYSTEM - SINGLE BELT DESIGN

Length

24 ft 7.3 m
Belt Speed

640 ft/min 195.1 m/min
Load Height

14 ft 4.3 m
Drive Motor

Geroler Geroler
Idler Roller Diameter

8 in 20.3 cm
Return Roller Quantity

5 standard and 1 vibrating roller 5 standard and 1 vibrating roller
Magnetic Drive Roller Diameter

12.8 in 32.5 cm
Standard Drive Roller Diameter

12.8 in 32.5 cm
Splice

Flexco R2 stainless steel Flexco R2 stainless steel
Width

36 in 91.4 cm
Belt Design

One piece, 330# with V-cleat One piece, 330# with V-cleat

HYDRAULIC SYSTEM

Filtration Method

In-tank return filters (qty 2) In-tank return filters (qty 2)
Number of Coolers

1 1
Recommended Oil

Hy-Power 68 Hy-Power 68
Tank capacity

95 gal 95 gal

IMPLEMENT HYDRAULICS

Pump Type

Gear Gear
Pump Flow at Maximum RPM

19.2 gpm 72.7 L/min
System Type

Open loop Open loop
System relief pressure

2800 psi 193.1 bar

TUB DRIVE HYDRAULICS

Pump Type

Gear Gear
Pump Flow at Maximum RPM

19.2 gpm 72.7 L/min
System Type

Open loop Open loop
System relief pressure

2800 psi 193.1 bar

ELECTRICAL SYSTEM

System Voltage

24 VDC 24 VDC
System Protection

Fused Fused

CONTROL STATION

Operational Faults

Yes Yes
Switches

Moisture proof, toggle switch Moisture proof, toggle switch
Gauges

Auxiliary hydraulic system pressure, tub rotation hydraulic system pressure, conveyor hydraulic system pressure
Display Type

Analog hydraulic gauges, LCD multifunction
Machine Information

Yes Yes
