- Designed specifically for 6-ft to 12-ft (1.8-m to 3.7-m) rock trenching jobs, the T855III is a great choice for utility, water and sewer installation
- Match the optional sectionalized boom to the job for optimal results, minimal tooth wear and reduced vibrations
- Vermeer SmartTEC electronic control system monitors real-time machine performance

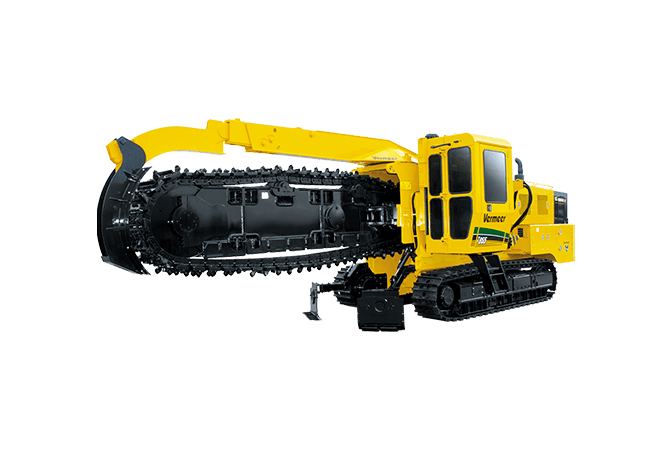

T855III Pipeline Trencher
REQUEST OFFER
Let us help you get the job done efficiently and effectively!
Features & Benefits
1
The elevating cab allows optimal visibility and added comfort with the air ride seat.
2
The sealed cab has self-contained heating and air conditioning with sound attenuating foam.
3
It is also a rollover protective module (ROPM) and provides falling object protection (FOPS).
4
SmartTEC performance monitoring assists operators with adjustments to machine controls to help improve efficiency and tracks the operational performance of the machine on a consistent platform across all machine models.
Units:
SPECIFICATIONS
-
Approach Angle20 deg
-
Height Range131 " - 143 " (332.7 cm - 363.2 cm) (143 "/363.2 cm represents the height with Rockwheel attachment)
-
Weight Range65,500 lbs to 94,000 lbs (29,483 kg - 42,637 kg)
-
Width Ranges101 " - 104 " (256.5 cm - 264.2 cm)
-
Length with 40" (101.6 cm) End Idler and 8 ft (2.44 m) Boom35.3 ft
-
Length with 40" (101.6 cm) End Idler and 10 ft (3.05 m) Boom37.8 ft
-
Length with 40" (101.6 cm) End Idler and 12 ft (3.66 m) Boom40.3 ft
-
Length with 40" (101.6 cm) End Idler and 6 ft (1.83 m) Boom32.8 ft
-
Make and ModelCaterpillar C9 ACERT Tier 3
-
Gross Horsepower350 hp
-
Rated Engine RPM2200
-
Number of Cylinders6
-
Fuel Tank Capacity172 gal
-
Operating Range9.4 hours
-
Fuel Consumption at Full Load18.3 gph
-
Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles)40 deg
-
Air CleanerDry-type exhaust aspirated
-
AspirationTurbocharged and air-to-air aftercooled
-
Cooling MediumLiquid
-
Electrical System24 Volt DC
-
Oil FilterFull flow
-
Make and ModelCaterpillar C9 ACERT Tier 4 Final
-
Gross Horsepower350 hp
-
Rated Engine RPM2200
-
Number of Cylinders6
-
Fuel Tank Capacity172 gal
-
Operating Range9.4 hours
-
Fuel Consumption at Full Load18.3 gph
-
Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles)40 deg
-
Air CleanerDry-type with precleaner
-
AspirationTurbocharged and air-to-air aftercooled
-
Cooling MediumLiquid
-
Electrical System24 Volt DC
-
Oil FilterFull flow
-
Track Length147 in
-
Tilt Track AvailableYes
-
Auto Self LevelYes
-
Service BrakesHydrostatic
-
Tilt Track Max Angle+/- 9 degrees or +/- 12 inches
-
Track Pad TypeSingle, double, or triple grouser
-
Track SizeD6
-
Parking and Emergency BrakeSpring applied, hydraulic release, wet disc brake
-
Track Drive TypetDual path hydrosatic with planetary transmission
-
Track Pad Width Ranges20 " or 24 " (50.8 or 61 cm)
-
Maximum Ground Speed - High213 ft/min
-
Maximum Ground Speed - Low106.3 ft/min
-
Ground Pressure Minimum11 psi
-
Ground Pressure Maximum16.4 psi
-
Conveyor Shift AvailableYes
-
Discharge DirectionRight or left
-
Belt Width30 in
-
Conveyor Belt StyleCleat or finger type
-
Conveyor StyleCurved
-
Conveyor Belt Speed Range0 - 917 fpm (0-279.5 mpm)
-
Conveyor Shift Distance Range1.5 " and 61.5 " (3.8 cm and 156.2 cm)
-
Discharge Height Range72.5 " (184.2 cm)
-
Conveyor Length96 " or 156 " (243.8 cm or 396.2 cm)
-
TrencherYes
-
Terrain LevelerYes
-
RockwheelYes
-
Bucket WheelNo
-
Air Conditioner/HeaterYes
-
Air Suspension SeatNo
-
ElevatingYes
-
Pressurized/Filtered AirYes
-
Rollover Protective Structure (ROPM)Yes
-
AM/FM Stereo with Weather BandYes
-
CabYes
-
Control SystemTEC Plus
-
Pressure Setting2500 psi
-
Oil Tank Capacity145 gal
-
Pump Flow at Maximum RPM30.2 gpm
-
Pump TypePressure and flow compensated (load sensing)
-
Oil TypeVermeer HyPower 68 or Vermeer HyPower 100
