- Dual Cat® engines deliver 1,200 hp (895 kW) to the machine
- Smooth, quiet ride for the operator in the typically harsh environment of a mining operation

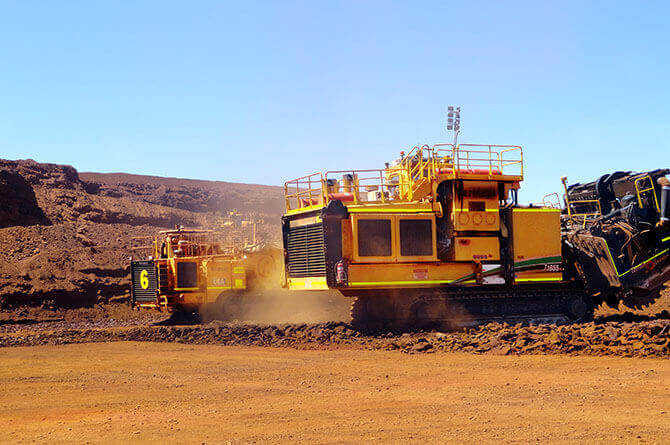

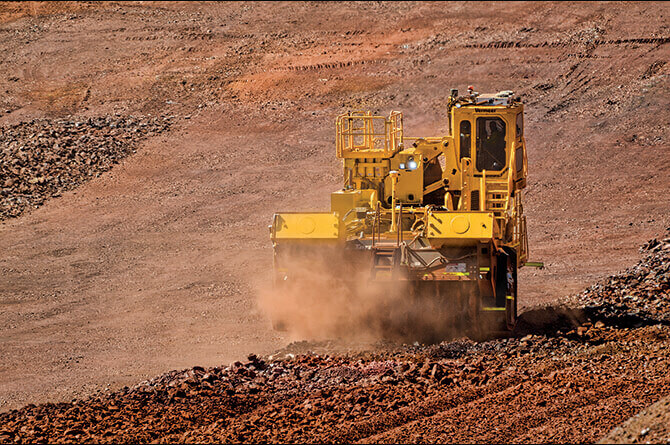

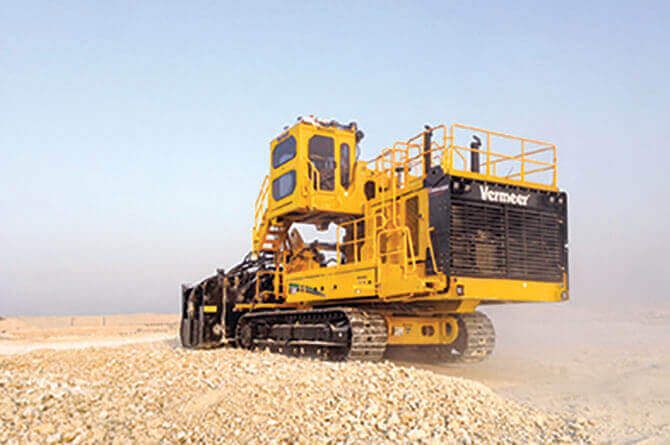

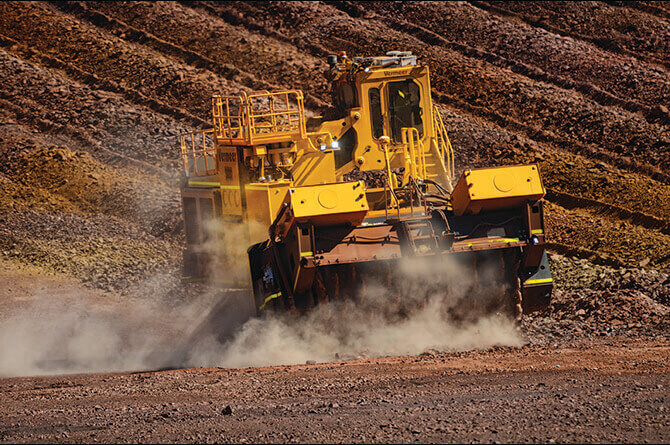

- Conduct surface mining extraction, remove ground surface, or create a smooth, level area for site preparation

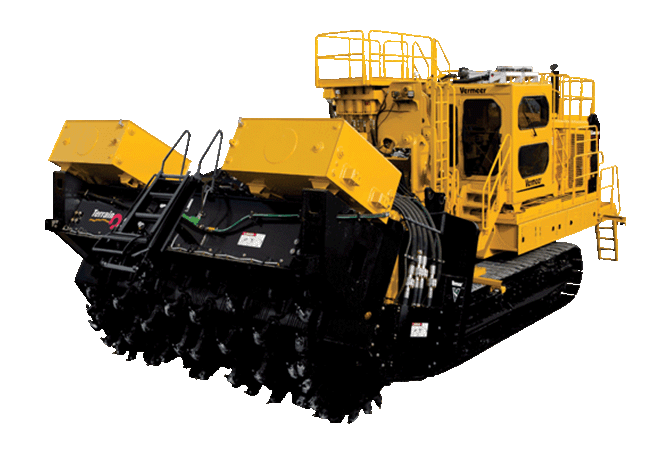

T1655III Surface Miner
REQUEST OFFER
Let us help you get the job done efficiently and effectively!
Features & Benefits
1
Drive motors attached directly to the cutter drum improve efficiencies and reduce wear associated with chain, sprocket and belt transmissions.
2
Top-down cutting, as developed by Vermeer, allows the cutter teeth to gain penetration without using the machine’s tractive effort to drive the teeth into the material.
3
SmartTEC performance monitoring assists operators with adjustments to machine controls to help improve efficiency and tracks the operational performance of the machine on a consistent platform across all machine models.
4
The T1655III dual tracks and low center of gravity allow for maneuverability and stability over the changing and diverse surface conditions.
Units:
SPECIFICATIONS
-
Approach Angle15 deg
-
Height Range201 in (510.5 cm) not including handrails
-
Weight Range410,000 lb (185,972.9 kg)
-
Width Ranges20.4' (6.2 m) - with Terrain Leveler attachment
-
Track Length215.6 in
-
Tilt Track AvailableNo
-
Auto Self LevelNo
-
Service BrakesHydrostatic
-
Track Pad TypeDouble grouser with dirt relief
-
Track SizeBerco Hitachi EX1100
-
Parking and Emergency BrakeWet disc, spring-applied hydraulic release
-
Track Drive TypeDual path hydrostatic planetary transmission
-
Track Pad Width Ranges36"
-
Maximum Ground Speed - High103.9 ft/min
-
Maximum Ground Speed - Low45.7 ft/min
-
Ground Pressure Minimum25.8 psi
-
Ground Pressure Maximum25.8 psi
-
Air Conditioner/HeaterYes, two units
-
Air Suspension SeatYes, two units
-
ElevatingYes
-
Pressurized/Filtered AirYes
-
Rollover Protective Structure (ROPM)Yes
-
AM/FM Stereo with Weather BandYes
-
CabYes
-
Control SystemTEC Plus with SmartTEC
-
TrencherNo
-
Terrain LevelerYes
-
RockwheelNo
-
Bucket WheelNo
-
Terrain Leveler cutting width180 in
-
Pressure Setting2500 psi
-
Oil Tank Capacity440 gal
-
Pump Flow at Maximum RPM66.4 gpm
-
Pump TypePressure- and flow-compensated
-
Oil TypeHyPower 68, HyPower 100, Hy Power 1100
-
Make and Model2 - Caterpillar C-18 engines ACERT Tier 3
-
Gross Horsepower1200 hp
-
Rated Engine RPM1800
-
Fuel Tank Capacity800 gal
-
Operating Range13.2 hours
-
Fuel Consumption at Full Load60.5 gph
-
Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles)35 deg
-
Air CleanerDry-type with precleaner
-
AspirationTurbo charged and aftercooled
-
Cooling MediumLiquid
-
Electrical System24 volt
-
Oil FilterFull Flow
