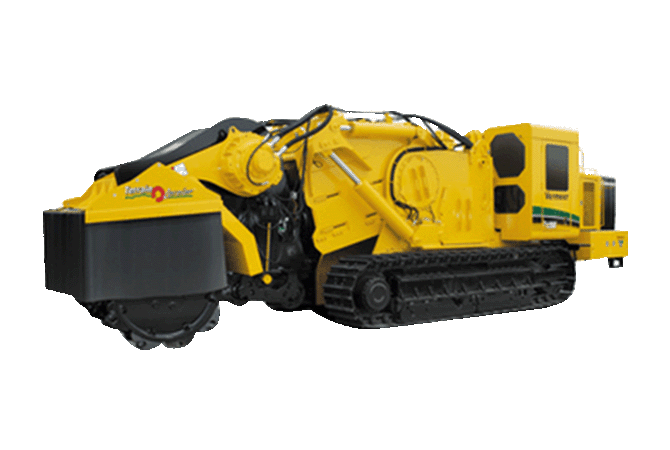

T1255III Chain Drive Surface Miner
  • Get in and extract material close to the high wall – this attachment gives you the capability to cut along a vertical high wall
  • The chains are driven by low-speed, high-torque hydrostatic motors
  • Conduct surface mining extraction, remove ground surface, or create a smooth, level area for site preparation
REQUEST OFFER

Let us help you get the job done efficiently and effectively!

Features & Benefits

1

Using a single-drive motor to power the drum allows for the ability to cut an 80° high wall compared to the 45° high wall when using the dual drive attachment.

2

Optional dust suppression system features an enclosed cutting head with two large vacuums to help reduce dust onsite.

3

SmartTEC performance monitoring assists operators with adjustments to machine controls to help improve efficiency and tracks the operational performance of the machine on a consistent platform across all machine models.

4

Load control allows the machine to automatically adjust ground speed to use full engine horsepower, thus maximizing productivity.

5

The elevating cab allows optimal visibility and added comfort with the air ride seat. The sealed cab has self-contained heating and air conditioning with sound-attenuating foam. It is also a rollover module (ROM).

Units:

SPECIFICATIONS

  • Approach Angle
    15 deg
  • Height Range
    146 (370.8 cm)
  • Weight Range
    150,000 lb - 205,000 lb (68,039.9 kg - 92,986.4 kg)
  • Width Ranges
    134" (340.4 cm)
  • Length with 50" (127 cm) End Idler and 18 ft (5.49 m) Boom (with Restraint Bar)
    53.8 ft
  • Length with 50" (127 cm) End Idler and 10 ft (3.05 m) Boom
    45.5 ft
  • Length with 50" (127 cm) End Idler and 12 ft (3.66 m) Boom
    48 ft
  • Length with 50" (127 cm) End Idler and 16 ft (4.88 m) Boom (with Restraint Bar)
    51.3 ft
  • Length with 50" (127 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar)
    48.8 ft
  • Length with 50" (127 cm) End Idler and 8 ft (2.44 m) Boom
    43 ft
  • Track Length
    181.5 in
  • Tilt Track Available
    No
  • Auto Self Level
    No
  • Service Brakes
    Hydrostatic
  • Track Pad Type
    Double grouser
  • Track Size
    Cat 375 Excavator
  • Parking and Emergency Brake
    spring-applied, hydraulic release, wet disc brake
  • Track Drive Type
    Dual path hydrostatic with planetary transmission
  • Track Pad Width Ranges
    30" (76.2 cm)
  • Maximum Ground Speed - High
    128.4 ft/min
  • Maximum Ground Speed - Low
    48.1 ft/min
  • Ground Pressure Minimum
    15.5 psi
  • Ground Pressure Maximum
    21.1 psi
  • Air Conditioner/Heater
    Yes
  • Air Suspension Seat
    Yes
  • Elevating
    Yes
  • Pressurized/Filtered Air
    Yes
  • Rollover Protective Structure (ROPM)
    Yes
  • AM/FM Stereo with Weather Band
    Yes
  • Cab
    Yes
  • Control System
    TEC Plus with SmartTEC
  • Trencher
    Yes
  • Terrain Leveler
    Yes
  • Rockwheel
    No
  • Bucket Wheel
    No
  • Pressure Setting
    2500 psi
  • Oil Tank Capacity
    210 gal
  • Pump Flow at Maximum RPM
    28.7 gpm
  • Pump Type
    pressure-and-flow-compensated (load-sensing)
  • Oil Type
    HyPower 68, HyPower 100, Hy Power 1100
  • Make and Model
    Caterpillar C18 ACERT Tier 3
  • Gross Horsepower
    600 hp
  • Rated Engine RPM
    2100
  • Number of Cylinders
    6
  • Fuel Tank Capacity
    370 gal
  • Operating Range
    11.6 hours
  • Fuel Consumption at Full Load
    31.8 gph
  • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles)
    35 deg
  • Air Cleaner
    Dry-type with precleaner
  • Aspiration
    Turbocharged and air-to-air aftercooled
  • Cooling Medium
    Liquid
  • Electrical System
    24 Volt DC
  • Oil Filter
    Full flow
  • Make and Model
    Caterpillar C18 ACERT Tier 4 Final
  • Gross Horsepower
    600 hp
  • Rated Engine RPM
    2000
  • Number of Cylinders
    6
  • Fuel Tank Capacity
    370 gal
  • Operating Range
    12.1
  • Fuel Consumption at Full Load
    30.5 gph
  • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles)
    35 deg
  • Air Cleaner
    Dry-type with precleaner
  • Aspiration
    Turbocharged and air-to-air aftercooled
  • Cooling Medium
    Liquid
  • Electrical System
    24 Volt DC
  • Oil Filter
    Full flow
