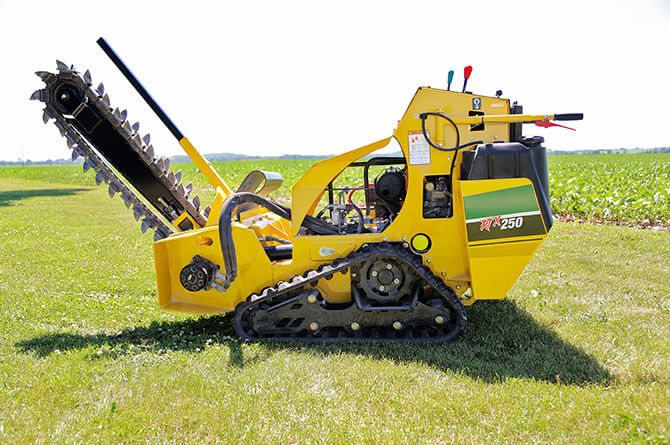

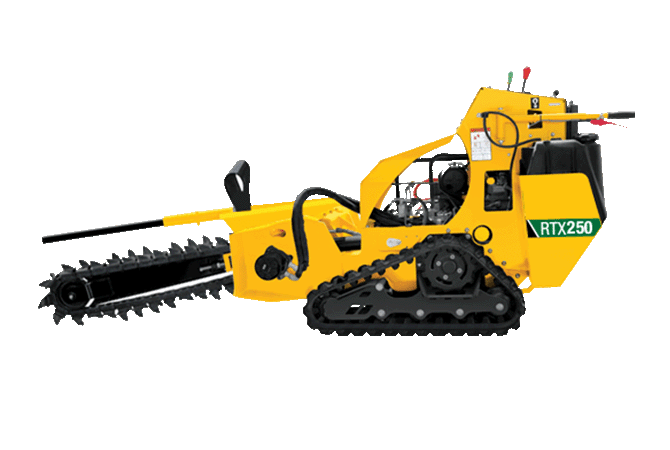

RTX250 Pedestrian Trencher
  • Versatile configuration
  • Enhanced mobility for improved efficiency
  • High-powered engine for more productivity
REQUEST OFFER

Let us help you get the job done efficiently and effectively!

Features & Benefits

1

The RTX250 features a 25-hp (18.6-kW) electronic fuel-injected (EFI) engine that starts reliably in a wide variety of temperatures and altitudes.

2

Rubber tracks offer outstanding traction in soft, rocky or muddy conditions with minimal ground disturbance.

3

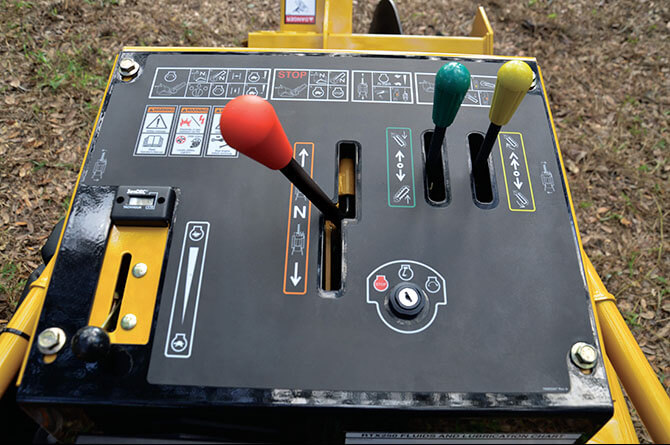

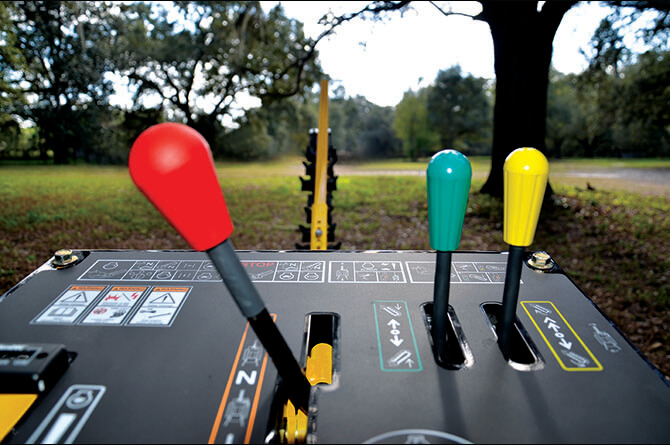

The VZ steering system eliminates the need for additional levers, helping to reduce operator training time.

4

Even when facing varied terrain and unfavorable ground conditions, the RTX250’s high-mount track design offers outstanding traction and minimizes ground disturbance.

5

Engine offers excellent startability in a wide variety of temperatures and altitudes, while issues normally associated with conventional carbureted engines — such as flooding — are eliminated.

6

The slender profile, with a 35 in (88.9 cm) width, allows the unit to move through narrow yard gates.

7

Promotes on-the-job safety with an operator presence system that disengages the trencher and ground drives if the operator leaves the controls, in addition to a trenching cleat that restricts backward motion.

Units:

SPECIFICATIONS

  • Width
    34.5 in
  • Height
    48 in
  • Length
    79 in
  • Weight
    1550 lbs
  • Displacement
    45 cu-in
  • Fuel Type
    Gas
  • Maximum Operating Angle (Left/Right)*
    25 deg
  • Maximum Operating Angle (Fore/Aft)*
    25 deg
  • Make and Model
    Kohler Command PRO ECH740
  • Number of Cylinders
    2
  • Cooling Medium
    Forced air
  • Aspiration
    Natural
  • Gross Horsepower
    25 hp
  • Horsepower at Maximum RPM (Gross)
    25 hp
  • Attachment Pump Relief Pressure (Trencher/Forward)
    2975 psi
  • Ground Drive Pump Relief Pressure Forward/Reverse
    2900 psi
  • Ground Drive Pump gpm at Maximum Engine RPM
    11.4 gpm
  • Hydraulic Supply Filter Rating
    10 micron nominal
  • Attachment Pump gpm at Maximum Engine RPM
    16.1 gpm
  • Hydraulic Return Filter Rating
    10 micron nominal
  • Hydraulic System
    8.5 gal
  • Hydraulic Tank
    8 gal
  • Fuel Tank
    6.8 gal
  • Engine Oil
    .5 gal
  • Ground Drive Type
    Hydrostatic
  • Maximum Reverse Transport Speed at Full Throttle
    2.5 mph
  • Maximum Forward Transport Speed at Full Throttle
    3.5 mph
