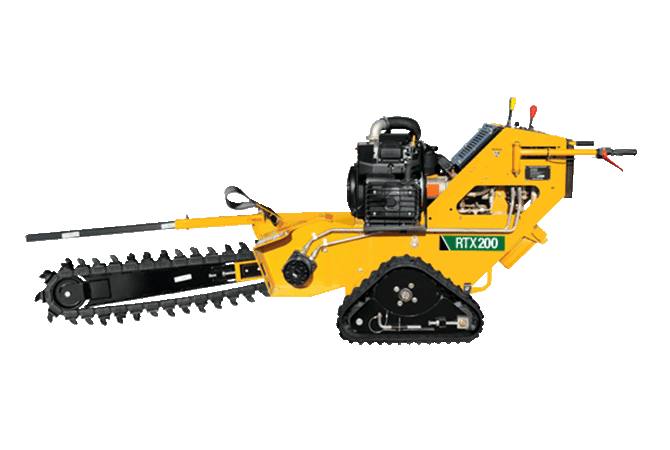

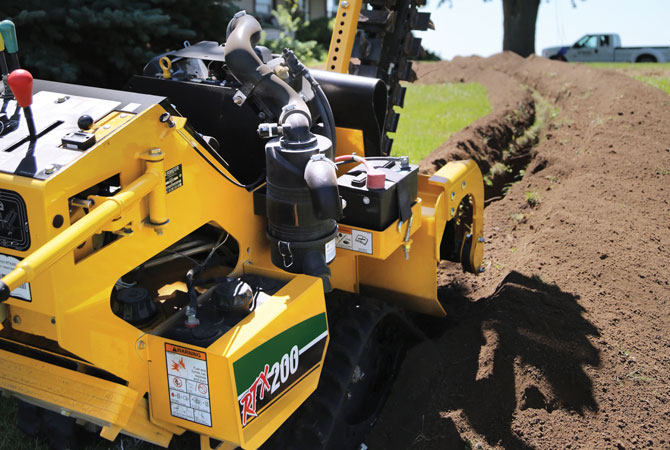

RTX200 Pedestrian Trencher
  • Designed with versatility for the next job
  • Keep your operators top-of mind with our enhanced operator presence system
  • Master your terrain with option of tire or tracks
REQUEST OFFER

Let us help you get the job done efficiently and effectively!

Features & Benefits

1

The RTX200 features a 20.5-hp (15.3-kW) Kohler engine, delivering high-powered digging torque.

2

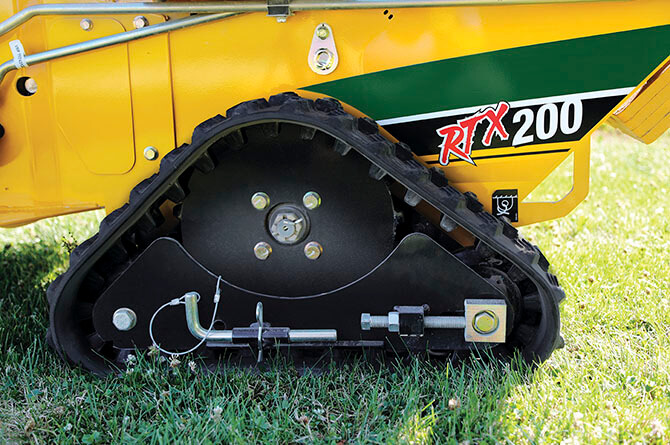

Rubber tracks offer outstanding traction in soft, rocky or muddy conditions with minimal ground disturbance.

3

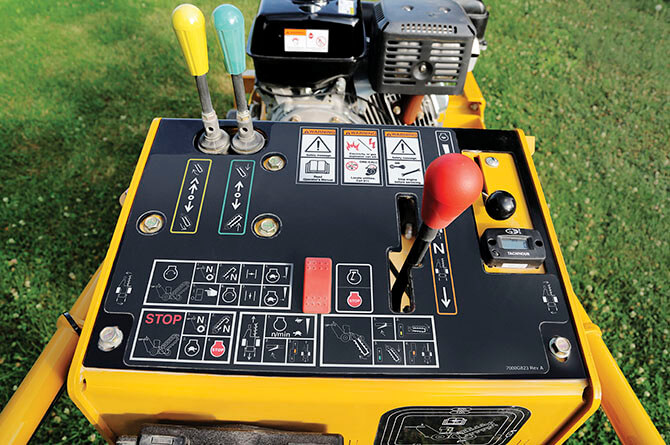

Thanks to the intuitive and enhanced VZ steering capabilities, the operator can navigate difficult and uneven terrains with ease.

4

A 35-in (88.9-cm) width allows the RTX200 to access small spaces — including passing through typical backyard gates.

5

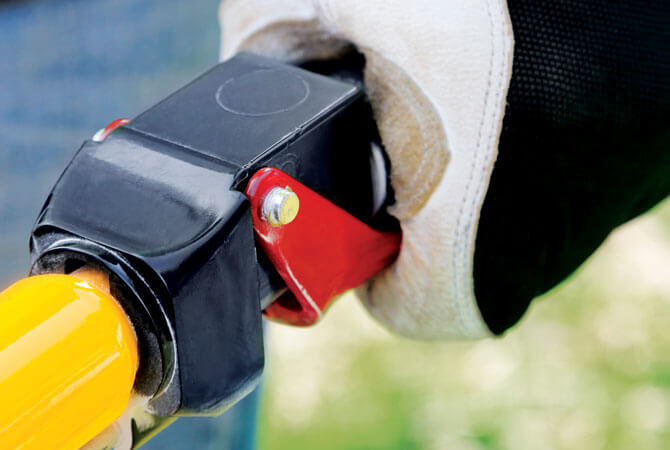

Promotes on-the-job safety with an operator presence system that disengages the trencher and ground drives if the operator leaves the controls, in addition to a trenching cleat that restricts backward motion.

6

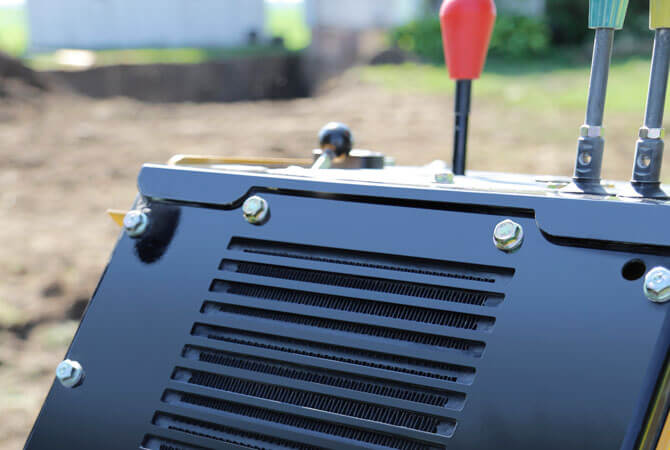

The tandem effort of a heavy-duty hydraulic oil cooler and large reservoir help manage system temperature to enhance performance and reliability.

Units:

SPECIFICATIONS

  • Height
    46 in
  • Tread Width with Rubber Tires (Centerline to Centerline)
    8.5 in
  • Wheel Base From Centerline of Axles
    33.2 in
  • Length (Tractor with Tires)
    83 in
  • Width (Over Rubber Tracks)
    35 in
  • Width (Over Rubber Tires)
    35 in
  • Weight (Tractor with Tires)
    940 lbs
  • Displacement
    41.1 cu-in
  • Fuel Type
    Gasoline
  • Maximum Operating Angle (Left/Right)*
    25 deg
  • Maximum Operating Angle (Fore/Aft)*
    25 deg
  • Make and Model
    Kohler CH640
  • Cooling Medium
    Forced air
  • Aspiration
    Natural
  • Horsepower at Maximum RPM (Gross)
    20.5 hp
  • Attachment Pump Relief Pressure (Trencher/Forward)
    2500 psi
  • Ground Drive Pump Relief Pressure Forward/Reverse
    2400 psi
  • Ground Drive Pump gpm at Maximum Engine RPM
    5.4 gpm
  • Hydraulic Supply Filter Rating
    100 mesh strainer
  • Attachment Pump gpm at Maximum Engine RPM
    10.3 gpm
  • Hydraulic Return Filter Rating
    3 micron
  • Hydraulic System
    11.3 gal
  • Hydraulic Tank
    10.8 gal
  • Fuel Tank
    2.5 gal
  • Engine Oil
    .5 gal
  • Ground Drive Type
    Hydrostatic
  • Clutch Type
    none
  • Maximum Reverse Transport Speed at Full Throttle
    1 mph
  • Maximum Forward Transport Speed at Full Throttle
    3.1 mph
