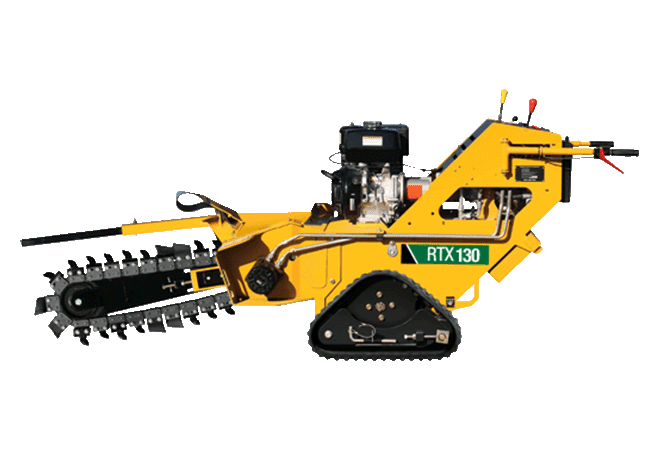

RTX130 Pedestrian Trencher
  • Master your terrain with option of tire or tracks
  • Precise steering and performance for jobsite variety
  • Keep your operators top-of mind with our enhanced operator presence system
REQUEST OFFER

Let us help you get the job done efficiently and effectively!

Features & Benefits

1

Steers effortlessly with the VZ steering system that requires minimal effort to the handlebars.

2

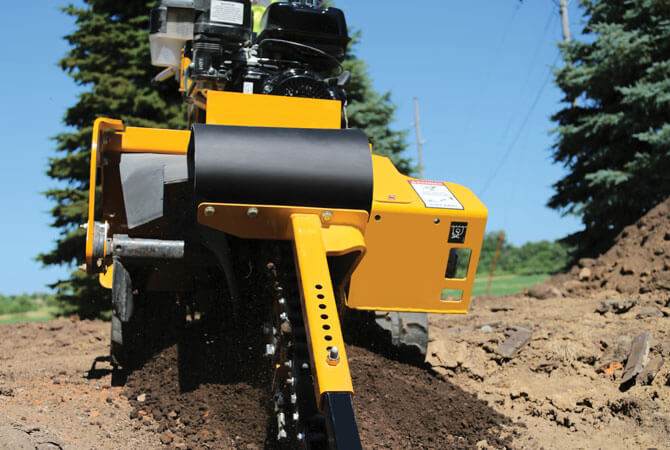

Elimination of the tail wheel on the track unit provides trenching depth control in uneven ground conditions and convenience to move through tight spaces.

3

Fits into narrow areas with a footprint that measures only 35 in (89 cm) wide.

4

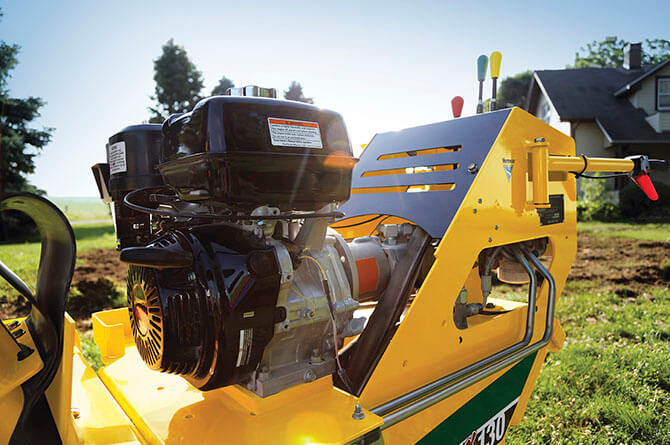

The RTX130 is equipped with a 13-hp (9.7-kW) Honda engine for optimal power on your jobsite.

5

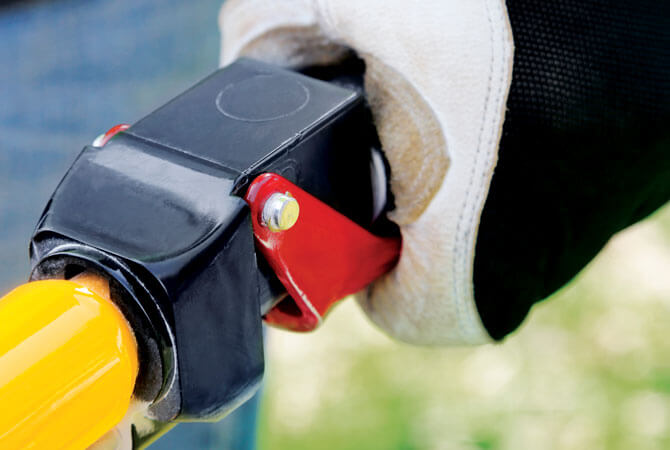

Promotes on-the-job safety with an operator presence system that disengages the trencher and ground drives if the operator leaves the controls, in addition to a trenching cleat that restricts backward motion.

Units:

SPECIFICATIONS

  • Height
    46 in
  • Tread Width with Rubber Tires (Centerline to Centerline)
    8.5 in
  • Wheel Base From Centerline of Axles
    33.2 in
  • Length (Tractor with Tires)
    83 in
  • Width (Over Rubber Tracks)
    35 in
  • Width (Over Rubber Tires)
    35 in
  • Weight (Tractor with Tires)
    880 lbs
  • Displacement
    23.7 cu-in
  • Fuel Type
    Gasoline
  • Maximum Operating Angle (Left/Right)*
    20 deg
  • Maximum Operating Angle (Fore/Aft)*
    20 deg
  • Make and Model
    Honda GX390
  • Number of Cylinders
    1
  • Cooling Medium
    Forced Air
  • Gross Horsepower
    13 hp
  • Horsepower at Maximum RPM (Gross)
    13 hp
  • Attachment Pump Relief Pressure (Trencher/Forward)
    2500 psi
  • Ground Drive Pump Relief Pressure Forward/Reverse
    2400 psi
  • Ground Drive Pump gpm at Maximum Engine RPM
    5.4 gpm
  • Hydraulic Supply Filter Rating
    100 mesh strainer
  • Attachment Pump gpm at Maximum Engine RPM
    8 gpm
  • Hydraulic Return Filter Rating
    3 micron
  • Hydraulic System
    11.3 gal
  • Hydraulic Tank
    10.8 gal
  • Fuel Tank
    1.6 gal
  • Engine Oil
    .3 gal
  • Ground Drive Type
    Hydrostatic
  • Clutch Type
    none
  • Maximum Reverse Transport Speed at Full Throttle
    1 mph
  • Maximum Forward Transport Speed at Full Throttle
    3.1 mph
