- High capacity pump
- Cleaning efficiency
- Available as skid or trailer version

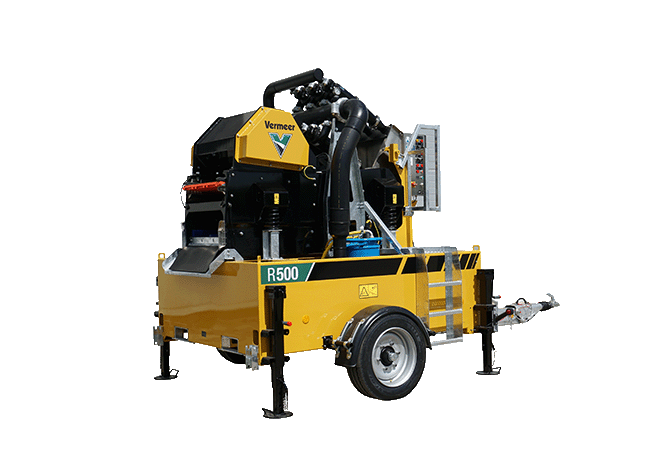

R500 Reclaimer
REQUEST OFFER
Let us help you get the job done efficiently and effectively!
Features & Benefits
1
The heavyweight shaker deck delivers stable performance under variable processing volume. A high-capacity 11-kW (15-hp) pump is used for optimum circulation.
2

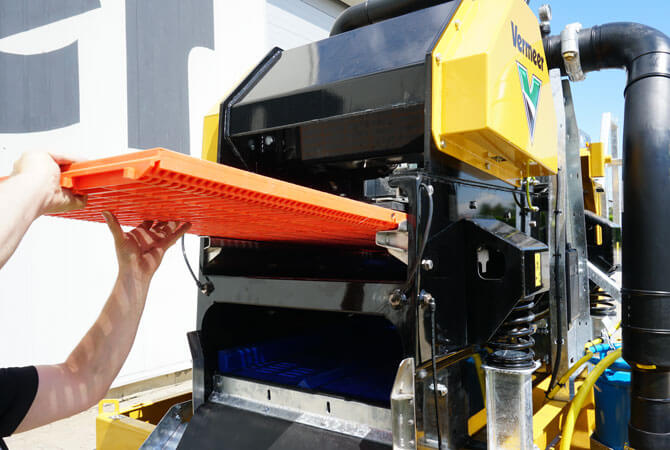

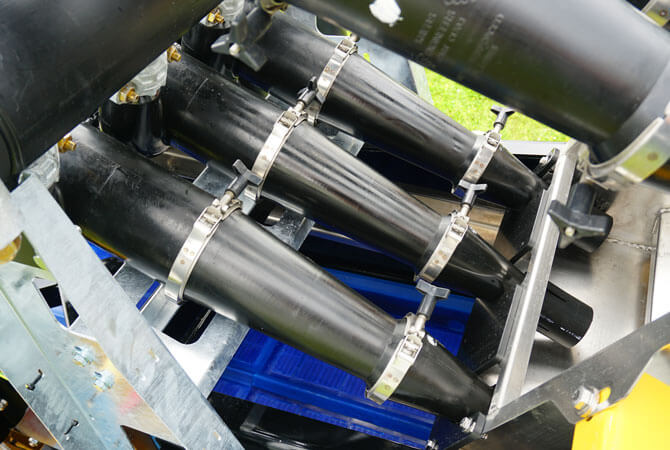

Six 10.2-cm (4-in) long-body hydrocyclones in combination with a relatively large screen area help achieve premium cleaning performance.
3

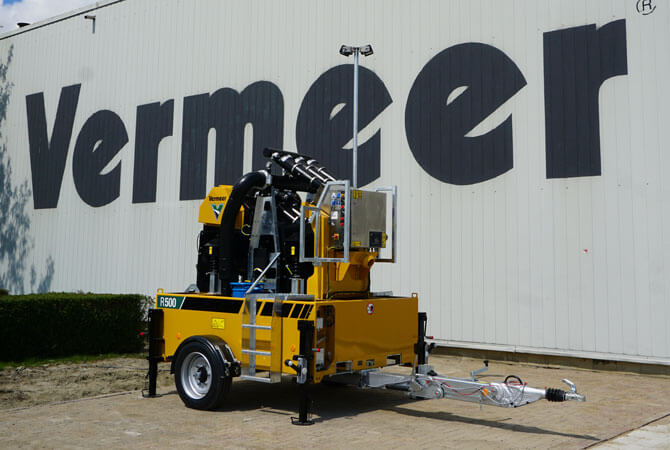

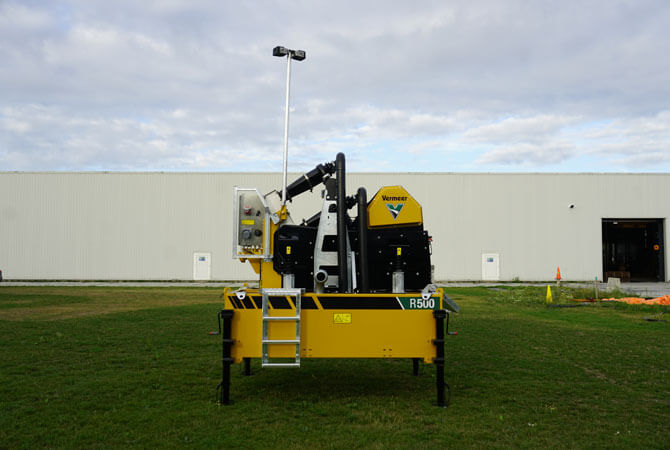

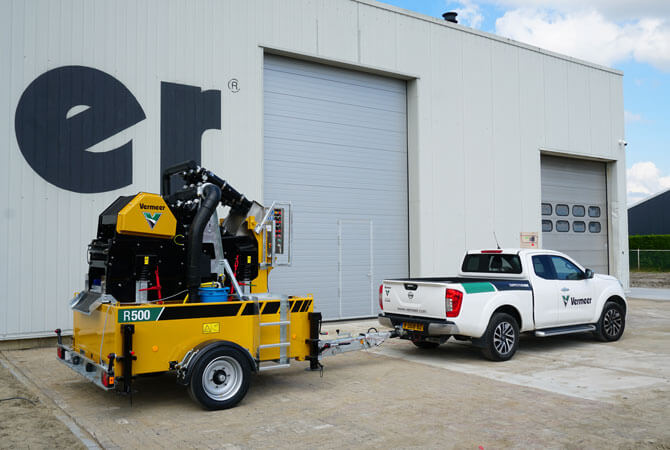

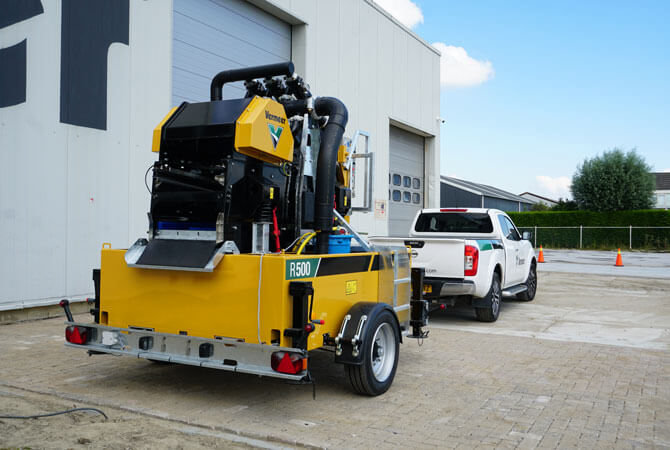

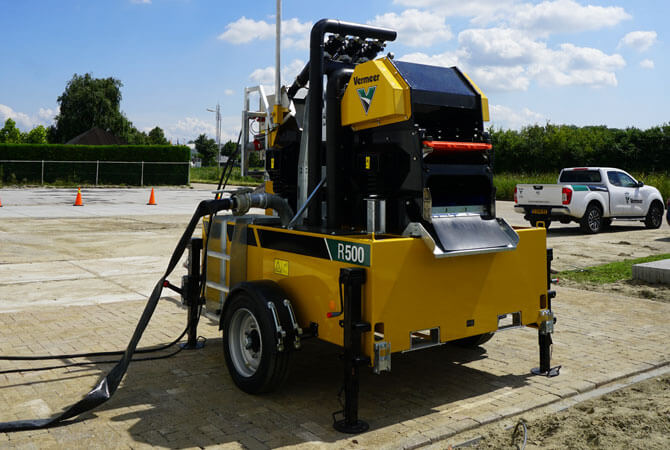

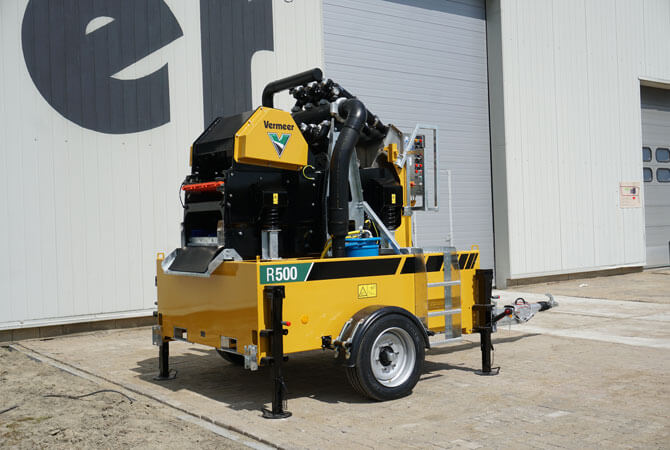

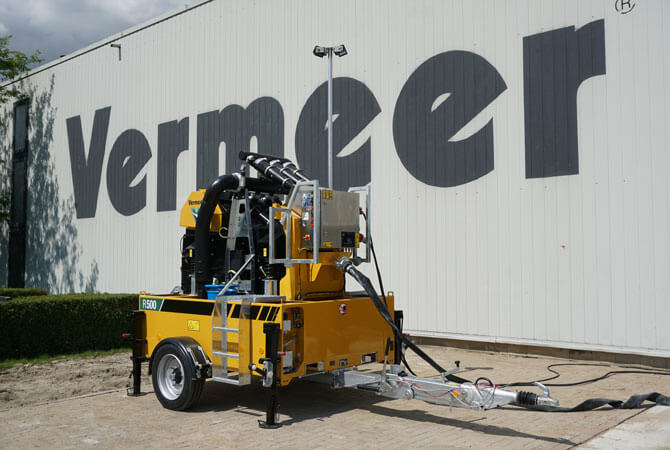

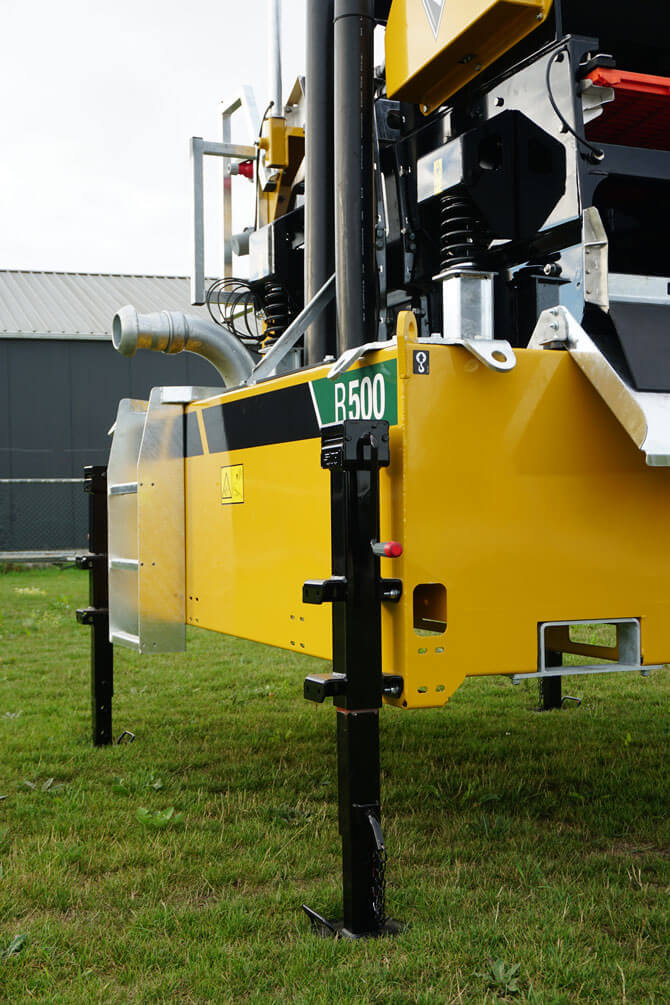

The R500 reclaimer is available as skid or trailer. The skid is prepared for forklift use, and the trailer comes equipped with a height-adjustable surge brake to adapt to a variety of towing vehicles.
Units:
SPECIFICATIONS
-
Weight5511 lbs
-
Length16 ft
-
Width8.2 ft
-
Height9.2 ft
-
Gross Vehicle Weight Rating (GVWR)5511 lbs
-
TypeSingle axle trailer
-
SuspensionTorsion bar
-
AxlesKnott
-
Maximum Capacity600 gal
-
Number of Tanks1
-
Shaker TypeDouble deck
-
Number of Shakers1
-
Shaker Bed Area - each23.4 ft² (2.18 m²)
-
Number of Screens per Shaker3
-
Screen Dimension24 in x 24 in (61 cm x 61 cm)
-
Cleaning Capacity (First Cut)130 gpm
-
Desilter Quantity/Size6 hydrocyclones
-
Shaker MotionLinear
-
Charge pump5 hp (3.7 kW)
-
Desilter pump15 hp (11 kW)
-
Genset40 kVA, 3-phase 50 Hz, 400 V
-
Pit pump5 hp (3.7 kW)
-
TrailerSingle axle
-
Auto-pit pumpStandard
-
Ancillary Electrical System24 V
-
Working lightsDual LED lamp post
