PTX44 Plow/Trencher
  • Versatile machine for utility contractors
  • Customizable for your job
REQUEST OFFER

Let us help you get the job done efficiently and effectively!

Features & Benefits

1

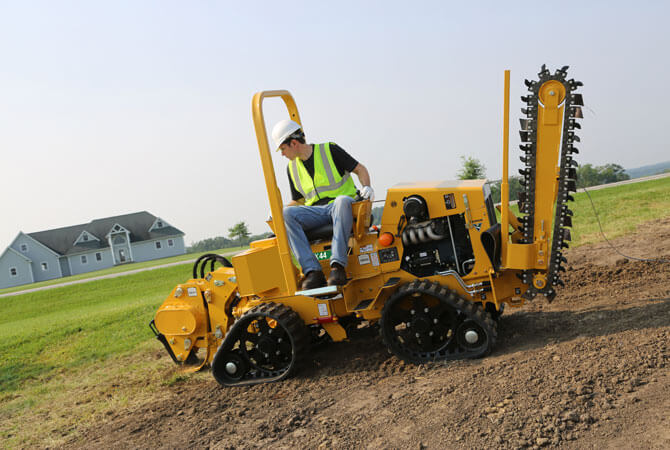

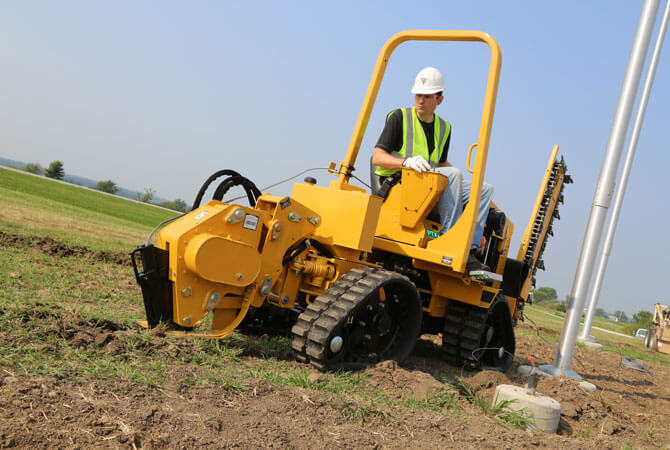

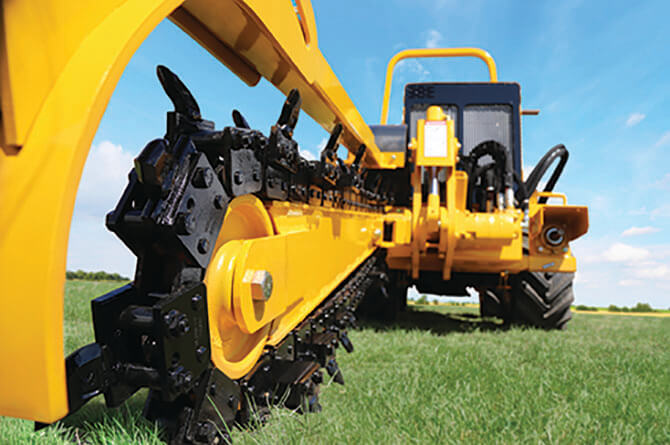

Features a dedicated plow [24 in (60.9 cm) maximum installation depth] with the option to utilize a forward-mounted trencher [42 in (106.7 cm) maximum trenching depth and 6 in (15.2 cm) maximum trenching width] and/or bore attachment.

2

Electronic controls allow the operator to preset the creep speed to optimize performance on longer distance installations, enhancing productivity while maximizing operator comfort.

3

The operator’s station is located at the center of the service plow directly above the machine’s articulation point, providing excellent visibility of the work area.

4

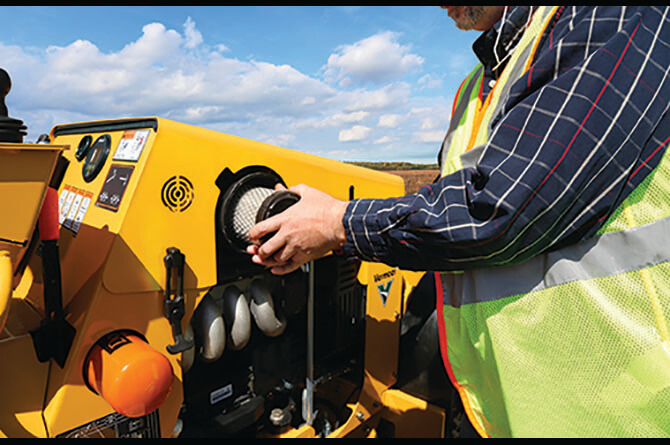

Access to hydraulic and engine oil filters does not require removal of any shielding, making service and preventive maintenance more efficient.

5

VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real-time data to make smarter decisions, and help maximize productivity and profitability.

Units:

SPECIFICATIONS

  • Weight (basic tractor, rubber tires)
    2940 lbs
  • Weight (basic tractor, rubber tires, option two)
    3188 lbs
  • Weight (basic tractor, tracks)
    3840 lbs
  • Length (basic tractor, rubber tires)
    84.8 in
  • Length (basic tractor, rubber tires, option two)
    84.8 in
  • Length (basic tractor, tracks)
    92.8 in
  • Width (basic tractor, rubber tires)
    48 in
  • Width (basic tractor, rubber tires, option two)
    60 in
  • Width (basic tractor, tracks)
    44.5 in
  • Height (basic tractor, rubber tires)
    89.5 in
  • Height (basic tractor, rubber tires, option two)
    88 in
  • Height (basic tractor, tracks)
    88.5 in
  • Wheel Base (Centerline of Axles)
    48 in
  • Tread Width with Rubber Tires (Centerline to Centerline)
    36 in
  • Tread Width with Rubber Tires Option Two (Centerline to Centerline)
    39 in
  • Ground Clearance (rubber tires)
    7.4 in
  • Ground Clearance (rubber tires, option two)
    6.4 in
  • Ground Clearance (tracks)
    6.9 in
  • Tread Width with Rubber Tracks (Centerline to Centerline)
    32.3 in
  • Make and Model
    Kubota WG1605
  • Maximum Torque
    88.7 ft-lb
  • Cooling Medium
    Liquid
  • Fuel Type
    Gasoline
  • Emissions rating
    EPA Phase 3 and CARB LSI
  • Gross Horsepower (Maximum)
    46.8 hp
  • Maximum forward transport speed (high)
    2.7 mph
  • Maximum reverse transport speed (high)
    2.7 mph
  • Tire size
    26" x 12" (66 cm x 30.5 cm)
  • Maximum forward transport speed (high)
    2.4 mph
  • Maximum reverse transport speed (high)
    2.4 mph
  • Tire size
    23" x 10.5" (58.4 cm x 26.7 cm) duals
  • Maximum forward creep speed (low)
    127 ft/min
  • Maximum forward transport speed (high)
    2.4 mph
  • Track width
    11 in

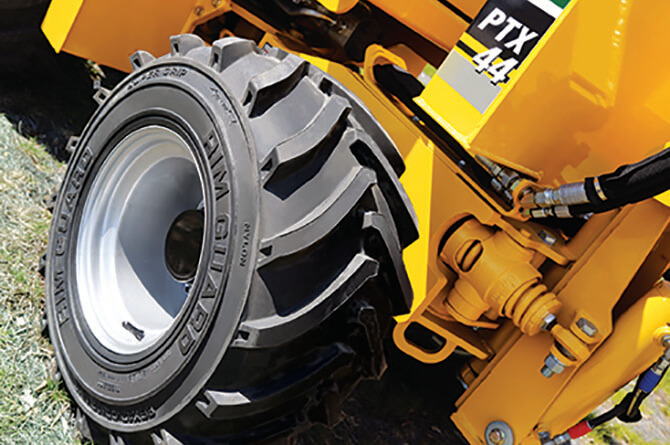

  • Front Axle Type
    Planetary
  • Rear Axle Type
    Planetary
  • Axle load rating (static, per axle)
    14800 lbs
  • Outside Turning Diameter (Rubber Tires, Front Steer Only)
    18.9 ft
  • Outside Turning Diameter (Rubber Tires Option Two, Front Steer Only)
    19.9 ft
  • Service Brake Type
    Hydrostatic
  • Parking Brake Type
    Drum
  • Ground drive pump capacity
    33.3 gpm
  • Ground drive pump relief
    2900 psi
  • Attachment pump capacity
    24 gpm
  • Attachment pump relief
    2900 psi
  • Auxiliary pump capacity
    10.4 gpm
  • Auxiliary pump relief
    2500 psi
  • Fuel Tank
    12 gal
  • Hydraulic Tank
    9 gal
  • Hydraulic System
    11 gal
  • Coolant
    1.3 gal
