PTX42 Plow/Trencher
  • Installs fiber optic, electrical, gas, water, and irrigations services
  • Walk-beside, pivoting hand controls for precise handling
  • Customizable for your job
REQUEST OFFER

Let us help you get the job done efficiently and effectively!

Features & Benefits

1

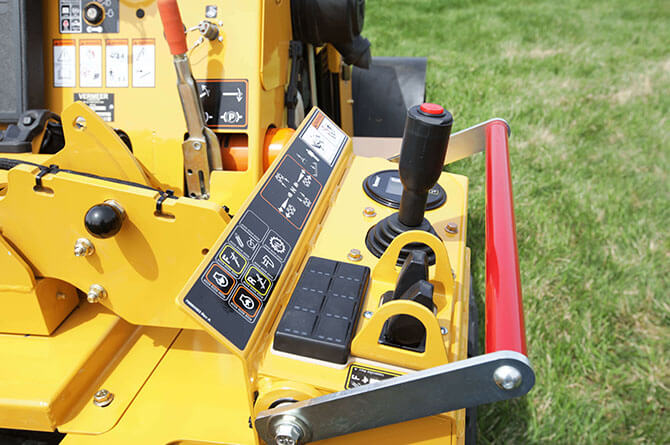

The PTX42 plow/trencher offers walk-beside hand controls that pivot from side to side of the machine for convenient operation and to maneuver around potential obstacles or congested spaces on a jobsite.

2

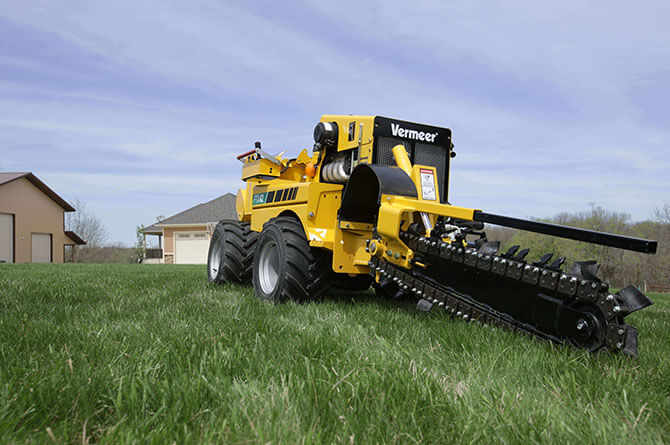

The PTX42 has a variety of versatile attachment options, including a backhoe, trencher, plow, Porta Bore and two reel carriers.

3

The electronic control allows for convenient setting of the creep speed to help optimize performance on longer distance installations, allowing productivity while maximizing operator comfort, whether trenching or plowing.

4

For varying ground conditions, choose from tires or tracks - the PTX42 offers a 23 in (58.4 cm) foam-filled tire option, while the slightly larger 26 in (66 cm) air-filled tires can help with traction.

5

Perform routine maintenance, and service the machine with convenient access to service points without the removal of hood shielding.

6

A 23 in (58.4 cm) dual air-filled tire option offers stability and lower ground pressure, and a track option is well-suited for uneven terrain.

7

VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real-time data to make smarter decisions, and help maximize productivity and profitability.

Units:

SPECIFICATIONS

  • Weight (basic tractor, rubber tires)
    3240 lbs
  • Weight (basic tractor, rubber tires, option two)
    3188 lbs
  • Weight (basic tractor, rubber tires, option three)
    2940 lbs
  • Weight (basic tractor, tracks)
    3840 lbs
  • Length (basic tractor, rubber tires)
    84.8 in
  • Length (basic tractor, rubber tires, option two)
    84.8 in
  • Length (basic tractor, rubber tires, option three)
    84.8 in
  • Length (basic tractor, tracks)
    92.9 in
  • Width (basic tractor, rubber tires)
    44.5 in
  • Width (basic tractor, rubber tires, option two)
    62.4 in
  • Width (basic tractor, rubber tires, option three)
    48.4 in
  • Width (basic tractor, tracks)
    46.1 in
  • Height (basic tractor, rubber tires)
    53.4 in
  • Height (basic tractor, rubber tires, option two)
    53.4 in
  • Height (basic tractor, rubber tires, option three)
    54.9 in
  • Height (basic tractor, tracks)
    53.9 in
  • Wheel Base (Centerline of Axles)
    48 in
  • Tread Width with Rubber Tires (Centerline to Centerline)
    30.3 in
  • Tread Width with Rubber Tires Option Two (Centerline to Centerline)
    36 in
  • Tread width with rubber tires option three (centerline to centerline)
    39 in
  • Ground Clearance (rubber tires)
    6.4 in
  • Ground Clearance (rubber tires, option two)
    6.4 in
  • Ground clearance (rubber tires, option three)
    7.9 in
  • Ground Clearance (tracks)
    6.9 in
  • Angle of approach (basic tractor, rubber tires)
    32 deg
  • Angle of approach (basic tractor, rubber tires, option two)
    32 deg
  • Angle of approach (basic tractor, rubber tires, option three)
    37 deg
  • Angle of approach (basic tractor, tracks)
    81 deg
  • Tread Width with Rubber Tracks (Centerline to Centerline)
    32.3 in
  • Make and Model
    Kubota WG1605
  • Maximum Torque
    88.7 ft-lb
  • Number of Cylinders
    4
  • Cooling Medium
    Liquid Cooled
  • Maximum Operating Angle (Fore/Aft)*
    30 deg
  • Maximum Operating Angle (Left/Right)*
    30 deg
  • Fuel Type
    Gas
  • Emissions rating
    EPA Phase 3 and CARB LSI
  • Gross Horsepower (Maximum)
    46.8 hp
  • Maximum forward transport speed (high)
    2.4 mph
  • Maximum reverse transport speed (high)
    2.4 mph
  • Tire size
    23" (58.4 cm) x 10.5" (26.7 cm) - 12" (30.5 cm)
  • Maximum forward creep speed (low)
    127 ft/min
  • Maximum reverse creep speed (low)
    127 ft/min
  • Ground pressure (basic tractor only)
    15.6 psi
  • Fill Option
    Single tire foam
  • Maximum forward transport speed (high)
    2.4 mph
  • Maximum reverse transport speed (high)
    2.4 mph
  • Tire size
    23" (58.4 cm) x 10.5" (26.7 cm) - 12" (30.5 cm)
  • Maximum forward creep speed (low)
    127 ft/min
  • Maximum reverse creep speed (low)
    127 ft/min
  • Ground pressure (basic tractor only)
    8.7 psi
  • Fill Option
    Dual tire air
  • Maximum forward transport speed (high)
    2.7 mph
  • Maximum reverse transport speed (high)
    2.7 mph
  • Tire size
    26" (66 cm) x 12" (30.5 cm) - 12" (30.5 cm)
  • Maximum forward creep speed (low)
    143 ft/min
  • Maximum reverse creep speed (low)
    143 ft/min
  • Ground pressure (basic tractor only)
    13.9 psi
  • Fill Option
    Single tire air
  • Maximum forward transport speed (high)
    2.4 mph
  • Maximum reverse transport speed (high)
    2.4 mph
  • Maximum forward creep speed (low)
    127 ft/min
  • Maximum reverse creep speed (low)
    127 ft/min
  • Track Contact Length
    14.4 in
  • Track width
    11 in
  • Ground pressure (basic tractor only)
    5.8 psi
  • Front Axle Type
    Planetary
  • Rear Axle Type
    Planetary
  • Axle load rating (static, per axle)
    14800 lbs
  • Outside Turning Diameter (Rubber Tires, Front and Rear Steer)
    18.4 ft
  • Outside Turning Diameter (Rubber Tires Option Two, Front and Rear Steer)
    20 ft
  • Outside turning diameter (rubber tires option three, front and rear steer)
    19 ft
  • Outside turning diameter (tracks, front and rear steer)
    18.8 ft
  • Service Brake Type
    Hydrostatic
  • Parking Brake Type
    Drum
  • Ground drive pump capacity
    33.3 gpm
  • Ground drive pump relief
    2900 psi
  • Attachment pump capacity
    24 gpm
  • Attachment pump relief
    2900 psi
  • Auxiliary pump capacity
    10.4 gpm
  • Auxiliary pump relief
    2500 psi
  • System Voltage
    12 Volt
  • Battery CCA Rating
    950
  • Battery Group Class
    31
  • Fuel Tank
    12 gal
  • Hydraulic Tank
    9 gal
  • Hydraulic System
    11 gal
  • Coolant
    1.3 gal
  • Display
    R625 Remote
