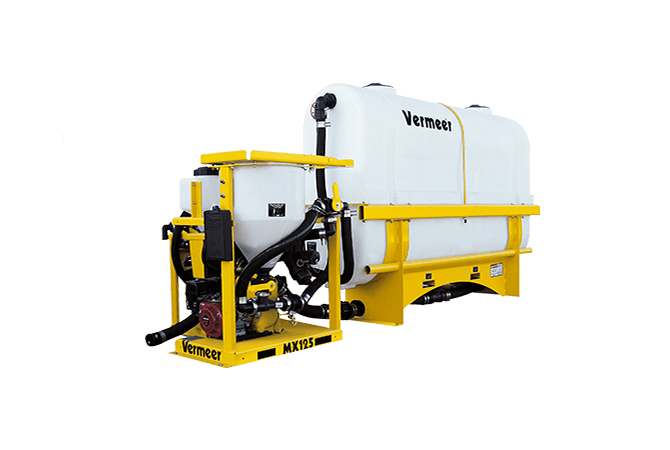

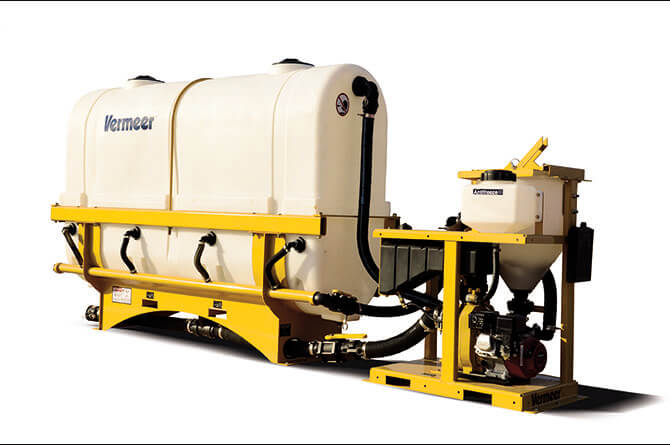

MX125 Mixing System

Let us help you get the job done efficiently and effectively!

Features & Benefits

1

The power pack is mounted on either end of the tank or trailer, enhancing operator accessibility to the unit.

2

A tank with a round design and hopper with a cone-shaped bottom helps keep drilling fluid additives in suspension.

3

The MX125 [500-gal (1,892.7-L) option only] features a narrow profile for easy side-by-side trailer transport with a HDD.

4

The MX125 is available with either a 5.5-hp (4.1-kW) Honda gas engine or 6.7-hp (5-kW) Hatz diesel engine.

Units: Metric Imperial

SPECIFICATIONS

ENGINE

OPERATIONAL

POWER PACK

Integrated Mixing Hopper

Yes Yes
Fuel Capacity

5 gal 18.9 L
Gas Engine Option Horsepower

5.5 hp 4.1 kw
Weight

340 lbs 154.2 kg
Width

30 in 76.2 cm
Gas Engine Option

Honda Honda
Diesel Engine Option

Hatz Hatz
Gross Horsepower

6.7 hp 5 kw
Height

44.5 in 113 cm
Mixing Action

Ventrui/recirculation Ventrui/recirculation
Diesel Engine Option Horsepower

6.7 hp 5 kw
Anti-Freeze Capacity

5 hp 3.7 kw
Length

36 in 91.4 cm
Straining System (Outlet)

Yes Yes
Straining System (Makeup Water)

Yes Yes
Pump Type

Monarch 3" (7.62 cm) grease seal pump Monarch 3" (7.62 cm) grease seal pump
