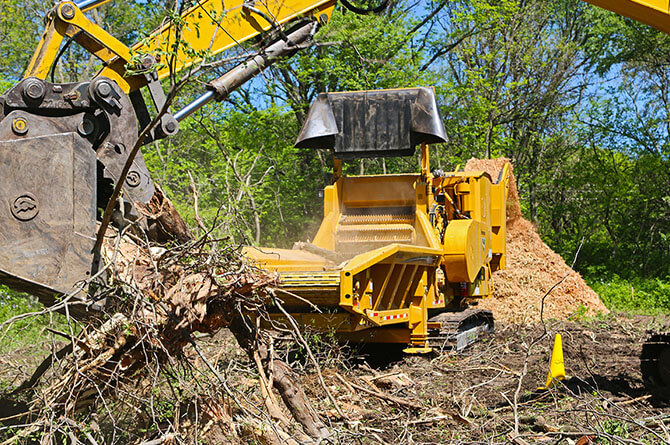

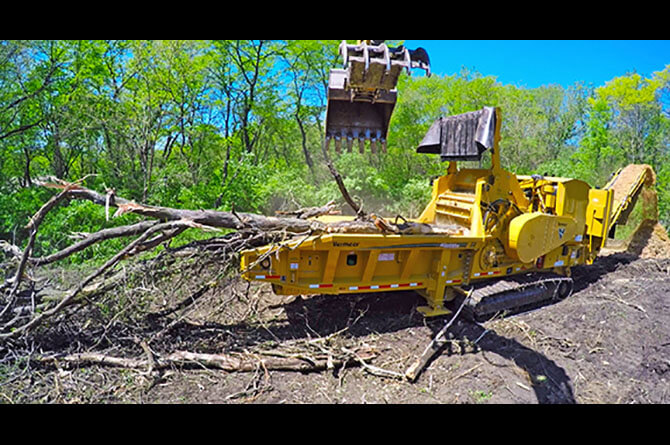

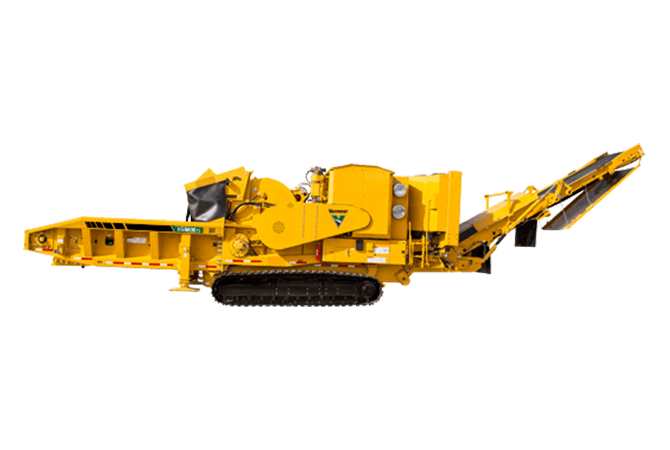

HG6800TX Horizontal Grinder
  • A flagship horizontal grinder built to maximize productivity and efficiency
  • Robust build quality for confident longevity
  • Maintenance-friendly design optimizes serviceability
  • Equipped with Vermeer innovations to help protect your investment and optimize efficiency
REQUEST OFFER

Let us help you get the job done efficiently and effectively!

Features & Benefits

1

For enhanced flexibility within a single machine, a dedicated chip drum, adjustable for product size ranging from .125 in - 1 in (.3 cm - 2.5 cm), is available.

2

The Series III hardfaced duplex drum offers durability and convenient maintenance, with the ability to remove and replace single hammers and balance the drum externally.

3

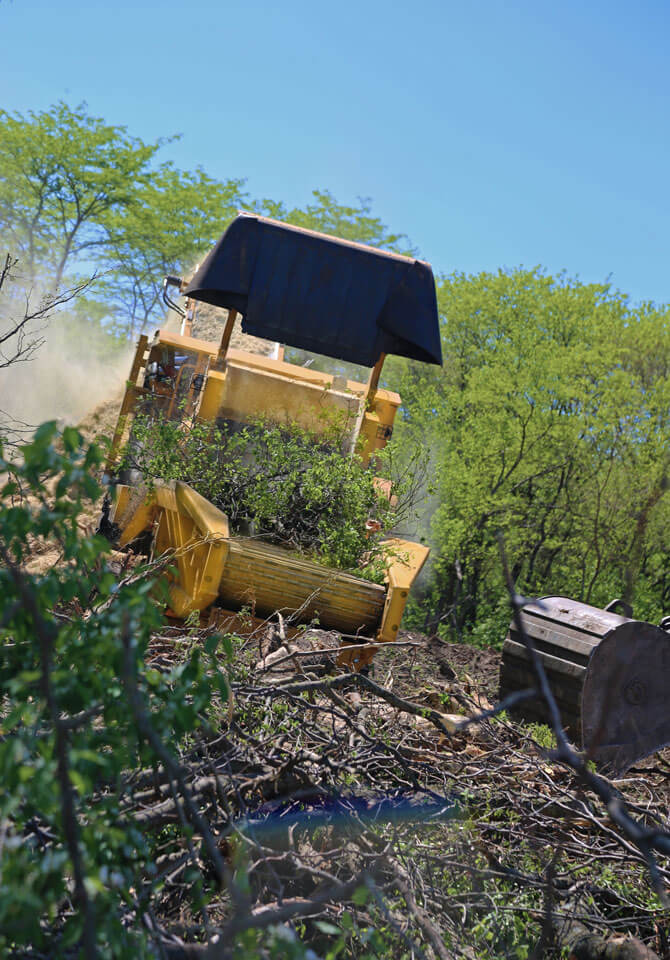

The HG6800TX features low sidewalls to aid in feeding whole trees with minimal restriction, reducing the number of operator interactions with the material after loading and allowing the operator to focus on the next load.

4

The SmartFeed system monitors engine rpm and adjusts grinding speed for optimal machine performance.

5

The optional Damage Defense system reduces the likelihood of certain metal contaminants from entering the hammermill by reacting to the initial contact with the contaminant and reversing the feed system to allow removal of the contaminant.

6

An industry-leading, full-function, wireless remote control lets you adjust machine settings from the cab as conditions change, including control of the infeed settings, engine droop, conveyor height and more.

7

Change screens efficiently utilizing the optional screen hoist and the remote control or main machine controls.

8

VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real time data to make smarter decisions, and help maximize productivity and profitability.

9

Reduce the quantity and distance of thrown material debris with the Thrown Object Deflector (TOD), strategically placed to reduce interference when loading over-length material.

Units:

SPECIFICATIONS

  • Maximum Length - Transport
    48.1 ft
  • Maximum Length - Transport with Dolly
    48.6 ft
  • Maximum Length (Operation)
    56.5 ft
  • Maximum Width Transport - with Dolly
    10 ft
  • Maximum Height Transport with Dolly
    12.8 in
  • Weight
    92000 lbs
  • Tongue Weight - Engine Option 1 with Dolly
    45000 lbs
  • Axle Weight - Engine Option 1 with Dolly
    60000 lbs
  • Dolly Weight
    9500 lbs
  • Maximum Width (Transport)
    10 ft
  • Maximum Height (Transport)
    12 ft
  • Weight Engine Option 1 with Dolly
    105000 lbs
  • Make and Model
    Caterpillar C27 Tier 4F (Stage 4)
  • Number of Cylinders
    12
  • Gross Horsepower (Maximum)
    950 hp
  • Torque (Max)
    3212 ft-lb
  • Fuel Tank Capacity
    350 gal
  • Max Fuel Consumption
    47.5 gph
  • Fuel Type
    Ultra-low sulfer diesel (<15 ppm)
  • Air Cleaner
    Dry-type with primary and secondary elements and restriction indicator
  • Oil Filter
    Full-flow, spin-on
  • Recommended Oil
    CAT DEO-ULS, or API CJ-4, or ACEA E9 (15w-40)
  • Oil Volume with Filter
    71.9 qt
  • Cooling Medium
    Liquid
  • Coolant Capacity (Engine and Radiator)
    45 gal
  • Air to Boil Temperature
    126 deg
  • Alternator
    24 volt
  • Fan
    (Qty 2) Variable-speed, reversible
  • Clutch Type
    Hydraulic-operated wet clutch with PTO
  • Clutch Engagement
    Push-button
  • Drive Belt Type
    V-belt
  • Sound Power
    120 dB(A)
  • Fan - CAC
    Hydraulic (variable speed)
  • Make and Model
    Caterpillar C27 Tier 2 (Stage II)
  • Number of Cylinders
    12
  • Gross Horsepower (Maximum)
    950 hp
  • Torque (Max)
    3212 ft-lb
  • Fuel Tank Capacity
    350 gal
  • Max Fuel Consumption
    47.7 gph
  • Fuel Type
    Diesel
  • Air Cleaner
    Dry-type with primary and secondary elements and restriction indicator
  • Oil Filter
    Full-flow, spin-on
  • Recommended Oil
    CAT DEO-ULS, or API CJ-4, or ACEA E9 (15w-40)
  • Oil Volume with Filter
    71.9 qt
  • Cooling Medium
    Liquid
  • Coolant Capacity (Engine and Radiator)
    45 gal
  • Air to Boil Temperature
    126 deg
  • Alternator
    24 volt
  • Fan
    (Qty 2) Hydraulically driven, reversible
  • Clutch Type
    Hydraulic-operated wet clutch with PTO
  • Clutch Engagement
    Push-button
  • Drive Belt Type
    V-belt
  • Sound Power
    120 dB(A)
  • Thrown Object Deflector
    Standard
  • Deflector Position
    Variable
  • Tip Diameter
    36.4 in
  • Millbox Opening
    60" W x 38" H
  • Drum Diameter
    28 in
  • Drum Cutting Width
    62.4 in
  • Drum Skin Thickness
    1.5 in
  • Drum Speed
    1200 rpm
  • Bearing Type
    Double row, sperical roller
  • Bearing - Inner Race Diameter
    6 in
  • Number of Hammers
    10
  • Number of Tips
    20
  • Tip option 1
    2-bolt
  • Center Retention Pin Dimensions
    2" dia x 79.35" L
  • Drum Weight
    5321 lbs
  • Tip types
    Premium wide
  • Number of Screens
    2
  • Screen Weight
    470 lbs
  • Screen Dimensions
    1" thick
  • Screen Type
    Abrasion-resistant steel
  • Screen Area
    3583 sq in
  • Millbox Lid Liner Dimensions
    Abrasion-resistant steel
  • Liner Dimensions
    .75, 1" (1.9 cm, 2.5 cm) thick
  • Anvil Type
    Fabricated steel with replaceable wear surfaces
  • Anvil Dimensions
    6.6" x 18.2" x 81" (16.7 cm x 46.2 cm x 205.7 cm)
  • Millbox lid liner
    Abrasion-resistant steel
  • Splice
    R2-stainless steel or super splice
  • Length
    89.3 ft
  • Width
    48 in
  • Belt Design
    3 ply - 330# or straight warp single ply 330# both with V cleat
  • Return Roller Quantity
    6
  • Idler Roller Diameter
    12 in
  • Idler Roller Bearing
    1-15/16, 4-bolt flange
  • Standard Drive Roller Diameter
    12.8 in
  • Magnetic Drive Roller Diameter
    12.8 in
  • Drive Motor
    Fixed displacement, geroler
  • Drive Motor Bearings
    1-15/16, 4-bolt flange
  • Belt Speed
    877 ft/min
  • Load Height
    16.3 ft
  • Number of Coolers
    1
  • Tank capacity
    100 gal
  • Recommended Oil
    Vermeer HyPower 68
  • Filtration Method
    Dual in-tank return filters with suction strainer
  • System Type
    Open-loop, pressure- and flow-compensated
  • Pump Type
    Variable displacement, axial piston
  • Pump Flow at Maximum RPM
    63.3 gpm
  • System Relief Pressure
    4200 psi
  • System Relief Pressure
    3000 psi
  • System Type
    Open-loop, pressure- and flow-compensated
  • Pump Type
    Variable displacement, axial piston
  • Pump Flow at Maximum RPM
    32.3 gpm
  • Motor Series
    Char-Lyn 6000 Series, geroler
  • Motor Series
    Danfoss KM38
  • System Type
    Open-loop, pressure compensated
  • Pump Type
    Variable displacement, axial piston
  • Pump Flow at Maximum RPM
    25.7 gpm
  • Fan Series - FWD/REV
    Reversible
  • Number of Coolers
    1
  • Tank capacity
    21 gal
  • Recommended Oil
    Vermeer VMF Gold
  • Filtration Method
    Spin-on, pressure filter, B6 = 1000
  • System Type
    Open-loop
  • Pump Type
    Fixed displacement, gear pump
  • Pump Flow at Maximum RPM
    8.9 gpm
  • System relief pressure
    260 psi
  • System Voltage
    24 VDC
  • Battery
    Group 8-D, 1400 CCA (Qty 2)
  • System Protection
    Fused
  • Operational Faults
    Yes
  • Display Type
    LCD
  • Engine Information
    Yes
  • Machine Information
    Yes
  • Gauges
    none
  • Switches
    Push-button
  • Display Type
    LCD
  • Engine Information
    Yes
  • Machine Information
    Yes
  • Operational Faults
    Yes
  • Switches
    Sealed membrane
  • Operating Range
    Up to 300' (91.4 m)
  • Battery Type
    AA (Qty 6)
  • Radio remote type
    North America, South America, Japan: R625-60; All other regions: R524-10
  • Fender Description
    Formed steel
  • Frame Description
    DT6
  • Tongue Description
    Bolt-on to infeed structure
  • Hitch Type
    Fifth wheel
  • Brake Type
    Air-actuated with spring-applied parking brake
  • Trailer Light Type
    12-24V LED
  • Number of Axles
    3
  • Suspension Type
    Air-ride
  • Manufacturer - Option One
    Hendrickson
  • Capacity per Axle
    20000 lbs
  • Tires - Option One
    255/70R22.5 duals
  • Wheels - Option One
    22.5"x8.3" hub-piloted steel
  • Ground Clearance - Option One
    5.3 in
  • Tires - Option Two
    445/50R22.5 LR L (super singles)
  • Wheels - Option Two
    Aluminum
  • Ground Clearance - Option Two
    5.3 in
  • Track Drive Motor Type
    Hydrostatic with planetary transmission
  • Track Frame Description
    Rigid frame with reinforced box section
  • Track Type
    D5 double grouser
  • Track Drive Pump Type
    Variable displacement, axial piston
  • Track Brake Type
    Spring-applied, hydraulic-release wet disc parking brake
  • Track Length on Ground
    142" (360.7 cm)
  • Track Width - Option One
    26" (66 cm)
  • Track Width Option One - Ground Bearing Pressure - Hard Ground
    58.3 psi
  • Track Width Option One - Ground Bearing Pressure - Soft Ground
    11.4 psi
  • Type of Idler
    D5 excavator rollers
  • Number of Idlers
    20
  • Pump Flow at Maximum RPM
    57.6 gpm
  • System relief pressure
    5000 psi
  • Maximum Speed
    2.8 mph
  • Maximum Creep Speed - (Low)
    1.4 mph
  • Maximum Air Flow
    29 cfm
  • Air Compressor Brand
    Mi-T-M
  • Engine
    Honda, 11.7 hp
  • Maximum Pressure
    175 psi
  • Tank capacity (5th wheel)
    30 gal
  • Preventative Maintenance
    Yes
  • Screens
    Yes
  • Special Tools Group
    Yes
  • Extended Warranty
    Yes
  • Special Paint
    Yes
  • Air Compressor
    Yes
  • Tips
    Yes
  • Magnetic discharge conveyor pulley
    Yes
  • Vermeer Confidence Plus Asset Protection Program
    Optional
  • Feed Table Width
    60 in
  • Feed Table Length - Option One
    19 ft
  • Loading Height
    6 ft
  • Flare Construction
    Integrated with infeed
  • Feed Conveyor Type
    Welded slat chain
  • Drive Type
    Radial piston motor
  • Drive Roller Construction
    Welded steel
  • Front Idler Roller Construction
    Self-cleaning steel auger
  • Infeed Floor Construction
    Welded steel with replaceable UHMW wear plates
  • Infeed Roller Width
    56.3 in
  • Infeed Roller Weight
    2460 lbs
  • Infeed Roller Diameter
    36.1 in
  • Maximum Feed Height
    50 in
  • Material Type
    Fabricated steel
  • Tooth Design
    Serrated bars
  • Number of Teeth
    12
  • Drive Motor
    Fixed displacement, geroler
  • Drive Planetary
    (Qty 2) 34.2:1
  • Feed Roller Down Pressure
    Adjustable
  • Feed opening
    38-in (96.5-cm) high x 56.4-in (143.3-cm) wide
  • Infeed roller weight with arm
    4945 lbs
  • Drum Weight
    6707.5 lbs
  • Depth of Cut
    Adjustable: 1.125 in (2.86 cm) to 1.5 in (3.81 cm)
  • Number of Knives
    14
  • Knife Thickness
    .625 in (1.6 cm)
  • Useable Edges
    1
  • Material
    A8 mod chipper steel
  • Number of Bolts/Knife
    2
  • Replaceable Threaded Knife Block
    Yes
  • Number of Pockets
    14
  • Shaft diameter
    6.5 in
  • Shaft Retention Type
    Keyless bushing
  • Drum Weight
    6707.5 lbs
  • Depth of Cut
    Adjustable: .125 in (.31 cm) to 1 in (2.5 cm)
  • Number of Knives
    14
  • Knife Thickness
    .625 in (1.6 cm)
  • Useable Edges
    1
  • Material
    A8 mod chipper steel
  • Number of Bolts/Knife
    4
  • Replaceable Threaded Knife Block
    Yes
  • Number of Pockets
    14
  • Shaft diameter
    6.5 in
  • Shaft Retention Type
    Keyless bushing
