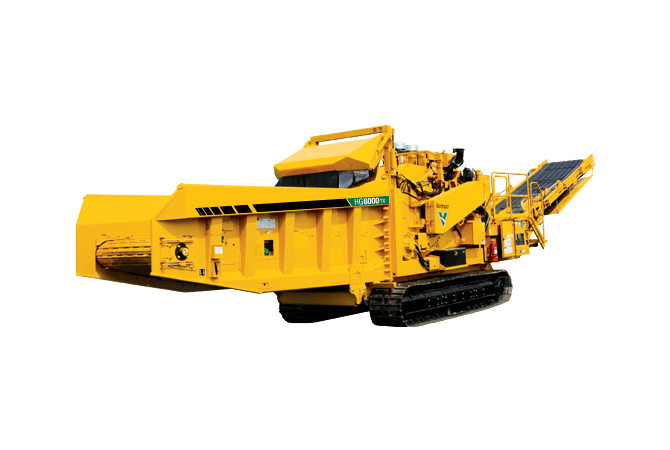

HG6000TX Horizontal Grinder
  • Productivity meets jobsite mobility
  • Robust build quality for confident longevity
  • Maintenance-friendly design optimizes serviceability
  • Equipped with Vermeer innovations to help protect your investment and optimize efficiency
REQUEST OFFER

Let us help you get the job done efficiently and effectively!

Features & Benefits

1

The Series III duplex drum is built off the proven cutting performance of previous Vermeer duplex drum designs and makes maintenance more convenient with enhancements such as an independently secured wedge system and enhanced drum balancing.

2

Maximize feeding capability with machine sidewalls that provide optimal flow of material and minimize operator interaction.

3

The feed roller planetary is fully enclosed for protection from debris and offers a tighter clearance between the feed roller and mill housing, helping reduce material blockage and drag on the feed roller circuit.

4

The track-driven grinder offers onsite mobility with a remote control for easy maneuverability. The DT6 optional integrated dolly transport system eliminates the need for a dedicated trailer to move between sites.

5

Maximize productivity thanks to the exclusive Vermeer SmartGrind system, which automatically controls grinding speed based on engine rpm levels.

6

Machine damage caused by metal contaminants entering the hammermill can be costly. The Vermeer Damage Defense system helps protect your machine by detecting certain metal contaminants.

7

An industry-leading, full-function, wireless remote control lets you adjust machine settings from the cab as conditions change, including control of the infeed settings, engine droop, conveyor height and more.

8

Top-loading screens are designed to give operators easy access.

9

Reduce the quantity and distance of thrown material debris with the Thrown Object Deflector (TOD), strategically placed to reduce interference when loading over-length material.

10

VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real time data to make smarter decisions, and help maximize productivity and profitability.

Units:

SPECIFICATIONS

  • Maximum Length - Transport
    37.3 ft
  • Maximum Length - Transport with Dolly
    45.8 ft
  • Maximum Length (Operation)
    54.5 ft
  • Maximum Width Transport - with Dolly
    9.8 ft
  • Maximum Height Transport with Dolly
    154.8 in
  • Weight
    75000 lbs
  • Tongue Weight - Engine Option 1 with Dolly
    37590 lbs
  • Axle Weight - Engine Option 1 with Dolly
    48910 lbs
  • Dolly Weight
    9500 lbs
  • Make and Model
    Caterpillar C18 Tier 4F (Stage IVB)
  • Number of Cylinders
    6
  • Gross Horsepower (Maximum)
    755 hp
  • Torque (Max)
    2582 ft-lb
  • Fuel Tank Capacity
    350 gal
  • Max Fuel Consumption
    38.3 gph
  • Fuel Type
    Ultra-low sulfur diesel (<15 ppm)
  • Air Cleaner
    Dry-type with primary and secondary elements and restriction indicator
  • Oil Filter
    Full-flow, spin-on
  • Recommended Oil
    API CJ-4, 15W-40
  • Oil Volume with Filter
    36 qt
  • Cooling Medium
    Liquid
  • Coolant Capacity (Engine and Radiator)
    22.6 gal
  • Alternator
    24 Volt
  • Fan
    (Qty 2) Hydraulically driven, reversible
  • Clutch Type
    Hydraulic-operated wet clutch with PTO
  • Clutch Engagement
    Push-button
  • Drive Belt Type
    Synchronous, carbon fiber
  • Fan - CAC
    Hydraulic (variable speed)
  • Make and Model
    Caterpillar C18 Tier 4i (Stage IIIB)
  • Number of Cylinders
    6
  • Gross Horsepower (Maximum)
    755 hp
  • Torque (Max)
    2582 ft-lb
  • Fuel Tank Capacity
    350 gal
  • Max Fuel Consumption
    39.5 gph
  • Fuel Type
    Ultra-low sulfur diesel (<15 ppm)
  • Air Cleaner
    Dry-type with primary and secondary elements and restriction indicator
  • Oil Filter
    Full-flow, spin-on
  • Recommended Oil
    API CJ-4, 15W-40
  • Oil Volume with Filter
    36 qt
  • Cooling Medium
    Liquid
  • Coolant Capacity (Engine and Radiator)
    22.6 gal
  • Air to Boil Temperature
    118 deg
  • Alternator
    24 Volt
  • Fan
    (Qty 2) Hydraulically driven, reversible
  • Clutch Type
    Hydraulic operated wet clutch with PTO
  • Clutch Engagement
    Push-button
  • Drive Belt Type
    Synchronous, carbon fiber
  • Sound Power
    122 dB(A)
  • Make and Model
    Caterpillar C18 Tier 3
  • Number of Cylinders
    6
  • Gross Horsepower (Maximum)
    630 hp
  • Torque (Max)
    2041 ft-lb
  • Fuel Tank Capacity
    350 gal
  • Max Fuel Consumption
    34.6 gph
  • Fuel Type
    Diesel
  • Air Cleaner
    Dry-type with primary and secondary elements and restriction indicator
  • Oil Filter
    Full-flow, spin-on
  • Recommended Oil
    API CJ-4, Viscosity dependent on startup temperature
  • Oil Volume with Filter
    36 qt
  • Cooling Medium
    Liquid
  • Coolant Capacity (Engine and Radiator)
    21.3 gal
  • Alternator
    24 Volt
  • Fan
    (Qty 2) Hydraulically driven, reversible
  • Clutch Type
    Hydraulic operated wet clutch with PTO
  • Clutch Engagement
    Push button
  • Drive Belt Type
    Synchronous, carbon fiber
  • Sound Power
    119.8 dB(A) - Deluxe exhaust system
  • Thrown Object Deflector
    Standard
  • Deflector Position
    Variable
  • Tip Diameter
    36.4 in
  • Millbox Opening
    60" W x 32" H (152.4 cm W x 81.3 cm H)
  • Drum Diameter
    28 in
  • Drum Cutting Width
    62.4 in
  • Drum Skin Thickness
    1.5 in
  • Drum Speed
    1086 rpm
  • Bearing Type
    Double row, spherical roller
  • Bearing - Inner Race Diameter
    5.5 in
  • Number of Hammers
    10
  • Number of Tips
    20
  • Center Retention Pin Dimensions
    2" diameter x 75.3" L (5.1 cm diameter x 191.3 cm L)
  • Drum Weight
    4741 lbs
  • Tip types
    Premium wide
  • Drum Cutting Width
    63 in
  • Millbox Opening
    60
  • Drum Diameter
    34.3 in
  • Drum Skin Thickness
    1.5 in
  • Drum Speed
    683 rpm
  • Bearing Type
    Spherical
  • Bearing - Inner Race Diameter
    5.5 in
  • Drum Weight
    5946 lbs
  • Depth of Cut
    Adjustable: .125 in (.31 cm) to 1 in (2.5 cm)
  • Number of Knives
    28
  • Knife Thickness
    .625 in (1.6 cm)
  • Useable Edges
    1
  • Material
    A8 mod chipper steel
  • Number of Bolts/Knife
    2
  • Replaceable Threaded Knife Block
    Yes
  • Number of Pockets
    14
  • Shaft diameter
    6.5 in
  • Shaft Retention Type
    Keyless bushing
  • Number of Screens
    2
  • Screen Weight
    470 lbs
  • Screen Dimensions
    3/4" (1.9 cm) thick
  • Screen Type
    Fabricated out of abrasion resistant steel
  • Screen Area
    3317 sq in
  • Number of Sides
    1
  • Millbox Lid Liner Dimensions
    Abrasion resistant steel
  • Liner Dimensions
    1" thick x 5.6" W x 65.4" L (2.5 cm thick x 14.2 cm W x 166.1 cm L)
  • Anvil Type
    Fabricated steel with replaceable wear surfaces
  • Anvil Dimensions
    22.8"x 4.1"x 80.8" (57.9 cm x 10.4 cm x 205.2 cm)
  • Millbox lid liner
    Abrasion-resistant steel
  • Splice
    R2-stainless steel or Super splice
  • Length
    81.3 ft
  • Width
    48 in
  • Belt Design
    3 ply - 330# or straight warp single ply 330# both with V cleat
  • Return Roller Quantity
    4
  • Idler Roller Diameter
    12 in
  • Idler Roller Bearing
    1-15/16, 4-bolt flange
  • Standard Drive Roller Diameter
    12.8 in
  • Magnetic Drive Roller Diameter
    12.8 in
  • Drive Motor
    Fixed displacement, geroler
  • Drive Motor Bearings
    1-15/16, 4-bolt flange
  • Belt Speed
    780 ft/min
  • Load Height
    14 ft
  • Number of Coolers
    2 (Implement/Track)
  • Tank capacity
    100 gal
  • Recommended Oil
    Vermeer HyPower 68
  • Filtration Method
    Dual in-tank return filters with suction strainer
  • System Type
    Open-loop, pressure- and flow-compensated
  • Pump Type
    Variable displacement, axial piston
  • Pump Flow at Maximum RPM
    32.4
  • System Relief Pressure
    4500 psi
  • System Relief Pressure
    3000
  • System Type
    Open-loop
  • Pump Type
    Fixed displacement, gear pump
  • Pump Flow at Maximum RPM
    25.7 gpm
  • Motor Series
    Char-Lyn 6000 Series, geroler
  • Motor Series
    Radiator-Permco M197 Series; CAC-Turolla OCG SNM2 Series
  • System Type
    Open-loop, pressure- and flow-compensated
  • Pump Type
    Variable displacement, axial piston
  • Pump Flow at Maximum RPM
    36.2 gpm
  • Fan Series - FWD/REV
    Reversible
  • Number of Coolers
    1
  • Tank capacity
    18 gal
  • Recommended Oil
    VMF Gold
  • Filtration Method
    Spin-on, pressure filter, B6 = 1000
  • System Type
    Open-loop
  • Pump Type
    Fixed displacement, gear pump
  • Pump Flow at Maximum RPM
    12.4 gpm
  • System relief pressure
    260 psi
  • System Voltage
    24 Volt
  • Battery
    Group 8-D, 1155 CCA (Qty 2)
  • System Protection
    Fused
  • Operational Faults
    Yes
  • Display Type
    LCD
  • Engine Information
    Yes
  • Machine Information
    Yes
  • Gauges
    Two, fuel level and hydraulic pressure
  • Switches
    Moisture-proof, toggle style
  • Display Type
    LCD
  • Engine Information
    Yes
  • Machine Information
    Yes
  • Operational Faults
    Yes
  • Switches
    Sealed membrane
  • Operating Range
    Up to 300' (91.4 m)
  • Battery Type
    AA (qty 6)
  • Channel Setting
    50 channels
  • Radio remote type
    R524
  • Fender Description
    Optional bolt-on formed steel
  • Frame Description
    Unit body construction
  • Tongue Description
    Bolt-on to infeed structure
  • Hitch Type
    Fifth wheel
  • Brake Type
    Air-actuated with spring-applied parking brake
  • Trailer Light Type
    12-24 V LED
  • Number of Axles
    3
  • Suspension Type
    Air-ride
  • Manufacturer - Option One
    Hendrickson
  • Capacity per Axle
    20000 lbs
  • Tires - Option One
    255/70R22.5 Duals
  • Wheels - Option One
    22.5"x 8.3" (57.2 cm x 21 cm) Hub piloted steel
  • Ground Clearance - Option One
    5.3 in
  • Track Frame Description
    Rigid frame with reinforced box section.
  • Track Type
    D5 double grouser
  • Track Drive Pump Type
    SauerDanfoss Series H1
  • Track Brake Type
    Multidisk parking brake (spring activated)
  • Track Length on Ground
    142" (360.7 cm)
  • Track Width - Option One
    26" (66 cm)
  • Track Width Option One - Ground Bearing Pressure - Hard Ground
    55.6 psi
  • Track Width Option One - Ground Bearing Pressure - Soft Ground
    10.2 psi
  • Track Width Option Two - Ground Bearing Pressure - Option
    13.2 psi
  • Track Width Option Two - Ground Bearing Pressure - Option Two
    72.2 psi
  • Type of Idler
    D5 excavator rollers
  • Number of Idlers
    20
  • Pump Flow at Maximum RPM
    43 gpm
  • System relief pressure
    5000 psi
  • Maximum Speed
    2.6 mph
  • Low Speed Travel in Creep Mode
    1 mph
  • Maximum Air Flow
    29 cfm
  • Air Compressor Brand
    Mi-T-M
  • Engine
    Honda, 11.7 hp (8.7 kW)
  • Maximum Pressure
    175 psi
  • Tank capacity (5th wheel)
    30 gal
  • Preventative Maintenance
    Optional
  • Screens
    Yes
  • Special Tools Group
    Yes
  • Extended Warranty
    Yes
  • Special Paint
    Yes
  • Air Compressor
    Optional
  • Tips
    Yes
  • Magnetic discharge conveyor pulley
    Yes
  • Vermeer Confidence Plus Asset Protection Program
    Optional
  • Feed opening
    32-in (81.3-cm) high x 56.4-in (143.3-cm) wide
  • Infeed roller weight with arm
    3350 lbs
  • Feed opening
    32-in (81.3-cm) high x 56.4-in (143.3-cm) wide
  • Infeed roller weight with arm
    3483 lbs
