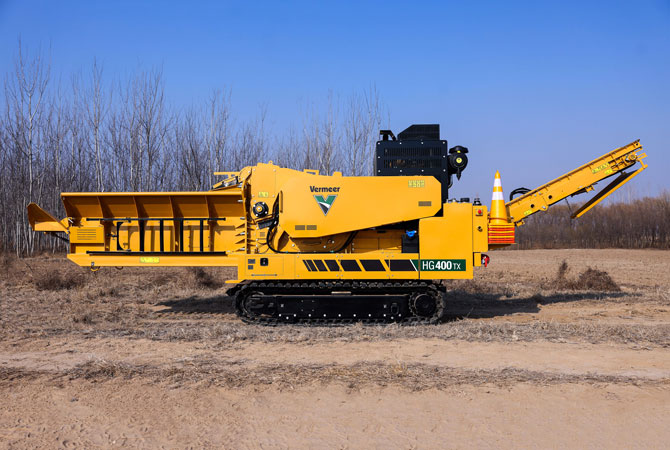

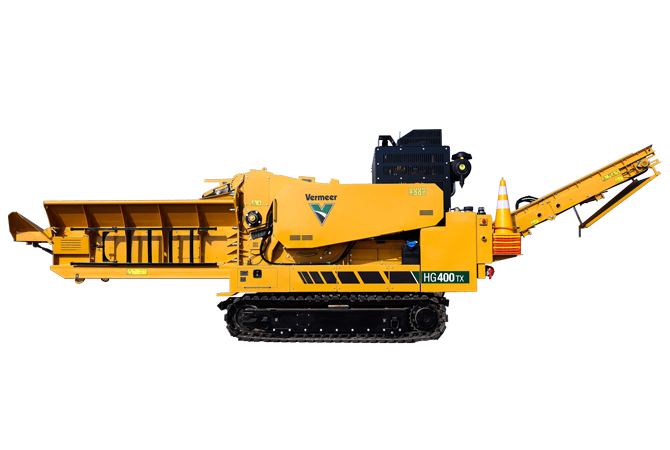

HG400TX Horizontal Grinder
  • Entry level grinder for arborists and recycling firms to process green waste, composting or land clearing in small, narrow jobsites
  • Tracks facilitate enhanced maneuverability around different terrains with ease and stability
  • 173-hp (129-kW) CAT engine enables it to process difficult materials efficiently
  • Various screen and grinder tip options are available, making this grinder suitable for a variety of applications
REQUEST OFFER

Let us help you get the job done efficiently and effectively!

Features & Benefits

1

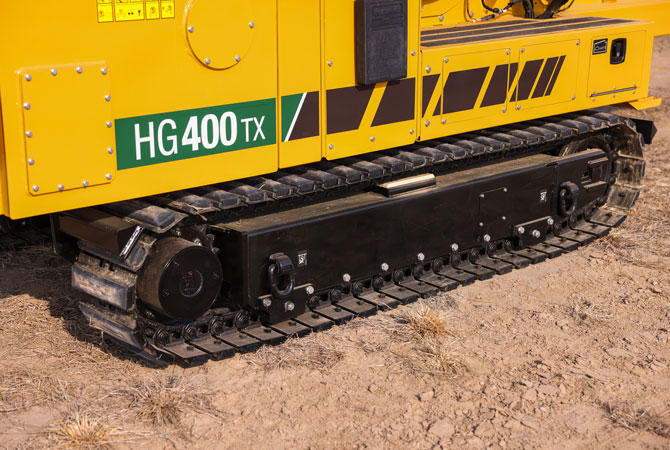

Steel tracks facilitate enhanced jobsite mobility and ease of transportation between sites. Designed with 220 mm of ground clearance, the HG400TX can traverse different terrains with ease.

2

Materials and green waste can be grinded more thoroughly to meet various application needs.

3

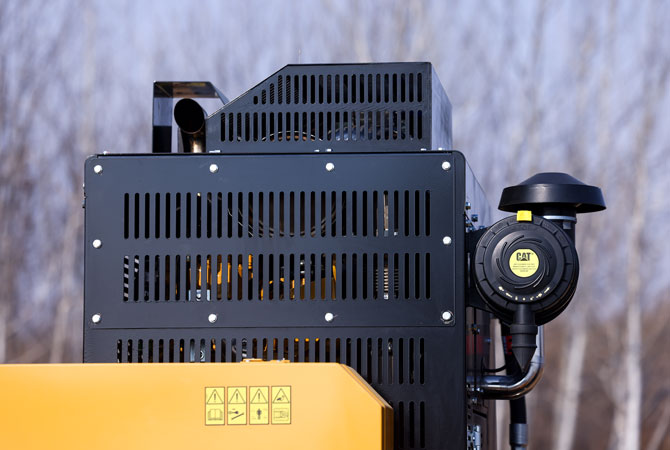

173-hp (129-kW) CAT Stage V/T4F engine that provides high horsepower to process difficult material efficiently.

4

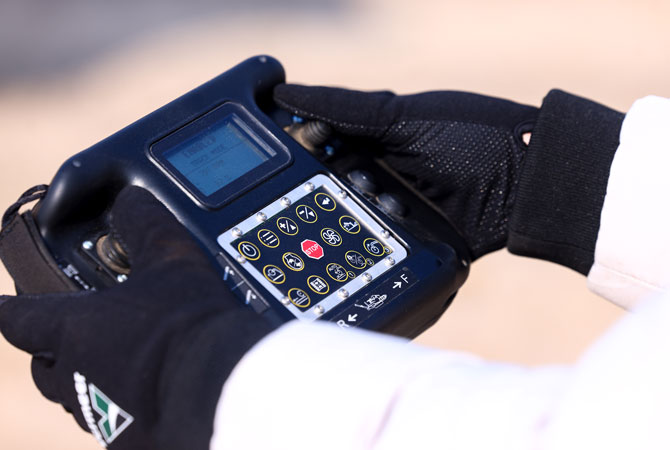

The HG400TX comes with a full function wireless remote control for operator safety, visibility and feedcrush management. The feedcrush function on the remote maximizes efficiency of processing material.

5

Various screens and grinder tips options are available for different application needs. Different end products of varying sizes can be produced using the diverse range of screens and grinder tips, thus allowing for consistent output and maintaining end product quality.

6

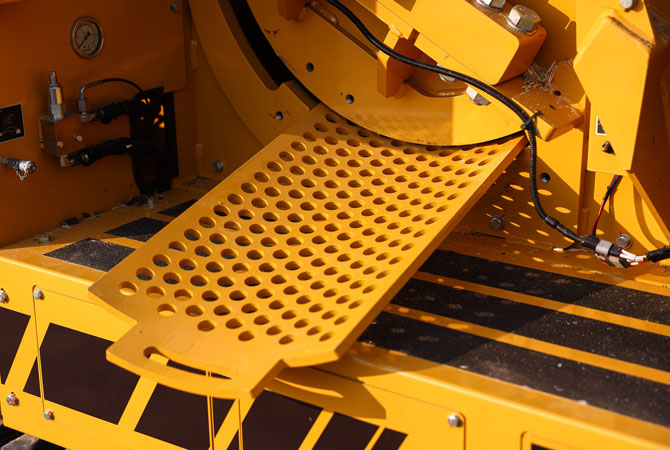

Side load screen design with one screen on top of another and can be loaded in from the side manually. This convenient design results in easier changes, allowing for product sizing adjustments to be made in less time.

Units:

SPECIFICATIONS

  • Maximum Length - Transport
    26.2 ft
  • Weight
    17600 lbs
  • Maximum Width (Transport)
    6.6 ft
  • Maximum Height (Transport)
    8.5 ft
  • Make and Model
    Caterpillar C4.4-C173
  • Number of Cylinders
    4
  • Gross Horsepower (Maximum)
    173 hp
  • Torque (Max)
    553.2 ft-lb
  • Fuel Tank Capacity
    50 gal
  • Max Fuel Consumption
    9.5 gph
  • Fuel Type
    Diesel
  • Air Cleaner
    1
  • Oil Filter
    2
  • Recommended Oil
    CAT DEO-ULS SAE 10W-30, CJ-4
  • Coolant Capacity (Engine and Radiator)
    6.9 gal
  • Alternator
    12V-150A
  • Fan
    1
  • Clutch Type
    Auto clutch
  • Clutch Engagement
    Hydraulic automatic
  • Drive Belt Type
    SPB3900La
  • Sound Power
    118 dB(A)
  • Oil volume with filter
    3.7 gal
  • Fan - CAC
    1
  • Thrown Object Deflector
    1
  • Curtain description
    40.5 cm x 63.5 cm (15.9 in x 25 in)
  • Millbox Opening
    40.5 cm x 63.5 cm (15.9 in x 25 in)
  • Drum Diameter
    31.3 in
  • Drum Cutting Width
    28.5 in
  • Drum Skin Thickness
    .9 in
  • Drum Speed
    1100 rpm
  • Tip Speed
    1100 rpm
  • Bearing Type
    Double row cylindrical bearing
  • Bearing - Inner Race Diameter
    .3 in
  • Number of Tips
    15
  • Tip option 1
    Tips
  • Tip option 2
    Bear knife
  • Tip option 3
    Shaper
  • Drum Weight
    905 lbs
  • Tip speed (Duplex)
    9048 ft/min
  • Number of Screens
    2
  • Screen Type
    Square
  • Number of Sides
    2
  • Anvil Type
    Fix
  • Anvil Dimensions
    2
  • Screen Weight
    <55 lb (25 kg)
  • Splice
    Yes
  • Length
    34.4 ft
  • Width
    17.7 in
  • Return Roller Quantity
    1
  • Idler Roller Diameter
    .2 in
  • Idler Roller Bearing
    2
  • Standard Drive Roller Diameter
    7.8 in
  • Magnetic Drive Roller Diameter
    7.8 in
  • Drive Motor
    1
  • Drive Motor Bearings
    2
  • Belt Speed
    725 ft/min
  • Load Height
    6.9 ft
  • Number of Coolers
    1
  • Tank capacity
    53 gal
  • Recommended Oil
    HM68
  • Filtration Method
    Filter
  • Number of Coolers
    1
  • Tank capacity
    40 gal
  • Recommended Oil
    HM68
  • Filtration Method
    Filter element
  • Pump Type
    Gear pump
  • System relief pressure
    3000 psi
  • System Voltage
    12
  • Battery
    1
  • System Protection
    Yes
  • Display Type
    Liquid crystal display
  • Engine Information
    Yes
  • Machine Information
    Yes
  • Operational Faults
    Yes
  • Switches
    Yes
  • Operating Range
    98.4 ft (30 m)
  • Battery Type
    Maintenance-free battery
  • Channel Setting
    Yes
  • Radio remote type
    Wireless
  • Frame Description
    Undercarriage
  • Track Drive Motor Type
    Planetary motor
  • Track Frame Description
    Rigid frame
  • Track Type
    Double grouser
  • Track Drive Pump Type
    Gear pump
  • Track Brake Type
    Normally closed
  • Track Length on Ground
    2055 mm
  • Track Width - Option One
    350 mm
  • Track Width Option One - Ground Bearing Pressure - Hard Ground
    8.7 psi
  • Type of Idler
    Spring-applied, hydraulically-released
  • Number of Idlers
    2
  • Pump Flow at Maximum RPM
    21.1 gpm
  • System relief pressure
    3000 psi
  • Maximum Speed
    .6 mph
  • Screens
    6 types
  • Tips
    5 types
  • Feed Table Width
    48.6 in
  • Feed Table Depth
    17.6 in
  • Feed Table Length - Option One
    7.6 ft
  • Feed Table Capacity
    1.3 cu yd
  • Loading Height
    3.9 ft
  • Feed Conveyor Type
    Steel chain
  • Drive Type
    Hydraulic motor
  • Drive Roller Construction
    Steel
  • Front Idler Roller Construction
    Steel
  • Infeed Floor Construction
    Steel
  • Infeed Roller Length
    61.7 in
  • Infeed Roller Width
    38.1 in
  • Infeed Roller Weight
    295 lbs
  • Infeed Roller Diameter
    15 in
  • Maximum Feed Height
    15.9 in
  • Material Type
    Steel
  • Number of Teeth
    15
  • Drive Motor
    2
  • Feed Roller Down Pressure
    10 MPa
  • Feed opening
    40.5 cm x 63.5 cm (15.9 in x 25 in)
  • Infeed roller weight with arm
    868 lbs
