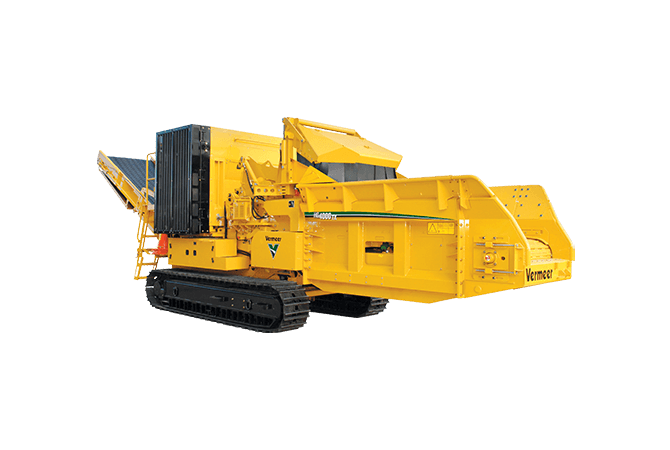

HG4000TX Horizontal Grinder
  • Improved efficiency
  • Optimize cutting performance
  • Ease of accessing machine
  • Safety
  • Maneuver challenging ground conditions
  • Ease of screen changes
REQUEST OFFER

Let us help you get the job done efficiently and effectively!

HG4000TX Horizontal Grinder
HG4000TX Horizontal Grinder - Image 2
HG4000TX Horizontal Grinder - Image 3
HG4000TX Horizontal Grinder - Image 4
HG4000TX Horizontal Grinder - Image 5

Features & Benefits

1

The exclusive Vermeer SmartGrind system automatically controls grinding speed based on engine rpm levels, helping increase productivity.

2

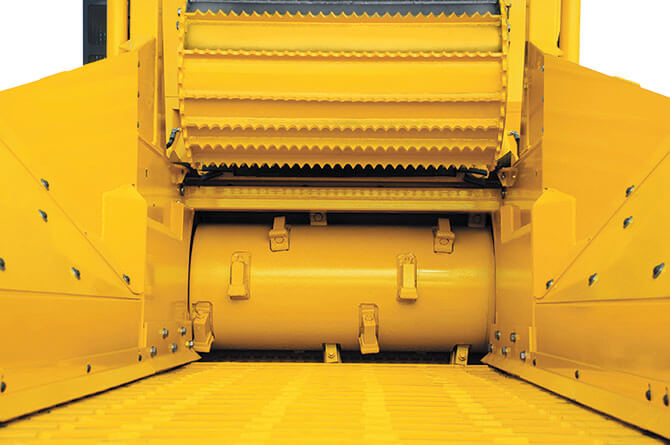

The patented duplex drum system with reversible hammers and cutter blocks that simplify maintenance, quality of cutting and double wear life.

3

Top-loading screens are designed to give operators easy access.

4

Thrown object deflector (TOD) reduces the quantity and distance of thrown debris.

5

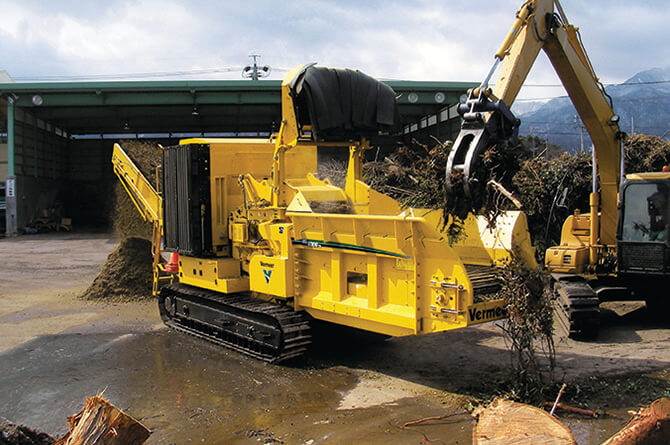

The track-driven grinder offers onsite mobility with a remote control. The HG4000TX is designed with 16 in (40.6 cm) of ground clearance, enhancing the unit’s ability to traverse difficult terrain.

Units:

SPECIFICATIONS

  • Maximum Length - Transport
    37.2 ft
  • Make and Model
    Caterpillar C13
  • Number of Cylinders
    6
  • Gross Horsepower (Maximum)
    440 hp
  • Torque (Max)
    1483 ft-lb
  • Fuel Tank Capacity
    225 gal
  • Max Fuel Consumption
    22.6 gph
  • Fuel Type
    Diesel
  • Air Cleaner
    2 stage
  • Oil Filter
    Spin on remote
  • Recommended Oil
    API CC/CD
  • Oil Volume with Filter
    8 qt
  • Cooling Medium
    Liquid
  • Coolant Capacity (Engine and Radiator)
    18.3 gal
  • Air to Boil Temperature
    133 deg
  • Fan
    Standard, reversible flex
  • Clutch Type
    PT-Tech electronically controlled dry
  • Clutch Engagement
    Engaged dry-clutch
  • Drive Belt Type
    V-belt
  • Sound Power
    112.70 dB(a) relPW
  • Thrown Object Deflector
    Standard
  • Deflector Position
    Variable
  • Tip Diameter
    28.6 in
  • Drum Diameter
    22.5 in
  • Drum Cutting Width
    51.2 in
  • Drum Skin Thickness
    1.5 in
  • Drum Speed
    1050 rpm
  • Tip Speed
    7862 rpm
  • Bearing Type
    Double-row, spherical roller
  • Number of Hammers
    8
  • Number of Tips
    16
  • Center Retention Pin Dimensions
    2
  • Number of Wipers
    1 per side
  • Drum Cutting Width
    51.2 in
  • Drum Diameter
    22.5 in
  • Tip Diameter
    28.6 in
  • Drum Skin Thickness
    1.5 in
  • Drum Speed
    1050 rpm
  • Tip Speed
    7862 rpm
  • Bearing Type
    Double-row, spherical roller
  • Number of Hammers
    8
  • Number of Tips
    16
  • Center Retention Pin Dimensions
    2
  • Number of Wipers
    1 per side
  • Number of Screens
    2
  • Screen Weight
    398 lbs
  • Screen Dimensions
    3/4" (1.9 cm) thick
  • Screen Type
    Fabricated out of abrasion-resistant steel
  • Screen Area
    1662 sq in
  • Number of Sides
    1
  • Anvil Type
    Removable weldment
  • Splice
    FLEXCO R2
  • Length
    52.5 ft
  • Width
    48 in
  • Belt Design
    3-ply- 300# V-cleat
  • Return Roller Quantity
    3
  • Idler Roller Diameter
    5 in
  • Standard Drive Roller Diameter
    12.8 in
  • Magnetic Drive Roller Diameter
    12.8 in
  • Belt Speed
    500 ft/min
  • Load Height
    9.9 ft
  • Number of Coolers
    1
  • Tank capacity
    100 gal
  • Recommended Oil
    HyPower 68
  • Components
    Open-loop
  • System Type
    Gear pump
  • System Voltage
    24 Volt
  • System Protection
    Battery disconnect, circuit fuses
  • Operational Faults
    SAE J1939 recommended diagnostic codes

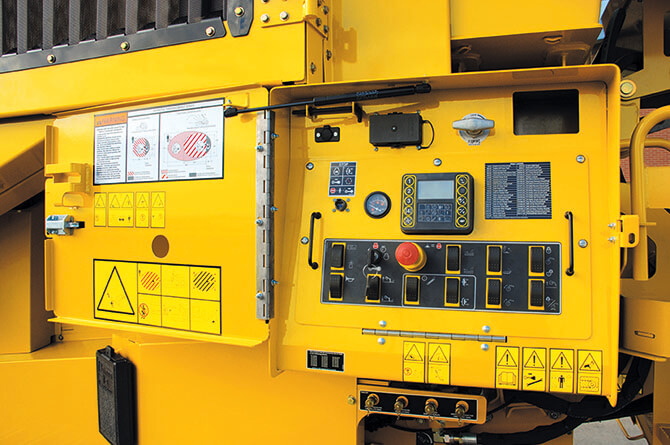

  • Display Type
    LCD monochromatic 128/64 pixel multi function
  • Engine Information
    CAT SAE J1939 CAN parameters
  • Machine Information
    Operational, diagnostic, system parameters
  • Gauges
    Fuel, diagnostic ports
  • Switches
    Rocker, membrane
  • Display Type
    LCD monochromatic multi-line
  • Engine Information
    CAT SAE J1939 CAN parameters
  • Machine Information
    Operational, diagnostic, system parameters
  • Operational Faults
    SAE J1939 recommended diagnostic codes
  • Switches
    Membrane, joystick
  • Operating Range
    Up to 300' (91.4 m)
  • Battery Type
    NiMh
  • Channel Setting
    Multi-frequency
  • Track Frame Description
    Rigid frame
  • Track Type
    D4 Double grouser
  • Track Drive Pump Type
    Closed loop
  • Track Brake Type
    Spring applied hydraulically released
  • Track Length on Ground
    136.7
  • Track Width - Option One
    20
  • Track Width Option One - Ground Bearing Pressure - Soft Ground
    9.5 psi
  • Type of Idler
    D4
  • Number of Idlers
    20
  • Maximum Speed
    3 mph
  • Maximum Creep Speed - (Low)
    1.5 mph
  • Feed Table Width
    50 in
  • Feed Table Depth
    28.2 in
  • Feed Table Length - Option One
    14 ft
  • Loading Height
    7.8 ft
  • Feed Conveyor Type
    Chain and slat
  • Infeed Roller Length
    47.5 in
  • Infeed Roller Diameter
    28 in
  • Maximum Feed Height
    25.8 in
