- CAT ® engine power
- Duplex or chip drum
- Wireless remote controller

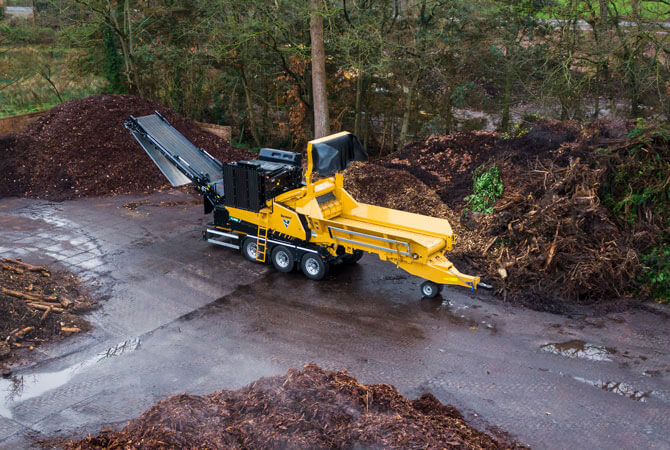

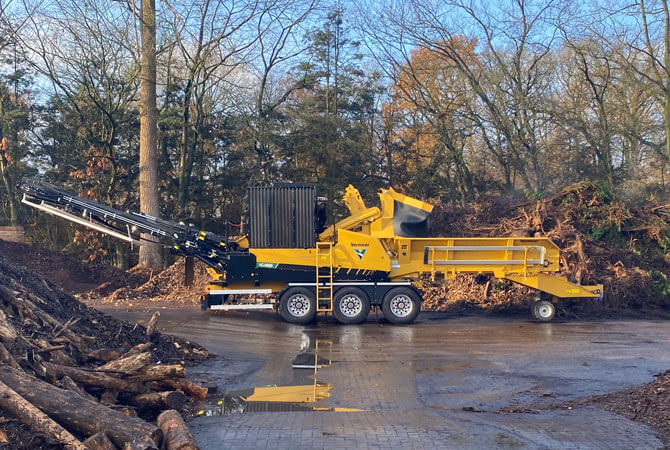

HG4000 European Configuration Horizontal Grinder
REQUEST OFFER
Let us help you get the job done efficiently and effectively!
Features & Benefits
1
The 536-hp (399.7-kW) CAT C13B engine provides the horsepower needed for processing difficult materials, while also enabling worldwide service and support for maximum productivity.
2

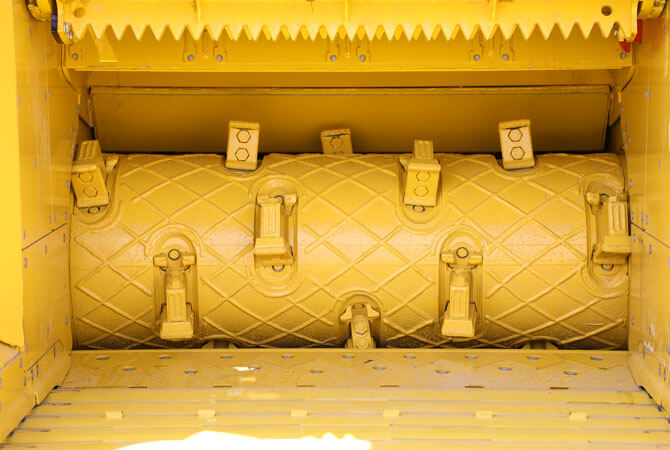

The patented Series III duplex drum offers proven cutting performance, and reversible hammers and tips that nearly double the wear life of single-sided designs. The optional chip drum produces a consistent chip end product for uses such as biofuel.
3

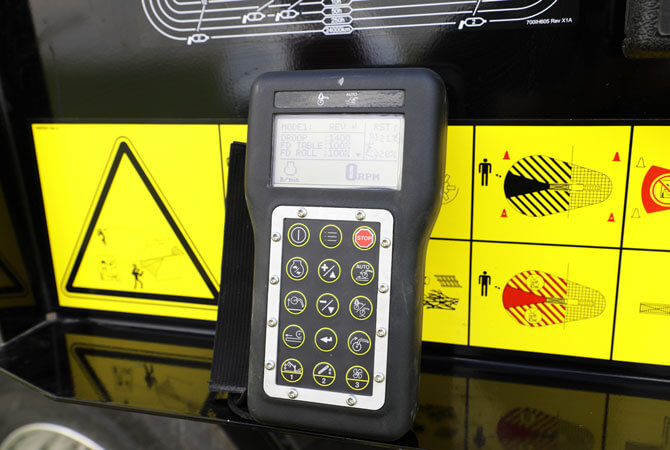

A wireless remote control unit allows the operator to run most machine functions from up to 91 m (300 ft) away. This lets the operator, from the cab adjust machine settings as the materials change, including control of the infeed settings and conveyor height.
Units:
SPECIFICATIONS
-
Maximum weight (5th wheel)52910 lbs
-
Maximum weight (Pintle)55155 lbs
-
Maximum axle weight (5th wheel)37478 lbs
-
Maximum axle weight (Pintle)52910 lbs
-
Maximum tongue weight (5th wheel)15432 lbs
-
Maximum tongue weight (Pintle)2200 lbs
-
Maximum length - Transport (5th wheel)32 ft
-
Maximum length - Transport (Pintle)37 ft
-
Maximum Height (Transport)13 ft
-
Maximum Width (Transport)8.2 ft
-
Maximum Length (Operation)52 ft
-
Air to boil temperature128° F (53° C)
-
Fan - CACElectric (variable speed)
-
Oil volume with filter9 gal
-
Diesel exhaust fluid capacity17.3 gal
-
Sound Power112.3 dB
-
Drive Belt TypeV-belt
-
Clutch EngagementPush button
-
Clutch TypeHydraulic-operated twin disc
-
FanFlexxaire (variable pitch)
-
Alternator24 V 250 A
-
Coolant Capacity (Engine and Radiator)10.5 gal
-
Cooling MediumLiquid (nitrite-free, pre-diluted 50/50)
-
Recommended OilAPI CJ-4, 15W-40
-
Oil FilterFull-flow, spin-on
-
Air CleanerDry-type with primary and secondary elements and restriction indicator
-
Fuel TypeUltra-low sulfur diesel
-
Max Fuel Consumption27.2 gph
-
Fuel Tank Capacity200 gal
-
Torque (Max)1807 ft-lb
-
Gross Horsepower (Maximum)536 hp
-
Number of Cylinders6
-
Make and ModelCAT C13B Tier 4 final/Stage V
-
Curtain descriptionRubber
-
Deflector PositionVariable
-
Thrown Object DeflectorStandard
-
Tip typesPremium wide
-
Tip speed (Duplex)9615 ft/min
-
Drum Weight5370 lbs
-
Number of WipersFour-blade spiral fan
-
Center Retention Pin Dimensions2-in (5-cm) diameter x 75.3-in (191-cm) long
-
Number of Tips18
-
Number of Hammers9
-
Bearing - Dynamic Capacity136000 lbs
-
Bearing - Inner Race Diameter4.3 in
-
Bearing TypeDouble row spherical roller
-
Drum Speed1113 rpm
-
Drum Skin Thickness1.5 in
-
Drum Cutting Width60.9 in
-
Drum Diameter22.5 in
-
Millbox Opening60-in (152.4-cm) wide x 31-in (78.7-cm) high
-
Tip Diameter31.3 in
-
Shaft Retention TypeKeyless bushing
-
Shaft diameter5 in
-
Tip speed (1-in chip)7274 ft/min
-
Number of Pockets12
-
Replaceable Threaded Knife BlockYes
-
Number of Bolts/Knife2
-
MaterialA8 mod chipper steel
-
Useable Edges1
-
Knife Thickness.625 in (1.6 cm)
-
Number of Knives12
-
Depth of CutAdjustable: .125 in (.31 cm) to 1 in (2.5 cm)
-
Drum Weight4707 lbs
-
Bearing - Dynamic Capacity136000 lbs
-
Bearing - Inner Race Diameter4.3 in
-
Bearing TypeDouble row spherical roller
-
Drum Speed842 rpm
-
Drum Skin Thickness1.3 in
-
Drum Diameter27.3 in
-
Millbox Opening60-in (152.4-cm) wide x 31-in (78.7-cm) high
-
Drum Cutting Width60 in
-
Millbox lid linerAbrasion-resistant steel
-
Screen WeightVaries
-
Anvil Dimensions6.1-in (15.6-cm) high x 73.5-in (186.7-cm) long x 13.6-in (34.5-cm) wide
-
Anvil TypeAdjustable, replaceable wear surfaces
-
Liner Dimensions62-in (157.4-cm) wide x 21.5-in (54.6-cm) high x 16-in (40.6-cm) radius
-
Number of Sides1
-
Screen Area3131 sq in
-
Screen TypeAbrasion-resistant steel
-
Screen Dimensions.75-in (1.9-cm) thick
-
Number of Screens2
-
Load Height14 ft
-
Belt Speed625 ft/min
-
Drive MotorFixed displacement
-
Magnetic Drive Roller Diameter12.8 in
-
Standard Drive Roller Diameter12.8 in
-
Idler Roller Bearing1-15/16, 4-bolt flange
-
Idler Roller Diameter12 in
-
Return Roller Quantity3
-
Belt Design3-ply, 330# with V-cleat
-
Width48 in
-
Length20 ft
-
SpliceR2 stainless steel cable
-
Filtration MethodDual return filters
-
Recommended OilVermeer Hypower 68
-
Tank capacity7.7 gal
-
Number of Coolers1
-
System Relief Pressure3000 psi (206.8 bar)
-
Pump Flow at Maximum RPM25.3 gpm (96.5 L/min)
-
Pump TypeVariable displacement, axial piston
-
System TypeOpen-loop, pressure and flow compensated
-
ComponentsDual PVG-32 valves
-
Motor SeriesTH
-
Pump Flow at Maximum RPM16.3 gpm
-
Pump TypeFixed displacement gear pump
-
System TypeOpen-loop
-
System Relief Pressure2900 psi (200 bar)
-
System TypeHydraulically-activated variable pitch
-
System ProtectionFused
-
Battery8D-MHD, 1400 CCA (qty. 2)
-
System Voltage24 Volt
-

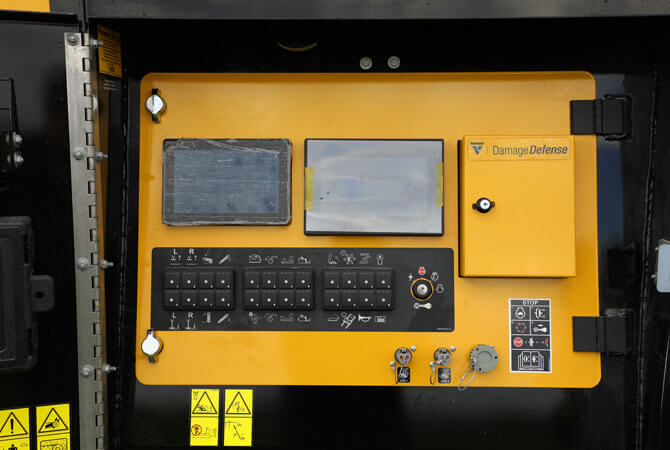

SwitchesSealed membrane CAN bus keypad
-
GaugesNo
-
Machine InformationYes
-
Engine InformationYes
-

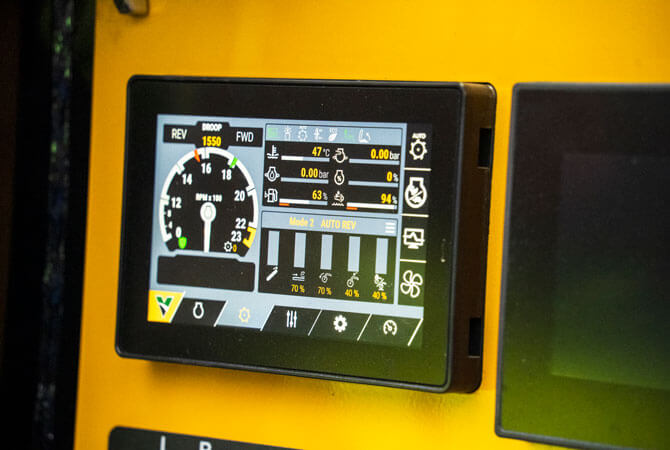

Display TypeLCD
-
Operational FaultsYes
-
Channel Setting50 channels
-
Battery TypeAA (6)
-
Operating Range300 ft (91.4 m)
-
SwitchesSealed membrane
-
GaugesNo
-
Operational FaultsYes
-
Machine InformationYes
-
Engine InformationYes
-
Display TypeLCD
-
Trailer Light Type12-24V LED
-
Brake TypeEBS
-
Hitch Type5th wheel, 5th wheel with creep drive, Pintle, Pintle with creep drive
-
Tongue DescriptionFabricated
-
Frame DescriptionUnit body construction
-
Fender DescriptionFormed steel, replaceable
-
Number of axles (Pintle)3
-
Number of axles (5th wheel)2
-
Ground Clearance - Option One17 in
-
Wheels - Option OneAluminum
-
Tires - Option One385/65R22.5
-
Capacity per Axle22400 lbs
-
Manufacturer - Option OneHutchens Industrial, Inc.
-
Suspension TypeSpring
-
Tank capacity (Pintle)31.7 gal
-
Tank capacity (5th wheel)21 gal
-
Maximum Pressure125 psi
-
EngineHonda, 9 hp (6.7 kW)
-
Air Compressor BrandMi-T-M
-
Maximum Air Flow17.2 cfm
-
Vermeer Confidence Plus Asset Protection ProgramOptional
-
Magnetic discharge conveyor pulleyYes
-
TipsYes
-
Air CompressorOptions via hitch selection
-
Special PaintOptional
-
Extended WarrantyYes
-
Special Tools GroupYes
-
ScreensYes
-
Preventative MaintenanceOptional
-

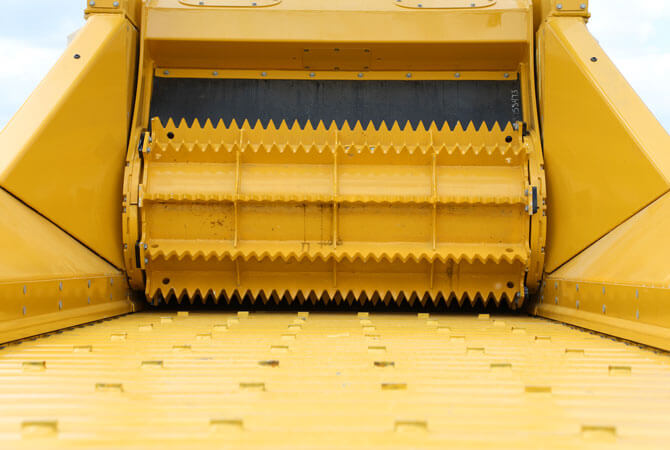

Infeed roller weight with arm2700 lbs
-
Feed opening42-in (106.7-cm) high x 60-in (152.4-cm) wide
-
Feed Roller Down PressureAdjustable
-
Drive Planetary34.2:1
-
Drive MotorFixed displacement motor/planetary
-
Number of Teeth10
-
Tooth DesignSerrated bars
-
Material TypeSteel
-
Infeed Roller Diameter28 in
-
Infeed Roller Width56 in
-
Infeed Floor ConstructionWelded steel
-
Front Idler Roller ConstructionSelf-cleaning auger
-
Drive Roller ConstructionWelded steel
-
Drive TypeFixed displacement motor
-
Material ConstructionSteel
-
Feed Conveyor TypeWelded slat chain
-
Flare ConstructionIntegrated with bolt on corner flare
-
Loading Height7.6 ft
-
Feed Table Capacity4.6 cu yd
-
Feed Table Length - Option One15 ft
-
Feed Table Depth20 in
-
Feed Table Width60 in
