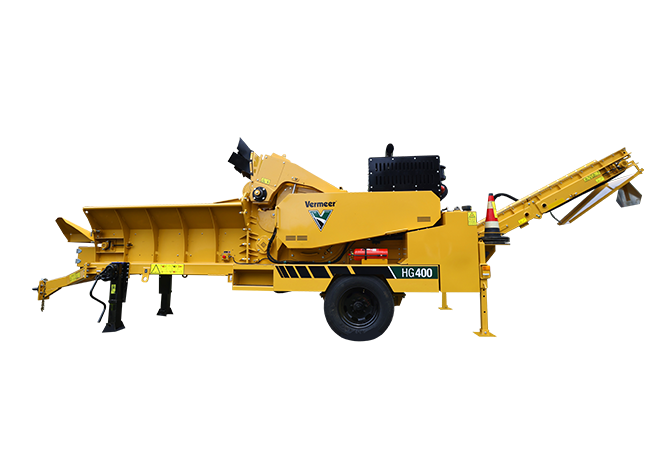

HG400 Horizontal Grinder

Global dealer support
Enhanced jobsite mobility
Lesser product sizing adjustment time
Powerful pulling force
Enhanced operating efficiency
Feeding of longer materials

REQUEST OFFER

Let us help you get the job done efficiently and effectively!

Features & Benefits

1

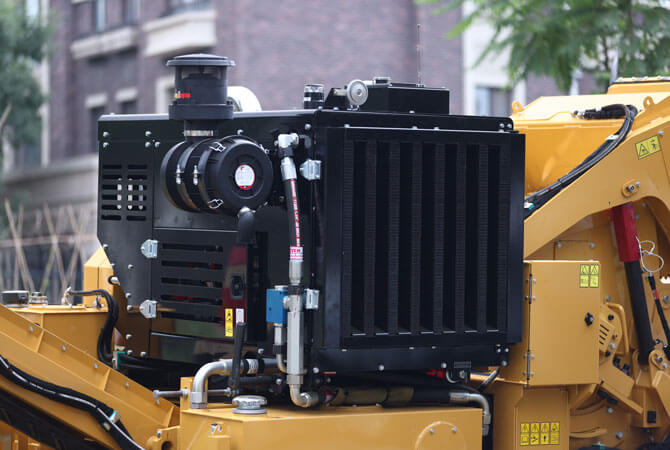

97 kW (130 hp) Tier 3 Cummins Engine.

2

7 ft (2.13 m) height folding discharge conveyor can be folded to fit into a container.

3

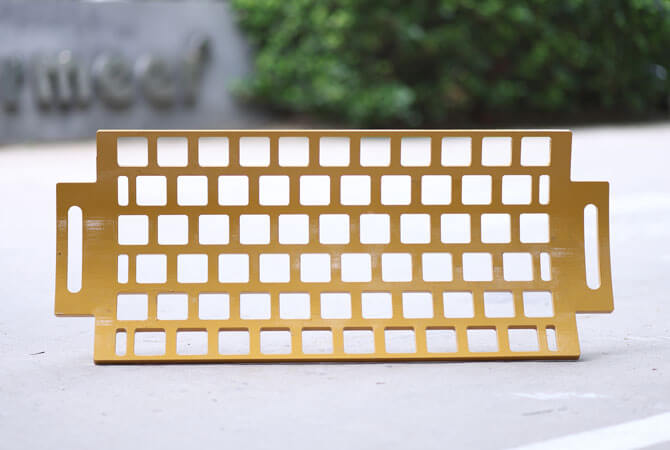

Sideload screen design with 1 screen on top of another and can be loaded in from the side.

4

Vermeer PLUS+1 control system that offers four different speed options and has an optional wireless remote control.

5

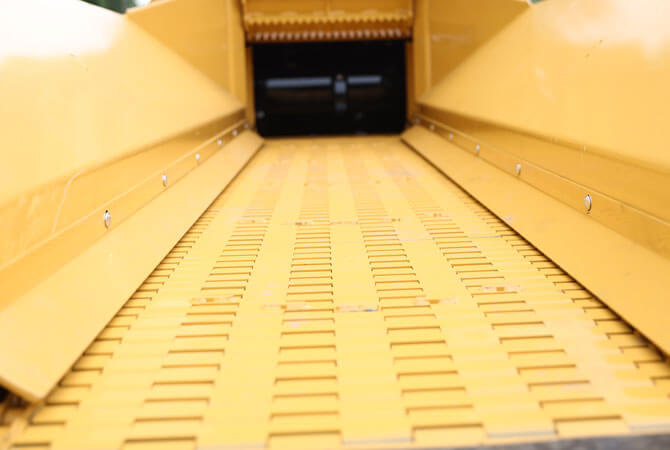

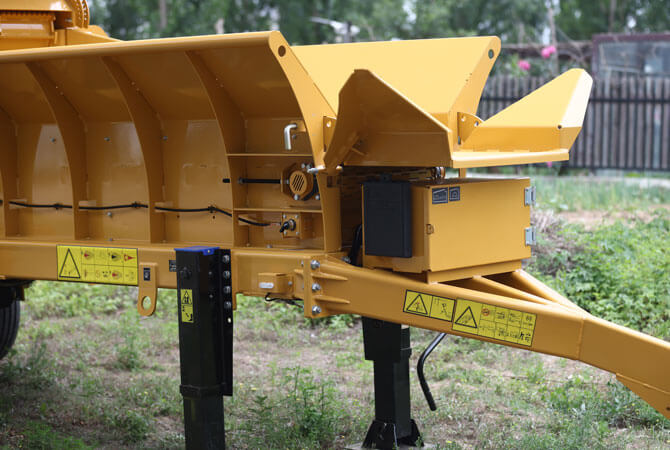

Infeed table with wide, flared walls and the infeed tailgate can be lowered for extra length.

Units: Metric Imperial

SPECIFICATIONS

GENERAL DIMENSIONS AND LENGTHS - LONG INFEED

Maximum length - transport (axle version)

29.4 ft 9 m
Maximum length - transport (stationary version)

26.6 ft 8.1 m
Maximum width - transport (axle version)

6.7 ft 2 m
Maximum width - transport (stationary version)

6.7 ft 2 m
Maximum height - transport (axle version)

8.1 ft 2.5 m
Maximum height - transport (stationary version)

8.1 ft 2.5 m
Weight (axle version)

12800 lbs 5806 kg
Weight (stationary version)

12566 lbs 5699.8 kg

ENGINE - OPTION ONE

Make and Model

Cummins QSF3.8-C130 Cummins QSF3.8-C130
Number of Cylinders

4 4
Gross Horsepower (Maximum)

130 hp 96.9 kw
Torque (Max)

398 ft-lb 539.6 Nm
Fuel Tank Capacity

51 gal 193.1 L
Max Fuel Consumption

5.8 gph 22 lph
Fuel Type

Diesel oil Diesel oil
Air Cleaner

1 1
Oil Filter

2 2
Recommended Oil

15W-40, CJ-4 15W-40, CJ-4
Oil Volume with Filter

12.7 qt 12 L
Coolant Capacity (Engine and Radiator)

1.7 gal 6.4 L
Alternator

12V-135A 12V-135A
Fan

1 1
Clutch Type

Auto clutch Auto clutch
Clutch Engagement

Hydraulic automatic Hydraulic automatic
Drive Belt Type

SPB3900La SPB3900La
Sound Power

104 dB(A) 104 dB(A)
Oil volume with filter

.2 gal .7 L
Fan - CAC

1 1

SAFETY SYSTEM

Thrown Object Deflector

1 1
Curtain description

40.5 cm x 63.5 cm 40.5 cm x 63.5 cm

DUPLEX DRUM

Millbox Opening

40.5 cm x 63.5 cm 40.5 cm x 63.5 cm
Drum Diameter

31.3 in 79.5 cm
Drum Cutting Width

25.9 in 65.8 cm
Drum Skin Thickness

.9 in 2.3 cm
Drum Speed

1170 rpm 1170 rpm
Tip Speed

1170 rpm 1170 rpm
Bearing Type

Double-row cylindrical bearing Double-row cylindrical bearing
Bearing - Inner Race Diameter

.3 in .8 cm
Number of Tips

15 15
Tip option 1

Tips Tips
Drum Weight

905 lbs 410.5 kg
Tip speed (Duplex)

9048 ft/min 2757.8 m/min

SCREENS

Number of Screens

2 2
Screen Type

Square Square
Number of Sides

2 2
Anvil Type

Fix Fix
Anvil Dimensions

2 2
Screen Weight

<55 lb (25 kg) <55 lb (25 kg)

DISCHARGE SYSTEM - SINGLE BELT DESIGN

Splice

Yes Yes
Length

34.4 ft 10.5 m
Width

18 in 45.7 cm
Return Roller Quantity

1 1
Idler Roller Diameter

.2 in .6 cm
Idler Roller Bearing

2 2
Standard Drive Roller Diameter

.8 in 2 cm
Magnetic Drive Roller Diameter

.8 in 2 cm
Drive Motor

1 1
Drive Motor Bearings

2 2
Belt Speed

725 ft/min 221 m/min
Load Height

6.9 ft 2.1 m

HYDRAULIC SYSTEM

Number of Coolers

1 1
Tank capacity

40 gal 151.4 L
Recommended Oil

HM68 HM68
Filtration Method

Filter Filter

CLUTCH

Number of Coolers

1 1
Tank capacity

40 gal 151.4 L
Recommended Oil

HM68 HM68
Filtration Method

Filter element Filter element
Pump Type

Gear pump Gear pump
System relief pressure

3000 psi 206.8 bar

ELECTRICAL SYSTEM

System Voltage

12 12
Battery

1 1
System Protection

Yes Yes

CONTROL STATION

Display Type

Liquid crystal display Liquid crystal display

RADIO REMOTE CONTROL

Engine Information

Yes Yes
Machine Information

Yes Yes
Operational Faults

Yes Yes
Switches

Yes Yes
Operating Range

98.4 ft (30 m) 98.4 ft (30 m)
Battery Type

Maintenance-free battery Maintenance-free battery
Channel Setting

Yes Yes
Radio remote type

Wireless Wireless

CHASSIS

Frame Description

Undercarriage Undercarriage
Hitch Type

3-in (76.2-mm) 3-in (76.2-mm)
Brake Type

Electrical Electrical
Trailer Light Type

LED LED

AXLE/SUSPENSION

Number of Axles

1 1
Suspension Type

Plate spring Plate spring
Capacity per Axle

12000 lbs 5443.1 kg
Tires - Option One

235/75 R17.5 235/75 R17.5
Wheels - Option One

17.5x6.75 HC 17.5x6.75 HC
Ground Clearance - Option One

7.1 in 18 cm
Number of axles (5th wheel)

1 1
Number of axles (Pintle)

1 1

OTHER OPTIONS

Screens

4 types 4 types
Tips

2 types 2 types

STANDARD INFEED SYSTEM

Feed Table Width

48.6 in 123.4 cm
Feed Table Depth

17.6 in 44.7 cm
Feed Table Length - Option One

7.6 ft 2.3 m
Feed Table Capacity

1.7 cu yd 1.3 cu m
Loading Height

3.9 ft 1.2 m
Feed Conveyor Type

Steel chain Steel chain
Drive Type

Hydraulic motor Hydraulic motor
Drive Roller Construction

Steel Steel
Front Idler Roller Construction

Steel Steel
Infeed Floor Construction

Steel Steel
Infeed Roller Length

24.3 in 61.7 cm
Infeed Roller Width

15 in 38.1 cm
Infeed Roller Weight

295 lbs 133.8 kg
Infeed Roller Diameter

15 in 38.1 cm
Maximum Feed Height

15.9 in 40.5 cm
Material Type

Steel Steel
Number of Teeth

15 15
Drive Motor

2 2
Feed Roller Down Pressure

10 MPa 10 MPa
Feed opening

40.5 cm x 63.5 cm 40.5 cm x 63.5 cm
Infeed roller weight with arm

868 lbs 393.7 kg

GENERAL DIMENSIONS AND WEIGHTS- SKID MOUNT WITH LONG INFEED

Maximum Width

82.7 in 210.1 cm
Maximum Length - Folding Conveyor

19.4 ft 5.9 m
Maximum Height - Folding Conveyor

7.9 ft 2.4 m
Weight

12567 lbs 5700.3 kg
Sound Power

104 dB(A) 104 dB(A)

HEAVY-DUTY INFEED SYSTEM

Feed opening

40.5 cm x 63.5 cm 40.5 cm x 63.5 cm
Infeed roller weight with arm

868 lbs 393.7 kg
