D20x22 S3 HDD
  • Power, speed, versatility and precise control
  • The perfect fit for working in congested urban areas
  • 12% increase in horsepower over its predecessor



REQUEST OFFER

Let us help you get the job done efficiently and effectively!

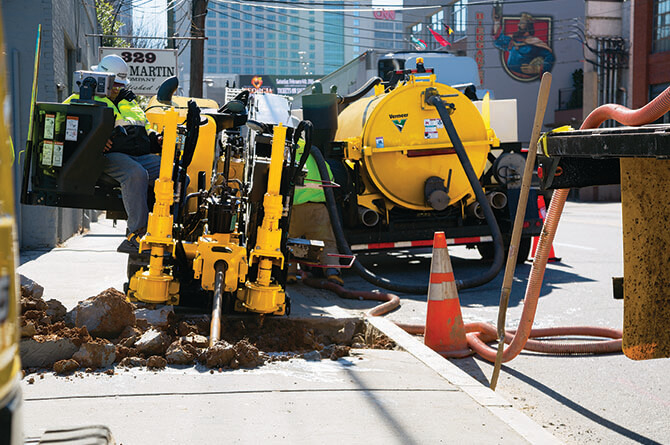

D20x22 S3 HDD

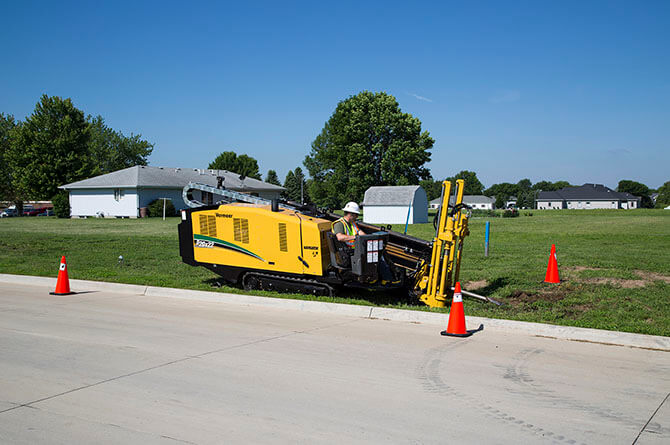

D20x22 S3 HDD - Image 2

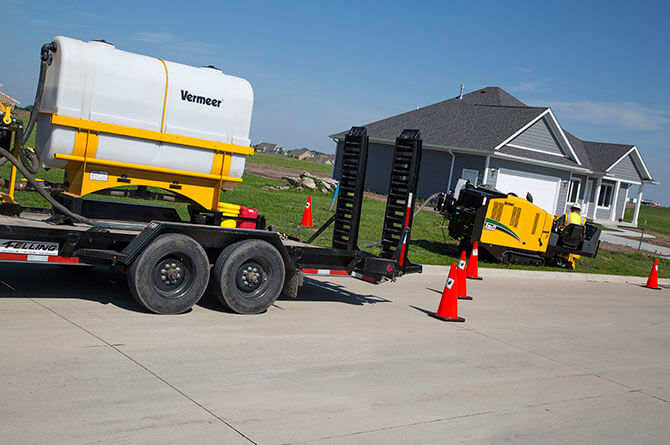

D20x22 S3 HDD - Image 3

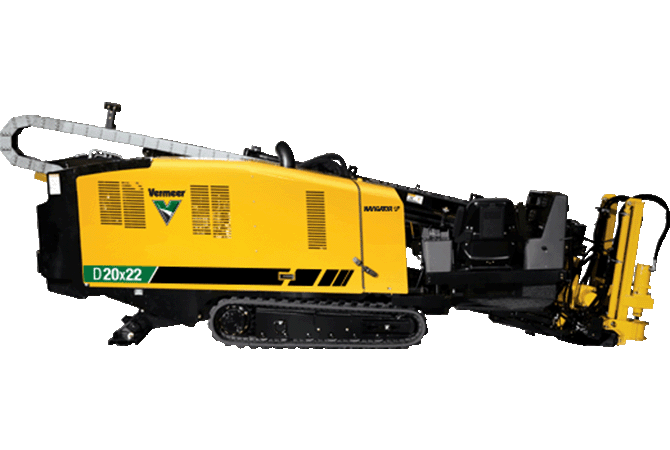

D20x22 S3 HDD - Image 4

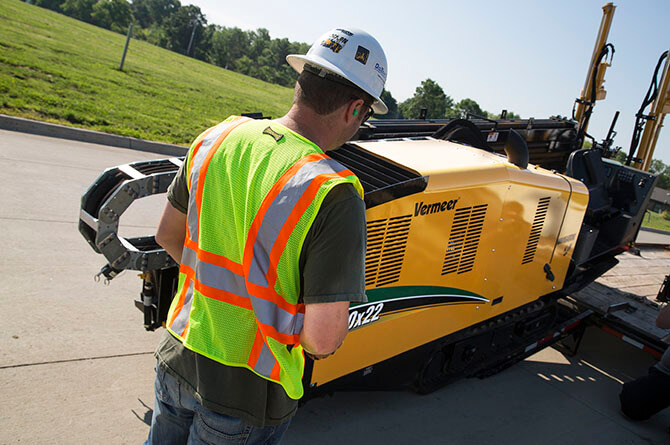

D20x22 S3 HDD - Image 5

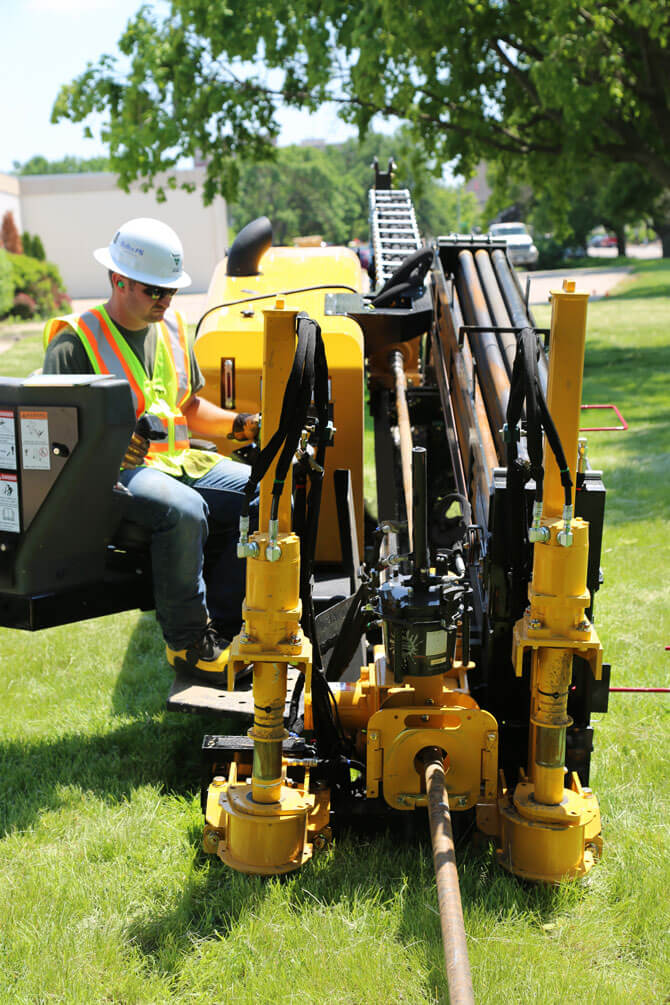

D20x22 S3 HDD - Image 6
D20x22 S3 HDD - Image 7

Features & Benefits

1

A newly designed hydraulic circuit offers additional power for drilling and maneuvering around the jobsite, helping operators power up curbs and slopes to work more efficiently.

2

The 3.3-mph (5.3-km/hr) tracking speed gets you from one setup to the next sooner.

3

The class-leading 167-fpm (50.9-m/min) carriage speed and rotational speeds of 257 rpm help you install more linear feet per day.

4

Simplify machine monitoring with onboard diagnostics.

5

Common dual joysticks on the current Vermeer drill lineup assist in operator efficiency and training.

6

VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real-time data to make smarter decisions, and help maximize productivity and profitability.

Units:

SPECIFICATIONS

  • Weight
    11700 lbs
  • Angle of Approach
    18 deg
  • Length (Minimum Transport)
    204 in
  • Width (Minimum Transport)
    47.5 in
  • Height (Minimum Transport)
    74 in
  • Fuel Type
    Low sulfur diesel
  • Make and Model
    Deutz TD2.9
  • Aspiration
    Turbocharged
  • Gross Horsepower
    74 hp
  • Maximum Engine RPM
    2600 rpm
  • Emissions rating
    Tier 4i (EU Stage IIIA)
  • Displacement
    177 cu-in
  • Cooling Method
    Liquid
  • Noise Level at Operator's Ear
    86.5 dB(A)
  • Make and Model
    Deutz TD2.9
  • Fuel Type
    Ultra-low sulfur diesel
  • Maximum Engine RPM
    2600 rpm
  • Gross Horsepower
    74 hp
  • Aspiration
    Turbocharged
  • Emissions rating
    Tier 4 Final (EU Stage IV)
  • Displacement
    177 cu-in
  • Cooling Method
    Liquid
  • Noise Level at Operator's Ear
    86.5 dB(A)
  • Make and Model
    Deutz TD2.9
  • Fuel Type
    Ultra-low sulfur diesel
  • Maximum Engine RPM
    2600 rpm
  • Gross Horsepower
    74 hp
  • Displacement
    177 cu-in
  • Cooling Method
    Liquid
  • Aspiration
    Turbocharged
  • Noise Level at Operator's Ear
    91 dB(A)
  • Emissions rating
    Tier 4 Final (EU Stage V)
  • Minimum Bore Diameter
    3 in
  • Maximum Spindle Speed at Max Engine RPM
    257 rpm
  • Automated Rod Loader
    Semi-automated
  • Drill Rack Angle
    17 deg
  • Maximum Ground Drive Speed at Maximum Engine RPM
    3.3 mph
  • Maximum Carriage Speed at Maximum Engine RPM
    160 ft/min
  • Maximum Spindle Torque (Low at Maximum Engine RPM)
    2250 ft-lb
  • Maximum Carriage Speed in Low at Maximum Engine RPM
    114 ft/min
  • Guaranteed sound power (CE-rating)
    106 dB(A)
  • Thrust
    19500 lbs
  • Pullback
    19500 lbs
  • Maximum Pressure
    750 psi
  • Maximum Flow
    25 gpm
  • Stakedown System
    Standard
  • Breakout System
    Standard hydraulic vice
  • Flow Indicator
    Standard
  • Drilling Lights
    Optional
  • Strike Alert
    Standard
  • Remote Lockout
    Standard
  • Operator Presence
    Standard
