- Fuel efficient
- Facilitates transportation of equipment
- Greater feeding efficiency
- Operator safety in mind
- Minimizes maintenance
- Enhanced productivity

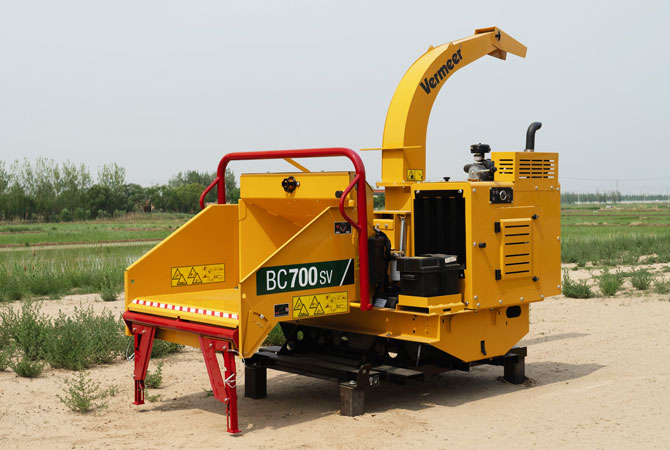

BC700SV Brush Chipper
REQUEST OFFER
Let us help you get the job done efficiently and effectively!
Features & Benefits
1
25-hp (18.6-kW) Kohler ECH740 engine that provides improved fuel economy over comparable carbureted gas engines.
2
Convenient to transport skid-mounted chassis to help overcome local road regulation restrictions.
3
Large infeed opening of 8 in x 6 in (20.3 cm x 15.2 cm) that makes feeding of irregular material efficient and minimizes the amount of saw cuts needed prior to feeding the chipper.
4
The bottom feed stop bar is strategically located for the operator to strike the bar and shut off the feed mechanism.
5
Centrifugal clutch that helps prevent belt slip when engaging the clutch, minimizing maintenance.
Units:
SPECIFICATIONS
-
Tongue Weight - Engine Option One2015 lbs
-
Length - Table Down, Tongue Extended89.1 in
-
Height74.8 in
-
Width57 in
-
Length - Feed Table Up, Tongue In66.9 in
-
Weight (without winch and hydraulic jack)2015 lbs
-
Make and ModelPerkins 403D-11
-
Gross Horsepower (Maximum)25 hp
-
Fuel Tank Capacity6 gal
-
Torque (Max)49.3 ft-lb
-
Recommended OilKohler oil or API CH4/SJ
-
Number of Cylinders3
-
Fuel TypeDiesel
-
Number of Cylinders2
-
Fuel Tank Capacity6 gal
-
Make and ModelKohler ECH740
-
Gross Horsepower (Maximum)25 hp
-
Recommended OilKohler Oil or API CH4/SJ
-
Torque (Max)41.7 ft-lb
-
Fuel TypeGasoline
-
Number of Knives2
-
Feed Roller Dimension10 in (25.4 cm)
-
Motor ManufacturerWhite Hydraulics
-
Number of Feed Roller Motors1
-
Feed Roller OrientationHorizontal
-
Number of Feed Rollers1
-
Feed Roller Clamp TypeSpring/feed roller weight
-
Pinch Point - Distance to End of Feed Table65.4 in
-
Motor Displacement14.2
-
Infeed Hopper Height22.1 in
-
Number of Knives (2)2
-
Feed Roller Minimum Distance to Drum4 in
-
Weight of Feed Roller100 lbs
-
Infeed Table Length30.2 in
-
Infeed Throat Capacity6 in x 8 in (15.2 cm x 20.3 cm)
-
Feed Speed49.4 ft/min
-
Infeed Table Width41.2 in
-
Distance from Feed Table to Ground28.1 in
-
Feed Roller Clamp Load525 lbs
-
Four Position Feed Control BarStandard
-
Bottom Feed Stop BarStandard
-
Green Hold to Run ButtonStandard
-
Reset MethodDual green hold-to-run buttons
-
Diameter2 in
-
Bottom Feed Stop Bar Diameter2 in
-
Material Thickness.1 in
-
PositionsFour positions: E-stop, Forward, Stop, Reverse
-
Bottom Feed Stop Bar Material Thickness12 in (30.48 cm)
-
Bedknife SizeHorizontal: 4 in x 8.6 in (10.2 cm x 21.9 cm); Vertical: 4 in x 5.8 in (10.2 cm x 14.6 cm)
-
Weight With Shaft176 lbs
-
Air Flow5000 cfm
-
Thickness1.3 in
-
Diameter23.9 in
-
Fixture MethodWelded
-
Number of Knives2
-
Safety Lock - Number of Positions2
-
Speed1748 rpm
-
Replaceable Threaded Knife BlockYes
-
Useable Edges2
-
Width8 in
-
Bedknife MaterialASTM A572 Grade 50
-
Material Capacity6 in
-
Knife Thickness.6 in
-
MaterialA8 chipper steel
-
ManufacturerLinkbelt
-
Dynamic Capacity5640 lbs
-
Belt Idler/TensionerSpring-loaded adjustable idler
-
Belt Type2-band 5-V profile Aramid
-
Bore1.5 in
-
TypeFlange-mounted ball type, self-aligning
-
Number of Bearings2
-
Static Capacity4460 lbs
-
Rotation TypeManual
-
Rotational LockStandard latch
-
Chute Rotation Angle270 deg
-
Deflector Thickness.1 in
-
Chute Height97.2 in
-
Side Wall Thickness.1 in
-
Bottom Thickness.1 in
-
Top Thickness.1 in
-
Filtration MethodReturn flow filtration, 10 micron
-
System relief pressure2500 psi
-
Tank capacity6.8 gal
-
Recommended Oil TypeVermeer VMF Gold
-
System TypeOpen center
-
Pump Flow at Maximum RPM3.8 gpm
-
SwitchesHold-to-run, sensitivity selector
-
BatteryGroup 26, 400 CCA
-
Standard GaugesHour meter
-
System Voltage12 volt
-
ControllerVermeer ACS CB02
