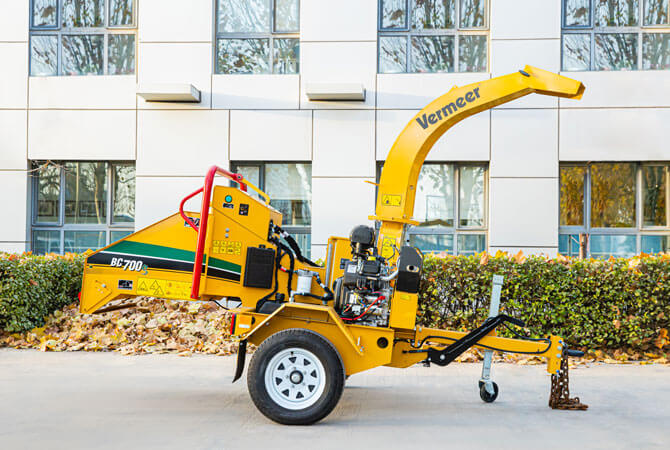

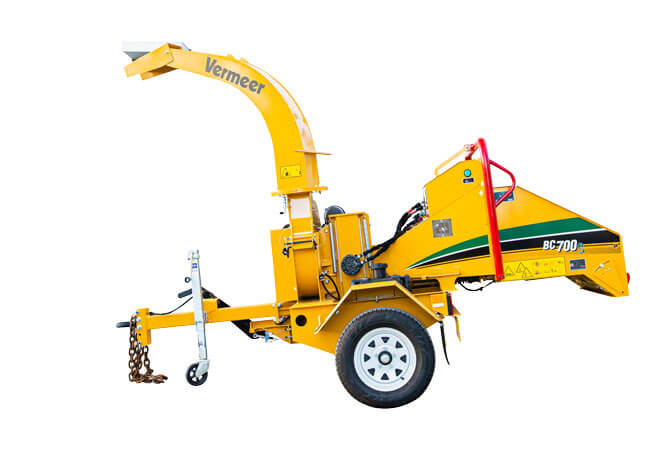

BC700S Brush Chipper

Fuel efficient
Enhanced productivity
Greater feeding efficiency
Minimizes maintenance
Operator safety in mind
Optimal transportability

REQUEST OFFER

Let us help you get the job done efficiently and effectively!

Features & Benefits

1

25-hp (18.6-kW) Kohler(R) ECH740 engine that provides improved fuel economy over comparable carbureted gas engines.

2

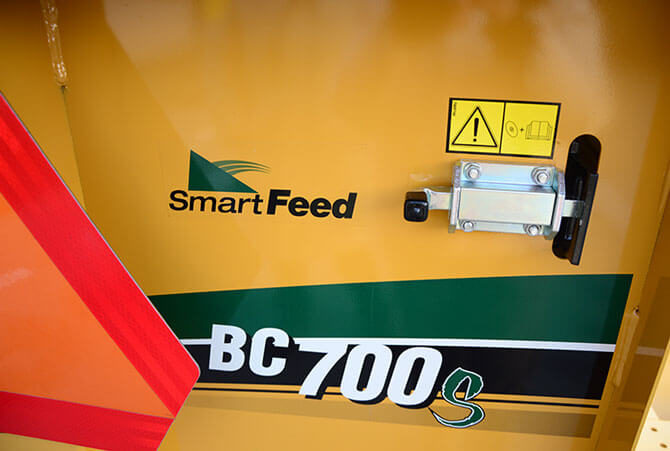

SmartFeed control system that maximizes operator productivity and minimizes strain on vital engine parts.

3

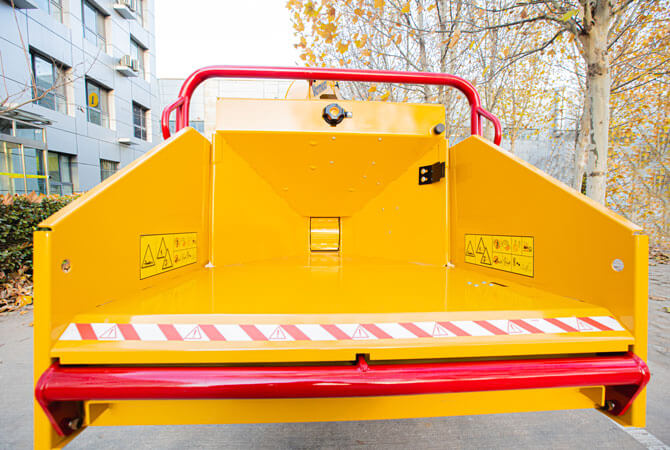

Large infeed opening of 8 in x 6 in (20.3 cm x 15.2 cm) that makes feeding of irregular material efficient and minimizes the amount of saw cuts needed prior to feeding the chipper.

4

Centrifugal clutch that helps prevent belt slippage when engaging the clutch, minimizing maintenance.

5

The bottom feed stop bar is strategically located for the operator to strike the bar and shut off the feed mechanism.

Units: Metric Imperial

SPECIFICATIONS

GENERAL DIMENSIONS AND WEIGHTS

Length - Table Down, Tongue Extended

133 in 337.8 cm
Weight - Engine Option One

1800 lbs 816.5 kg
Height

102 in 259.1 cm
Width

71 in 180.3 cm
Length - Feed Table Up, Tongue In

113 in 287 cm
Weight (without winch and hydraulic jack)

1800 lbs 816.5 kg

ENGINE - OPTION ONE

Make and Model

Perkins 403D-11 Perkins 403D-11
Gross Horsepower (Maximum)

25 hp 18.6 kw
Fuel Tank Capacity

6 gal 22.7 L
Torque (Max)

49.3 ft-lb 66.8 Nm
Recommended Oil

API CH4/SJ /ACEA E5 API CH4/SJ /ACEA E5
Number of Cylinders

3 3
Fuel Type

Diesel Diesel

ENGINE - OPTION TWO

Number of Cylinders

2 2
Fuel Tank Capacity

6 gal 22.7 L
Make and Model

Kohler ECH740 Kohler ECH740
Gross Horsepower (Maximum)

25 hp 18.6 kw
Recommended Oil

Kohler Oil or API CH4/SJ Kohler Oil or API CH4/SJ
Torque (Max)

41.7 ft-lb 56.5 Nm
Fuel Type

Gasoline Gasoline

FEED SYSTEM

Number of Knives

2 2
Feed Roller Dimension

10 in (25.4 cm) 10 in (25.4 cm)
Motor Manufacturer

White Hydraulics White Hydraulics
Number of Feed Roller Motors

1 1
Feed Roller Orientation

Horizontal Horizontal
Number of Feed Rollers

1 1
Feed Roller Clamp Type

Spring/feed roller weight Spring/feed roller weight
Pinch Point - Distance to End of Feed Table

65.4 in 166.1 cm
Motor Displacement

14.2 14.2
Infeed Hopper Height

22.1 in 56.1 cm
Number of Knives (2)

2 2
Feed Roller Minimum Distance to Drum

4 in 10.2 cm
Weight of Feed Roller

100 lbs 45.4 kg
Infeed Table Length

30.2 in 76.7 cm
Infeed Throat Capacity

6 in x 8 in (15.2 cm x 20.3 cm) 6 in x 8 in (15.2 cm x 20.3 cm)
Feed Speed

49.4 ft/min 49.4 ft/min
Infeed Table Width

41.2 in 104.6 cm
Distance from Feed Table to Ground

28.1 in 71.4 cm
Feed Roller Clamp Load

525 lbs 238.1 kg

SAFETY SYSTEM

Four Position Feed Control Bar

Standard Standard
Bottom Feed Stop Bar

Standard Standard
Green Hold to Run Button

Standard Standard
Reset Method

Dual green hold-to-run buttons Dual green hold-to-run buttons
Diameter

2 in 5.1 cm
Bottom Feed Stop Bar Diameter

2 in 5.1 cm
Material Thickness

.1 in .3 cm
Positions

Four position: E-stop, Forward, Stop, Reverse
Bottom Feed Stop Bar Material Thickness

12 in (30.48 cm) 12 in (30.48 cm)

DRUM/DISC CUTTING SYSTEM

Bedknife Size

Horizontal: 4 in x 8.6 in (10.2 cm x 21.9 cm); Vertical: 4 in x 5.8 in (10.2 cm x 14.6 cm)
Weight With Shaft

176 lbs 79.8 kg
Air Flow

5000 cfm 5000 cfm
Thickness

1.3 in 3.2 cm
Diameter

23.9 in 60.7 cm
Fixture Method

Welded Welded
Number of Knives

2 2
Safety Lock - Number of Positions

2 2
Speed

1748 rpm 1748 rpm
Replaceable Threaded Knife Block

Yes Yes
Useable Edges

2 2
Width

8 in 20.3 cm
Bedknife Material

ASTM A572 Grade 50 ASTM A572 Grade 50
Material Capacity

6 in 15.2 cm
Knife Thickness

.6 in 1.5 cm
Material

A8 chipper steel A8 chipper steel

CUTTER DRIVE COMPONENTS - ENGINE OPTION ONE

Manufacturer

Linkbelt Linkbelt
Dynamic Capacity

5640 lbs 2558.3 kg
Belt Idler/Tensioner

Spring-loaded adjustable idler Spring-loaded adjustable idler
Belt Type

2-band 5-V profile Aramid 2-band 5-V profile Aramid
Bore

1.5 in 3.8 cm
Type

Flange-mounted ball type, self-aligning
Number of Bearings

2 2
Static Capacity

4460 lbs 2023 kg

DISCHARGE SYSTEM

Rotation Type

Manual Manual
Rotational Lock

Standard latch Standard latch
Chute Rotation Angle

270 deg 270 deg
Deflector Thickness

.1 in .3 cm
Chute Height

97.2 in 246.9 cm
Side Wall Thickness

.1 in .3 cm
Bottom Thickness

.1 in .3 cm
Top Thickness

.1 in .3 cm

HYDRAULIC SYSTEM

Filtration Method

Return flow filtration, 10 micron Return flow filtration, 10 micron
System relief pressure

2500 psi 172.4 bar
Tank capacity

6.8 gal 25.7 L
Recommended Oil Type

Vermeer VMF Gold Vermeer VMF Gold
System Type

Open center Open center
Pump Flow at Maximum RPM

3.8 gpm 14.4 L/min

ELECTRICAL SYSTEM

Switches

Hold-to-run, sensitivity selector Hold-to-run, sensitivity selector
Battery

Group 26, 400 CCA Group 26, 400 CCA
Standard Gauges

Hour meter Hour meter
System Voltage

12 volt 12 volt
Controller

Vermeer ACS CB02 Vermeer ACS CB02

CHASSIS

Fender Description

Steel bolt-on Steel bolt-on
Hitch Type

Pintle (o coupler) Pintle (o coupler)
Frame Description

3/16 in (.5 cm) ASTM A1011 steel 3/16 in (.5 cm) ASTM A1011 steel
Tires - Option One

185/70R13 185/70R13
Axle/Suspension

Torsion axle Torsion axle
Capacity - Option One

3307 lb (1500 kg) 3307 lb (1500 kg)
Wheels - Option One

4.5Jx13, ET=25 4.5Jx13, ET=25
Trailer Light Type

LED LED
Brake Type

Parking brake only Parking brake only
