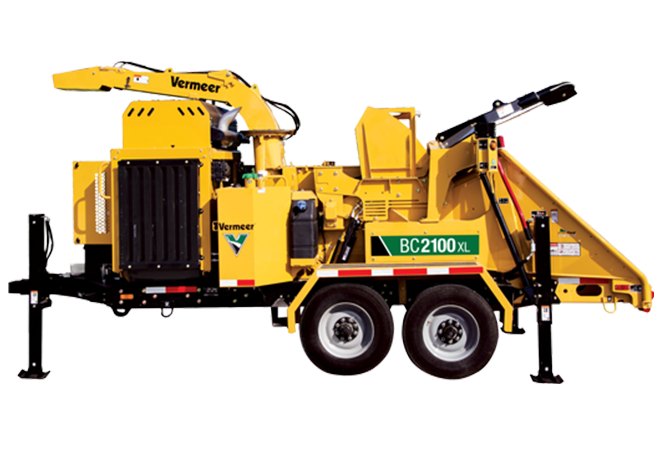

BC2100XL Tier 3 Brush Chipper
  • Maximum productivity
  • More distance
REQUEST OFFER

Let us help you get the job done efficiently and effectively!

BC2100XL Tier 3 Brush Chipper
BC2100XL Tier 3 Brush Chipper - Image 2

Features & Benefits

1

SmartFeed system monitors engine rpm and senses jams, automatically stopping or reversing the rollers as needed.

2

60.5-in (153.7-cm) long feed table for extra distance and exclusive bottom feed stop bar system.

Units:

SPECIFICATIONS

  • Tongue Weight - Engine Option One
    2410 lbs
  • Length - Table Down, Tongue Extended
    259 in
  • Weight - Engine Option One
    16800 lbs
  • Sound Power
    86 dB(A)
  • Height
    116.5 in
  • Width
    95.8 in
  • Length - Feed Table Up, Tongue In
    235 in
  • Oil Filter
    Spin-on
  • Make and Model
    Tier 3 Cummins QSB 6.7 L
  • Clutch Drive Engagement
    Clutchless PTO
  • Maximum Angle of Continuous Operation
    30 deg
  • Fan
    26" (66 cm) suction
  • Coolant Capacity (Engine and Radiator)
    7.3 gal
  • Gross Horsepower (Maximum)
    275 hp
  • Cooling Medium
    Liquid
  • Max Fuel Consumption
    15.6 gph
  • Fuel Tank Capacity
    65 gal
  • Torque (Max)
    730 ft-lb
  • Alternator
    95 amp Delco-Remy
  • Recommended Oil
    API CH-4/SJ
  • Air Cleaner
    Two stage dry-fleet guard opti air 1300 series
  • Number of Cylinders
    6
  • Oil Volume with Filter
    16 qt
  • Fuel Type
    Low sulfur diesel
  • Feed Roller Dimension
    19" (48.3 cm)
  • Motor Manufacturer
    Eaton
  • Feed Roller Orientation
    Horizontal
  • Number of Feed Rollers
    2
  • Feed Roller Dimension (Two)
    11" (27.9 cm)
  • Feed Roller Clamp Type
    Hydraulic
  • Pinch Point - Distance to End of Feed Table
    60.5 in
  • Motor Displacement
    4.9 CID
  • Infeed Hopper Height
    38.5 in
  • Number of Knives (2)
    2
  • Feed Roller Minimum Distance to Drum
    10 in
  • Weight of Feed Roller
    972 lbs
  • Infeed Table Length
    60.5 in
  • Infeed Throat Capacity
    40" x 24" (102 cm x 61 cm)
  • Feed Speed
    100 ft/min
  • Infeed Table Width
    72 in
  • Infeed Table Material Thickness
    .4 in
  • Distance from Feed Table to Ground
    30.8 in
  • Feed Roller Clamp Load
    3500 lbs
  • Four Position Feed Control Bar
    Standard
  • Bottom Feed Stop Bar
    Standard
  • Green Hold to Run Button
    Standard
  • Reset Method
    Green hold to run button
  • Positions
    Four positions: emergency stop, forward, neutral, and reverse
  • Bedknife - Number of Useable Edges
    4
  • Bedknife Size
    3" x 27.5" (7.6 cm x 69.9 cm)
  • Weight With Shaft
    1500 lbs
  • Air Flow
    3600 cfm
  • Thickness
    .5 in
  • Diameter
    36 in
  • Fixture Method
    Weld-on
  • Number of Paddles
    4
  • Number of Knives
    4
  • Knife Size
    5" x 14" (12.7 cm x 35.6 cm)
  • Safety Lock - Number of Positions
    4
  • Speed
    1084 rpm
  • Replaceable Threaded Knife Block
    Yes
  • Number of Bolts/Knife
    6
  • Useable Edges
    2
  • Width
    28 in
  • Material Capacity
    21 in
  • Knife Thickness
    .6 in
  • Material
    A8 chipper steel
  • Rotation Type
    Hydraulic
  • Chute Rotation Angle
    270 deg
  • Deflector Thickness
    .1 in
  • Chute Height
    116 in
  • Side Wall Thickness
    .1 in
  • Bottom Thickness
    .1 in
  • Top Thickness
    .2 in
  • Filtration Method
    10 micron return, 100 mesh suction
  • Oil Cooler
    Yes
  • Auto Reverse PSI
    2550 psi
  • Directional Control
    Yes
  • System relief pressure
    2750 psi
  • Tank capacity
    24 gal
  • Recommended Oil Type
    Vermeer Hy-Power 68
  • System Type
    Open center
  • Pump Flow at Maximum RPM
    13 gpm
  • Radio Remote Control
    Engine speed, discharge chute, forward, stop, reverse feed, SmartCrush down pressure level, SmartFeed droop setting and engine stop
  • Switches
    Engine speed, SmartFeed droop (non-remote only)
  • Battery
    2 - 950 CCA
  • Standard Gauges
    Tachometer, hour meter, trip meter, coolant temperature, engine oil pressure, battery voltage, engine fault code, engine shutdown light and engine fault warning light
  • System Voltage
    12 volts
  • Controller
    C148
  • Shutdown System
    Coolant temperature, intake manifold temperature, oil pressure
  • Fender Description
    Bolt-on
  • Hitch Type
    3 " (7.6 cm) pintle
  • Frame Description
    2.5" x 8.75" (6.4 cm x 22.2 cm) C-channel
  • Toolbox Description
    Lockable
  • Tongue Extension
    AUS currently does not extend
  • Tongue Description
    2.5" x 4.5" x .38" (6.4 cm x 11.4 cm x 1 cm)
  • Tires - Option One
    235/75R17.5 load range J
  • Axle/Suspension
    Load-sharing leaf spring 17,636 lb (8,000 kg)
  • Capacity - Option One
    17,636 lb (8,000 kg)
  • Manufacturer - Option One
    Rogers Willex
  • Type - Option One
    Load-sharing leaf spring
  • Wheels - Option One
    17.5 in x 6.75 in (44.5 cm x 17.1 cm) BC of 6 on 8.1 in (20.5 cm)
  • Trailer Light Type
    LED
  • Brake Type
    Air, ABS
  • Winch Rope
    9/16" (1.4 cm) double-braided DNEEMA Core
  • Rope Length
    150 ft
  • Winch Controls
    Rope in and out; winch boom up and down
  • Rope Choker
    Standard Vermeer choker design
  • Rope Line Pull
    4000 lbs
  • Winch Boom Structure
    Welded structure
  • Winch Relief System
    1900 psi
  • Special Paint
    Optional
  • Extended Warranty
    Optional
  • Preventive Maintenance
    Optional
  • Adjustable Height Discharge Chute
    Optional
  • Remote Control
    Optional
  • Hydraulic Outriggers
    Optional
