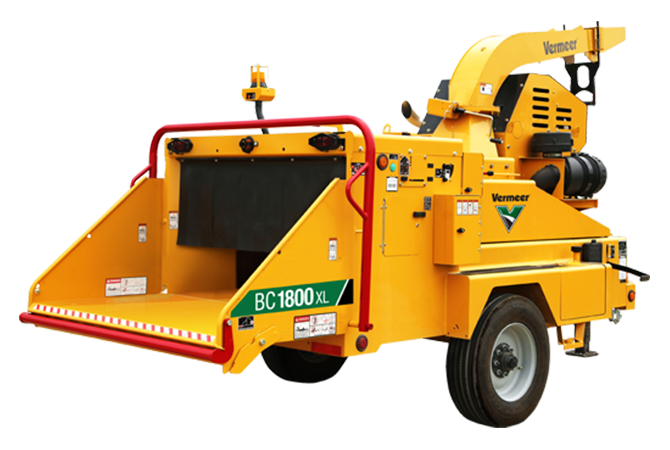

BC1800XL Tier 3 Brush Chipper

Maximum productivity
More distance
Specially engineered feed roller design

REQUEST OFFER

Let us help you get the job done efficiently and effectively!

Features & Benefits

1

SmartFeed system monitors engine rpm and senses jams, automatically stopping or reversing the rollers as needed.

2

62.5-in (158.8-cm) long feed table for extra distance and exclusive bottom feed stop bar system.

3

Vertical feed rollers, designed with helical cleats that hold material more firmly, reduces vibration and structural loading to the rear of the machine.

Units: Metric Imperial

SPECIFICATIONS

GENERAL DIMENSIONS AND WEIGHTS

Tongue Weight - Engine Option One

900 lbs 408.2 kg
Length - Table Down, Tongue Extended

231 in 586.7 cm
Weight - Engine Option One

8740 lbs 3964.4 kg
Sound Power

127 dB(a) 127 dB(a)
Height

107 in 271.8 cm
Width

78.5 in 199.4 cm
Sound Power - Engine Option Two

124 dB(a) 124 dB(a)
Length - Feed Table Up, Tongue In

177 in 449.6 cm
Weight - Engine Option Two

8740 lbs 3964.4 kg
Weight - Engine Option Three

8740 lbs 3964.4 kg
Horsepower Options

110, 130, and 170 hp 110, 130, and 170 hp

ENGINE - OPTION ONE

Oil Filter

Spin-on Spin-on
Make and Model

Cummins QSB4.5 Tier 3 Cummins QSB4.5 Tier 3
Clutch Drive Engagement

Auto Clutch Auto Clutch
Fan

26 " (66.04 cm) suction 26 " (66.04 cm) suction
Clutch Type

13 " (33.02 cm) spring loaded auto clutch
Gross Horsepower (Maximum)

110 hp 82 kw
Cooling Medium

Liquid Liquid
Fuel Tank Capacity

35 gal 132.5 L
Torque (Max)

360 ft-lb 488.1 Nm
Alternator

65 amp 65 amp
Air Cleaner

Two stage dry Two stage dry
Number of Cylinders

4 4
Fuel Type

Diesel Diesel

ENGINE - OPTION TWO

Number of Cylinders

4 4
Fuel Tank Capacity

35 gal 132.5 L
Make and Model

Cummins QSB4.5 Tier 3 Cummins QSB4.5 Tier 3
Clutch Drive Engagement

Auto Clutch Auto Clutch
Cooling Medium

Liquid Liquid
Clutch Type

13 " (33.02 cm) spring loaded auto clutch
Oil Filter

Spin-on Spin-on
Gross Horsepower (Maximum)

130 hp 96.9 kw
Air Cleaner

Two stage dry Two stage dry
Fan

26 " (66.04 cm) suction 26 " (66.04 cm) suction
Torque (Max)

459 ft-lb 622.3 Nm
Alternator

65 amp 65 amp
Fuel Type

Diesel Diesel

ENGINE - OPTION THREE

Oil Filter

Spin-on Spin-on
Fuel Tank Capacity

35 gal 132.5 L
Torque (Max)

460 ft-lb 623.7 Nm
Number of Cylinders

4 4
Air Cleaner

Fleet Guard Two Stage Dry Fleet Guard Two Stage Dry
Clutch Drive Engagement

Auto Clutch Auto Clutch
Cooling Medium

Liquid Liquid
Alternator

Delco 11si Delco 11si
Coolant Capacity (Engine and Radiator)

8 gal 30.3 L
Recommended Oil

API CH-4/ST API CH-4/ST
Make and Model

Cummins CSB4.5 Tier 3 Cummins CSB4.5 Tier 3
Fan

26 " (66.04 cm) suction 26 " (66.04 cm) suction
Gross Horsepower (Maximum)

170 hp 126.8 kw
Clutch Type

Clutchless PTO Clutchless PTO
Oil Volume with Filter

17 qt 16.1 L
Fuel Type

Diesel Diesel

FEED SYSTEM

Number of Knives

9 9
Feed Roller Dimension

23.5 " x 18 " (59.69 cm x 45.72 cm) 23.5 " x 18 " (59.69 cm x 45.72 cm)
Motor Manufacturer

White Hydraulics White Hydraulics
Number of Feed Roller Motors

2 2
Feed Roller Orientation

Vertical Vertical
Number of Feed Rollers

2 2
Feed Roller Dimension (Two)

23.5 " x 18 " (59.69 cm x 45.72 cm) 23.5 " x 18 " (59.69 cm x 45.72 cm)
Weight of Feed Roller (Option Two)

116 lbs 52.6 kg
Feed Roller Clamp Type

Spring Spring
Pinch Point - Distance to End of Feed Table

62.5 in 158.8 cm
Motor Displacement

32.7 32.7
Infeed Hopper Height

24 in 61 cm
Number of Knives (2)

9 9
Weight of Feed Roller

116 lbs 52.6 kg
Infeed Table Length

32 in 81.3 cm
Infeed Throat Capacity

20 " x 24 " (50.8 cm x 60.96 cm) 20 " x 24 " (50.8 cm x 60.96 cm)
Feed Speed

118 ft/min 118 ft/min
Infeed Table Width

20 in 50.8 cm
Infeed Table Material Thickness

.2 in .5 cm
Distance from Feed Table to Ground

30.5 in 77.5 cm
Feed Roller Clamp Load

380 lbs 172.4 kg

SAFETY SYSTEM

Four Position Feed Control Bar

Standard Standard
Bottom Feed Stop Bar

Standard Standard
Green Hold to Run Button

Standard Standard
Reset Method

Green hold to run button Green hold to run button
Diameter

2 in 5.1 cm
Reduced Sensitivity

12 deg 12 deg
Normal Sensitivity

22 deg 22 deg
Actuation Force (BFSB)

34 lbs 15.4 kg
Actuation Force

34 lbs 15.4 kg
Bottom Feed Stop Bar Diameter

2 in 5.1 cm
Material Thickness

11 in 27.9 cm
Positions

Four position: Emergency stop, Forward, Neutral, and Reverse
Bottom Feed Stop Bar Material Thickness

11 GA 11 GA

DRUM/DISC CUTTING SYSTEM

Bedknife - Number of Useable Edges

4 4
Bedknife Size

3 " x 30.25 " (7.62 cm x 76.84 cm) 3 " x 30.25 " (7.62 cm x 76.84 cm)
Weight With Shaft

850 lbs 385.6 kg
Air Flow

3200 cfm 3200 cfm
Thickness

.4 in 1 cm
Diameter

36 in 91.4 cm
Fixture Method

Weld on Weld on
Number of Paddles

4 4
Number of Knives

4 4
Knife Size

.625 " x 5 " x 10 " (1.59 cm x 12.7 cm x 25.4 cm)
Safety Lock - Number of Positions

4 4
Speed

1100 RPM 1100 RPM
Replaceable Threaded Knife Block

Yes Yes
Number of Bolts/Knife

5 5
Useable Edges

2 2
Width

26.5 in 67.3 cm
Bedknife Thickness

1.5 in 3.8 cm
Bedknife Material

1018 1018
Material Capacity

19 in 48.3 cm
Knife Thickness

.6 in 1.6 cm
Material

A8 chipper steel A8 chipper steel

CUTTER DRIVE COMPONENTS - ENGINE OPTION ONE

Manufacturer

Linkbelt Linkbelt
Dynamic Capacity

31400 lbs 14242.8 kg
Belt Idler/Tensioner

Spring loaded Spring loaded
Belt Type

5V 5V
Bore

2.4 in 6.2 cm
Type

Spherical roller Spherical roller
Number of Bearings

2 2
Static Capacity

53500 lbs 24267.2 kg

CUTTER DRIVE COMPONENTS - ENGINE OPTION TWO

Manufacturer

Linkbelt Linkbelt
Number of Bearings

2 2
Belt Idler/Tensioner

Spring tensioned Spring tensioned
Bore

2.9 in 7.5 cm
Belt Type

5V 5V
Type

Spherical roller Spherical roller
Dynamic Capacity

41800 lbs 18960.2 kg
Static Capacity

71500 lbs 32431.9 kg

DISCHARGE SYSTEM

Rotation Type

Worm gear with rotational lock Worm gear with rotational lock
Rotational Lock

Self lock Self lock
Chute Rotation Angle

270 deg 270 deg
Deflector Thickness

.1 in 0.3 cm
Chute Height

110 in 279.4 cm
Side Wall Thickness

.1 in 0.3 cm
Bottom Thickness

270 in 685.8 cm
Top Thickness

.1 in .2 cm

HYDRAULIC SYSTEM

Filtration Method

3 micron return, 100 micron suction 3 micron return, 100 micron suction
Oil Cooler

No No
Auto Reverse PSI

2400 psi 165.5 bar
Directional Control

Yes Yes
Flow Control

Yes Yes
System relief pressure

2500 psi 172.4 bar
Tank capacity

12 gal 45.4 L
Recommended Oil Type

Vermeer VMF Vermeer VMF
System Type

Open center Open center
Pump Flow at Maximum RPM

7.8 gpm 29.6 L/min

ELECTRICAL SYSTEM

Radio Remote Control

No No
Switches

Throttle, ignition, lower feed bar sensitivity, chute rotate, chute deflector
Battery

950 CCA 950 CCA
Standard Gauges

Tach/hourmeter (includes toggle to obtain oil pressure, water temp, engine error codes) fuel gauge
System Voltage

12 volt 12 volt
Display

LED LED
Controller

Vermeer ACS Vermeer ACS
Shutdown System

High temp, low pressure High temp, low pressure

CHASSIS

Fender Description

Integrated Integrated
Hitch Type

Pintle Pintle
Frame Description

C Channel C Channel
Toolbox Description

Standard Standard
Tongue Extension

Same as 1000 Same as 1000
Tongue Description

4 " x 4 " x .375 " (10.16 cm x 10.16 cm x 0.95 cm)
Manufacturer - Option Two

Dexter Dexter
Capacity - Option Two

8,000 lb (3628.7 kg) 8,000 lb (3628.7 kg)
Axle/Suspension - Option Two

Torflex Torflex
Tires - Option One

235/75R17.5 load range J 235/75R17.5 load range J
Axle/Suspension

Torflex Torflex
Wheels - Option Two

Eight hole 17.5 x 6.75 Eight hole 17.5 x 6.75
Tires - Option Two

235/75R 17.5 235/75R 17.5
Capacity - Option One

10,000 10,000
Manufacturer - Option One

Dexter Dexter
Type - Option One

Rubber torsional Rubber torsional
Wheels - Option One

17.5 " x 6.75 " BC of 8 on 6.5 " (44.45 cm x 17.15 cm BC of 8 on 16.51 cm)
Type - Option Two

Rubber Torsional Rubber Torsional
Trailer Light Type

Incandesent Incandesent
Brake Type

Electric Electric
