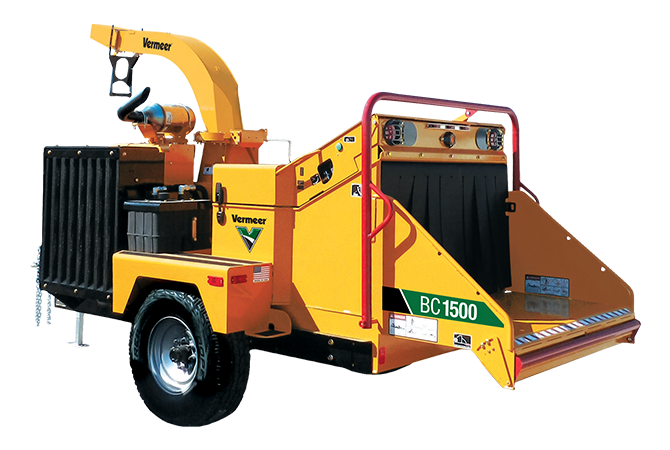

The Vermeer BC1500 brush chipper uses a precision-balanced 22.5-in (57.2-cm) drum with two 5-in x 8-in (12.7-cm x 20.3-cm) A8 double-sided knives to chip through material up to 15 in (38.1 cm). Powered by a Tier 4i (Stage IIIB) 130-hp (97-kW) Cummins diesel engine, the BC1500 can handle the toughest of material with ease.
BC1500 Tier 4i (Stage IIIB) Brush Chipper
REQUEST OFFER
Let us help you get the job done efficiently and effectively!
Features & Benefits
1
The BC1500 introduces vertical feed roller technology to help aid in machine loading and the feeding of adverse materials.
2
An optional winch can be added to aid in transporting large material to the infeed table, helping reduce manual material handling.
3
The optional Tree Commander™ remote control enhances jobsite productivity by enabling remote operation of brush chipper functions and can be conveniently attached to the operator’s belt or mounted on a Vermeer mini skid steer.
4
The EcoIdle™ engine control system reduces engine speed to a preset lower rpm after one to five minutes of inactivity, saving fuel and reducing jobsite noise.
5
SmartFeed, a patented feed-sensing control system, boosts operator productivity and reduces engine strain by monitoring engine rpm and controlling feed rollers.
6
The patented bottom feed stop bar is strategically positioned so the operator can strike it to shut off the feed mechanism.
Units:
SPECIFICATIONS
-
Tongue Weight - Engine Option One947 lbs
-
Length - Table Down, Tongue Extended217 in
-
Length with Winch (Additional)192 in
-
Weight - Engine Option One6907 lbs
-
Height104 in
-
Width86 in
-
Length - Feed Table Up, Tongue In179 in
-
Oil FilterSpin-on
-
Make and ModelCummins QSB4.5 Turbo Tier 4i (Stage IIIB)
-
Clutch Drive EngagementManual
-
Fan24" (61 cm) suction
-
Coolant Capacity (Engine and Radiator)7.1 gal
-
Clutch TypeAutomotive-style
-
Gross Horsepower (Maximum)130 hp
-
Cooling MediumLiquid
-
Max Fuel Consumption7 gph
-
Fuel Tank Capacity45 gal
-
Torque (Max)459 ft-lb
-
Alternator65 amps
-
Recommended OilAPI CC/CD
-
Air Cleaner2-stage dry with safety element
-
Number of Cylinders4
-
Oil Volume with Filter15.5 qt
-
Fuel TypeDiesel
-
Number of Knives12
-
Feed Roller Dimension20.9" (53.1 cm) diameter
-
Motor ManufacturerWhite
-
Number of Feed Roller Motors2
-
Feed Roller OrientationVertical
-
Number of Feed Rollers2
-
Feed Roller Clamp TypeSpring
-
Pinch Point - Distance to End of Feed Table67.4 in
-
Motor Displacement28.3 cu. in (468.8 cu. cm)
-
Infeed Hopper Height32 in
-
Feed Roller Minimum Distance to Drum1.3 in
-
Weight of Feed Roller120 lbs
-
Infeed Table Length30.1 in
-
Infeed Throat Capacity15" x 20" (38.1 cm x 50.8 cm)
-
Feed Speed122 ft/min
-
Infeed Table Width55.4 in
-
Infeed Table Material Thickness.2 in
-
Distance from Feed Table to Ground27.2 in
-
Feed Roller Clamp Load300 lbs
-
Four Position Feed Control BarStandard
-
Bottom Feed Stop BarStandard
-
Green Hold to Run ButtonStandard (one on each side)
-
Reset MethodGreen Hold-to-Run button
-
Diameter2 in
-
Reduced Sensitivity12 deg
-
Normal Sensitivity22 deg
-
Actuation Force (BFSB)34 lbs
-
Actuation Force34 lbs
-
Bottom Feed Stop Bar Diameter2 in
-
Material Thickness.1 in
-
Positions4: E-stop, forward, neutral, reverse
-
Bottom Feed Stop Bar Material Thickness11 GA
-
Bedknife - Number of Useable Edges2
-
Bedknife Size2.5" (6.4 cm)
-
Weight With Shaft540 lbs
-
Air Flow4600 cfm
-
Thickness.4 in
-
Diameter22.5 in
-
Fixture MethodWeld-on
-
Number of Paddles5
-
Number of Knives2
-
Knife Size.625" x 5" x 8" (1.6 cm x 12.7 cm x 20.3 cm)
-
Safety Lock - Number of Positions2
-
Speed1980 rpm
-
Replaceable Threaded Knife Blockyes
-
Number of Bolts/Knife3
-
Useable Edges2
-
Width22 in
-
Bedknife Thickness1.5 in
-
Bedknife MaterialHRLC Steel
-
Material Capacity15 in
-
Knife Thickness.6 in
-
MaterialA8 Chipper steel
-
ManufacturerLinkbelt
-
Dynamic Capacity31400 lbs
-
Belt Idler/TensionerSpring-loaded
-
Belt Type5V
-
Bore2.4 in
-
TypeSpherical roller
-
Number of Bearings2
-
Static Capacity53500 lbs
-
Rotation TypeManual worm gear drive
-
Rotational LockSelf-locking gear set plus an additional steel plate rotation lock
-
Chute Rotation Angle270 deg
-
Deflector Thickness.1 in
-
Chute Height104 in
-
Side Wall Thickness.1 in
-
Bottom Thickness.1 in
-
Top Thickness.1 in
-
Filtration Method3 micron return, 100 micron suction
-
Oil CoolerNo
-
Auto Reverse PSI2650 psi
-
Directional ControlYes
-
Flow ControlYes
-
System relief pressure2800 psi
-
Tank capacity12 gal
-
Recommended Oil TypeVermeer VMF
-
System TypeOpen center
-
Pump Flow at Maximum RPM5.5 gpm
-
Radio Remote ControlNo
-
SwitchesDroop, sensitivity and Ecoldle toggle switches
-
Battery950
-
Standard GaugesTach/hourmeter (includes toggle to obtain oil pressure, water temp, engine error codes) fuel gauge
-
System Voltage12
-
DisplayLED
-
ControllerVermeer ACS
-
Shutdown SystemHigh temp, low pressure
-
Fender DescriptionBolt-on
-
Hitch TypePintle
-
Frame Description.25" (6 mm) Z channel, 7" (17.8 cm)
-
Toolbox DescriptionStandard
-
Tongue ExtensionExt. 18" (45.2 cm)
-
Tongue Description2.5" x 4.5" x .375" (6.4 cm x 11.4 cm x 1 cm)
-
Tires - Option OneLT 285/75R16 LR E
-
Axle/SuspensionTorsion
-
Capacity - Option One7000 lb (3175.1 kg)
-
Manufacturer - Option OneDexter
-
Type - Option OneRubber torsional
-
Wheels - Option One16" (40.6 cm)
-
Trailer Light TypeLED
-
Brake TypeElectric
-
Winch Rope7/16" (1.1 cm)
-
Rope Length150 ft
-
Winch ControlsForward, reverse, free spool
-
Winch Input Speed51 rpm
-
Rope Choker1/4" (6.4 mm) chain
-
Rope Line Pull2000 lbs
-
Winch Boom Structure.25 grade 50
-
Winch Relief System2500 psi
-
Special PaintOptional
-
Extended WarrantyOptional
-
Preventive MaintenanceOptional
