BC1000XL European Configuration Brush Chipper
  • A 55-kW (74-hp) Stage V Caterpillar ® diesel engine
  • Large infeed opening
  • Drum style chipper
REQUEST OFFER

Let us help you get the job done efficiently and effectively!

BC1000XL European Configuration Brush Chipper
BC1000XL European Configuration Brush Chipper - Image 2
BC1000XL European Configuration Brush Chipper - Image 3
BC1000XL European Configuration Brush Chipper - Image 4
BC1000XL European Configuration Brush Chipper - Image 5
BC1000XL European Configuration Brush Chipper - Image 6
BC1000XL European Configuration Brush Chipper - Image 7

Features & Benefits

1

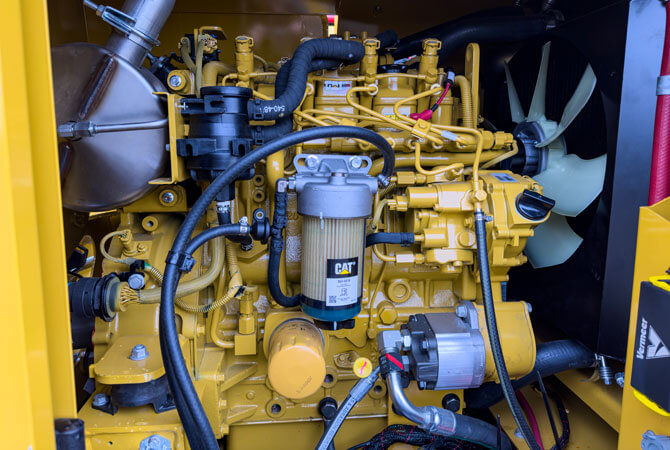

The 55-kW (74-hp) Stage V compliant Caterpillar diesel engine allows you not only to comply with emissions requirements but also gives you enough horsepower to meet your jobsite needs.

2

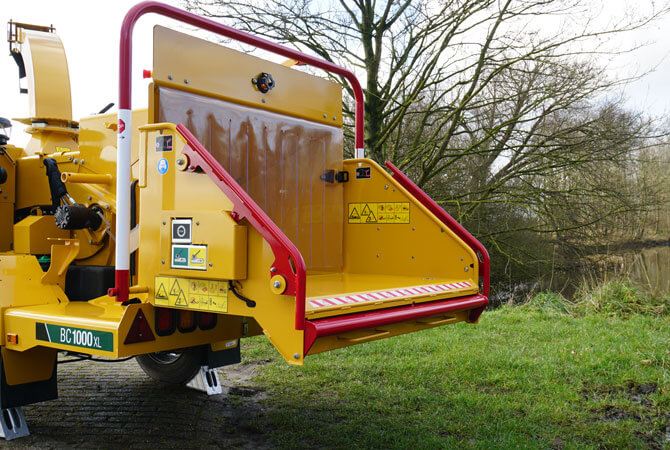

A large letterbox infeed opening at 44 cm x 30 cm (17,5 in x 12 in) helps boost productivity by reducing the need to trim material before feeding it into the chipper.

3

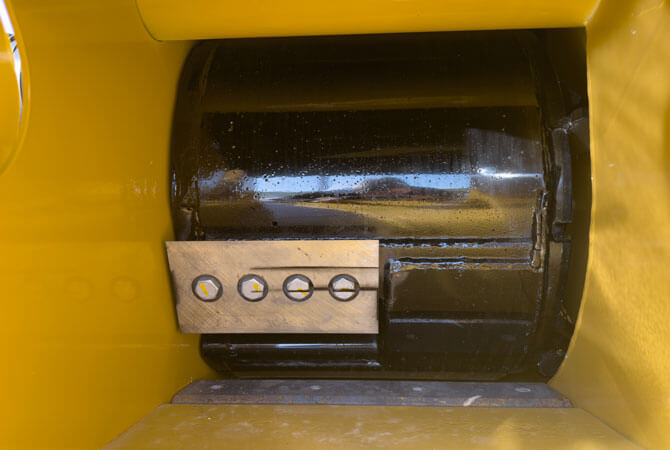

The Vermeer BC1000 brush chipper uses a precision-balanced drum with two A8 double-sided knives to chip through material up to 30 cm (12 in).

Units:

SPECIFICATIONS

  • Tongue Weight - Engine Option One
    310 lbs
  • Length - Table Down, Tongue Extended
    197 in
  • Weight - Engine Option One
    5360 lbs
  • Sound Power
    123 dB(A)
  • Height
    104 in
  • Width
    69 in
  • Length - Feed Table Up, Tongue In
    173 in
  • Horsepower Options
    74 hp (55 kW)
  • Weight (without winch and hydraulic jack)
    5360 lbs
  • Oil Filter
    Spin-on
  • Make and Model
    Caterpillar C2.2
  • Clutch Drive Engagement
    Belt tensioner
  • Maximum Angle of Continuous Operation
    35 deg
  • Fan
    15.5-in (39.4-cm) suction
  • Coolant Capacity (Engine and Radiator)
    2.4 gal
  • Clutch Type

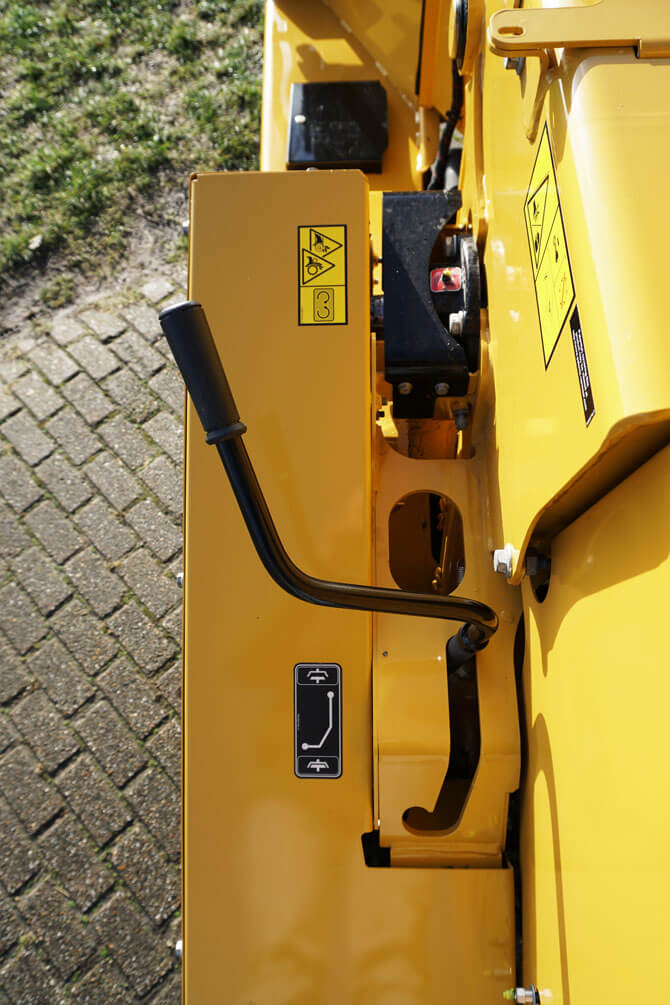

    Clutchless PTO
  • Gross Horsepower (Maximum)
    74 hp
  • Cooling Medium
    Liquid
  • Max Fuel Consumption
    4 gph
  • Fuel Tank Capacity
    25 gal
  • Torque (Max)
    200 ft-lb
  • Alternator
    85 amp
  • Recommended Oil
    10W-30
  • Air Cleaner
    2-stage dry with safety element
  • Number of Cylinders
    4
  • Oil Volume with Filter
    8.5 qt
  • Fuel Type
    Diesel
  • Number of Knives
    2

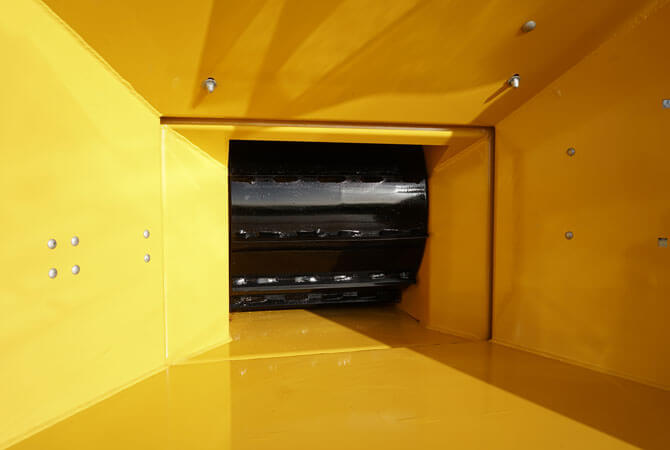

  • Feed Roller Dimension
    20 in x 17 in (51 cm x 43 cm)
  • Motor Manufacturer
    White
  • Number of Feed Roller Motors
    1
  • Feed Roller Orientation
    Horizontal
  • Number of Feed Rollers
    1
  • Pinch Point - Distance to End of Feed Table
    67 in
  • Motor Displacement
    28.3 in³ (464 cm³)
  • Infeed Hopper Height
    12 in
  • Feed Roller Minimum Distance to Drum
    1 in
  • Weight of Feed Roller
    400 lbs
  • Infeed Table Length
    32 in
  • Infeed Throat Capacity
    17 in x 12 in (43 cm x 30 cm)
  • Feed Speed
    103 ft/min
  • Infeed Table Width
    52 in
  • Infeed Table Material Thickness
    .2 in
  • Distance from Feed Table to Ground
    32 in
  • Feed Roller Clamp Load
    350 lbs
  • Bottom Feed Stop Bar
    Standard
  • Reset Method
    Forward feed paddle, twist release E-stop button
  • Normal Sensitivity
    12 deg
  • Actuation Force (BFSB)
    34 lbs
  • Bottom Feed Stop Bar Diameter
    2 in
  • Bottom Feed Stop Bar Material Thickness
    11 ga (2.9 mm)
  • Bedknife - Number of Useable Edges
    4
  • Bedknife Size
    3.5 in x 17 in (8.9 cm x 44 cm)
  • Weight With Shaft
    460 lbs
  • Thickness
    .4 in
  • Diameter
    20 in
  • Fixture Method
    Weld-on
  • Number of Paddles
    5
  • Number of Knives
    2
  • Knife Size
    0.63 in x 4.5 in x 9 in (1.6 cm x 11 cm x 23 cm)
  • Safety Lock - Number of Positions
    2
  • Speed
    2150 rpm
  • Replaceable Threaded Knife Block
    Yes
  • Number of Bolts/Knife
    4
  • Useable Edges
    2
  • Width
    20 in
  • Bedknife Thickness
    1 in
  • Bedknife Material
    1018 steel
  • Material Capacity
    12 in
  • Knife Thickness
    .6 in
  • Material
    A8 chipper steel
  • Manufacturer
    Linkbelt
  • Dynamic Capacity
    31400 lbs
  • Belt Idler/Tensioner
    Yes
  • Belt Type
    V-belt, five ribs
  • Bore
    2.4 in
  • Type
    Spherical rollers
  • Number of Bearings
    2
  • Static Capacity
    53500 lbs
  • Rotation Type
    Manual
  • Rotational Lock
    Yes
  • Chute Rotation Angle
    270 deg
  • Chute Height
    104 in
  • Filtration Method
    10-micron return; 100-micron suction
  • Oil Cooler
    No
  • Directional Control
    Yes
  • Flow Control
    No
  • System relief pressure
    2800 psi
  • Tank capacity
    7 gal
  • Recommended Oil Type
    Vermeer HyPower 68
  • System Type
    Tandem center
  • Pump Flow at Maximum RPM
    2.4 gpm
  • Radio Remote Control
    No
  • Switches
    Feed stop bars, infeed control paddles, clutch engage and E-stop buttons
  • Battery
    Group 31; 660 CCA
  • Standard Gauges
    Multi-functional display
  • System Voltage
    12V
  • Display
    Multi-functional display
  • Controller
    PowerCore MPC-12
  • Shutdown System
    Yes
  • Fender Description
    Bolt-on steel
  • Hitch Type
    Ball: 2 in (5 cm)
  • Frame Description
    7-in (17.78-cm) Z channel; 0.25-in (0.64-cm) thickness
  • Tires - Option One
    215/75 R17.5 135L
  • Axle/Suspension
    Torsion
  • Capacity - Option One
    5500 lb (2500 kg)
  • Manufacturer - Option One
    Knott
  • Type - Option One
    Rubber torsional
  • Wheels - Option One
    17.5 in (44.5 cm)
  • Trailer Light Type
    LED
  • Brake Type
    Overrun device
  • Special Paint
    Optional
  • Extended Warranty
    Optional
  • Preventive Maintenance
    Optional
